AAAC Conductor DIN 48201-6

AAAC Cable is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. aaac conductors suppliers chinese companies making aaac conductor LEAVE MESSAGE SEND E-MAIL

Leave Message Send E-mail

CategoryAAAC Conductor-All Aluminum Alloy Conductor

SourceQZ Cable Group

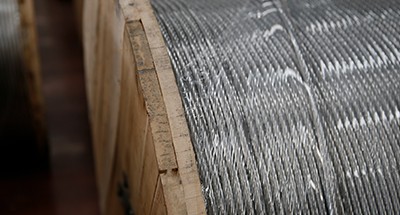

Product Images

Product Overview

Application

Conductor AAAC has been widely used in transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist. Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio; affords better sag characteristics. Aluminum alloy gives AAAC higher resistance to corrosion than ACSR.

Structure

All Aluminum Alloy Conductors (AAAC) is made from aluminum magnesium-silicon alloy. These alloys ensure high electrical conductivity containing sufficient magnesium silicone to provide it superior mechanical properties after conduction. A AAC conductor has a enhanced corrosion resistance and improved strength to weight ratio and improved electrical conductivity than ACSR CONDUCTOR on equal diameter basis. All Aluminum Alloy Stranded Conductor should have alternating lay between each layer; the outer layer shall...

Technical Parameters

Specification Table 1

Nominal Area		Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Nominal	Teorical	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
mm^2	mm^2	No.×mm	mm	kg/km	KN	Ω/Km	A
16	15.89	7/1.70	5.1	43	4.44	2.0742	78
25	24.25	7/2.10	6.3	66	6.77	1.3593	102
35	34.36	7/2.50	7.5	94	9.6	0.9591	126

MORE

50	49.48	7/3.00	9	135	13.82	0.666	158
50	48.35	19/1.80	9	133	13.5	0.6849	156
70	65.81	19/2.10	10.5	181	18.38	0.5032	189
95	93.27	19/2.50	12.5	256	26.05	0.3551	234
120	116.99	19/2.80	14	322	32.68	0.2831	269
150	147.11	37/2.25	15.8	406	41.09	0.2256	309
185	181.62	37/2.50	17.5	500	50.73	0.1828	352
240	242.54	61/2.25	20.3	670	67.74	0.1371	420
300	299.43	61/2.50	22.5	827	83.63	0.111	477
400	400.14	61/2.89	26	1104	111.76	0.0831	568
500	499.83	61/3.23	29.1	1379	139.6	0.0665	649
625	626.2	91/2.96	32.6	1732	174.9	0.0531	742
800	802.09	91/3.35	36.9	2218	224.02	0.0415	857
1000	999.71	91/3.74	41.1	2767	279.22	0.0333	971

Scroll horizontally to review complete specification columns.

Request Full TDS

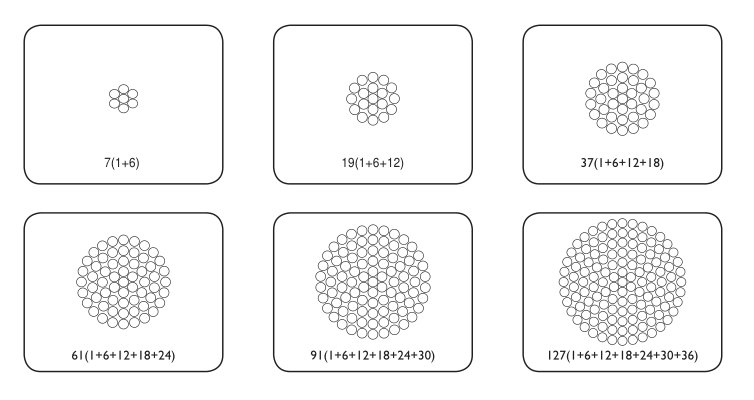

Structure & Technical Illustration

Structure

All Aluminum Alloy Conductors (AAAC) is made from aluminum magnesium-silicon alloy. These alloys ensure high electrical conductivity containing sufficient magnesium silicone to provide it superior mechanical properties after conduction. A AAC conductor has a enhanced corrosion resistance and improved strength to weight ratio and improved electrical conductivity than ACSR CONDUCTOR on equal diameter basis. All Aluminum Alloy Stranded Conductor should have alternating lay between each layer; the outer layer shall have a right hand direction.

Product image and technical reference.
