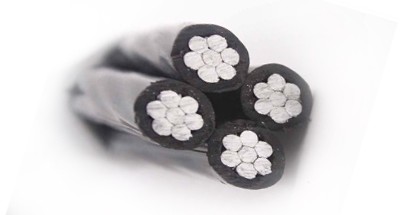

0.6/1KV CAAI/SELF-SUPPORT CABLE

Cable caai caai-s for overhead networks of secondary distribution of low-cost electrical energy, in urban and rural areas. with voltages up to 1000 V. LEAVE MESSAGE SEND E-MAIL 0.6/1 KV CAAI CAAI-S

Leave Message Send E-mail

CategoryAerial Bundled Cable

SourceQZ Cable Group

Product Images

Product Overview

Application:

For urban and rural overhead secondary distribution networks, with voltages up to 1000 V.

National standards

NTP-IEC 60228: Conductors of insulated cables. NTP 370.254: Cables for overhead distribution networks self-supporting XLPE insulated of rated voltages up to and including 0.6/1 kV. ASTM A 475: Zinc coated steel wire strand.

International standards

IEC 60228: Conductors of insulated cables. IEC 60811-1-1: Measurement of thickness and overall dimensions – Test for determining the mechanical properties. IEC 60811-1-2: Thermal ageing methods. IEC 60811-1-3: Water absorption tests – Shrinkage test. IEC 60811-2-1: Ozone resistance, hot set and mineral oil immersion tests. IEC 60811-4-1: Resistance to environmental stress cracking – Measurement of the melt flow index – Carbon black and/or mineral filler content measurement in polyethylene by direct combustion.

Technical Parameters

Specification Table 1

Name	No. of cores	Phase Cond. Cross Section [mm²]	Phase Cond. Diam. [mm]	Min. insulation thick. [mm]	Public lighting Neutral Cond. section[mm²]	Nom. outer diam.[mm]	Approx. weight [kg/km]
CAAI 0,6/1 kV 2×25+1×16+ND25 mm2	2	25	5.8	1.14	1 x 16 mm²	21.3	326
CAAI 0,6/1 kV 2×35+1×16+ND25 mm2	2	35	6.9	1.14	1 x 16 mm²	23	389
CAAI 0,6/1 kV 3×25+1×16+ND25 mm2	3	25	5.8	1.14	1 x 16 mm²	21.3	421
CAAI 0,6/1 kV 3×35+1×16+ND25 mm2	3	35	6.9	1.14	1 x 16 mm²	23	515

CAAI 0,6/1 kV 3×50+1×16+ND35 mm2	3	50	8.1	1.52	1 x 16 mm²	26.5	694
CAAI 0,6/1 kV 3×70+1×16+ND50 mm2	3	70	9.8	1.52	1 x 16 mm²	30.9	943
CAAI 0,6/1 kV 3×95+1×16+ND70 mm2	3	95	11.5	1.52	1 x 16 mm²	35.5	1245
CAAI 0,6/1 kV 3×120+1×16+ND70 mm2	3	120	12.8	2.03	1 x 16 mm²	39.3	1530

Specification Table 2

Name	No. of cores	Phase Cond. Cross Section [mm²]	Phase Cond. Diam. [mm]	Min. insulation thick. [mm]	Neutral Cond. section	Nom. outer diam.[mm]	Approx. weight [kg/km]
CAAI 0,6/1 kV 2×25+ND25 mm2	2	25	5.8	1.14	25	16.8	258
CAAI 0,6/1 kV 2×35+ND25 mm2	2	35	6.9	1.14	25	18.6	321
CAAI 0,6/1 kV 3×25+ND25 mm2	3	25	5.8	1.14	25	18.9	353
CAAI 0,6/1 kV 3×35+ND25 mm2	3	35	6.9	1.14	25	20.9	4487

CAAI 0,6/1 kV 3×50+ND35 mm2	3	50	8.1	1.52	35	25.4	627
CAAI 0,6/1 kV 3×70+ND50 mm2	3	70	9.8	1.52	50	29.4	876
CAAI 0,6/1 kV 3×95+ND70 mm2	3	95	11.5	1.52	70	33.6	1177
CAAI 0,6/1 kV 3×120+ND70 mm2	3	120	12.8	2.03	70	38	1463

Specification Table 3

Name	No. of cores	Phase Cond. Cross Section [mm²]	Phase Cond. Diam. [mm]	Min. insulation thick. [mm]	Public lighting	Neutral Cond. section [mm²]	Nom. outer diam. [mm]	Approx. weight [kg/km]
1×16+1×16+NA25 mm2	1	16	5	1,14	1 x 16	25	17,2	235
2×16+1×16+NA25 mm2	2	16	5	1,14	1 x 16	25	18,6	303
2×25+1×25+NA25 mm2	2	25	5,8	1,14	1 x 25	25	20,1	385
2×25+2×16+NA25 mm2	2	25	5,8	1,14	2 x 16	25	22,5	425

2×25+1×16+NA25 mm2	2	25	5,8	1,14	1 x 16	25	22,7	358
2×35+1×16+NA25 mm2	2	35	6,9	1,14	1 x 16	25	24,4	420
2×35+1×25+NA25 mm2	2	35	6,9	1,14	1 x 35	25	24,4	448
2×35+2×16+NA25 mm2	2	35	6,9	1,14	2 x 16	25	24,7	488
2×50+1×25+NA35 mm2	2	50	8,1	1,52	1 x 25	35	29,1	583
2×50+2×16+NA50 mm2	2	50	8,1	1,52	2 x 16	50	30,4	688
2×70+1×25+NA50 mm2	2	70	9,8	1,52	1 x 25	50	34,3	786
3×16+1×16+NA25 mm2	3	16	5	1,14	1 x 16	25	20,6	370
3×25+1×25+NA25 mm2	3	25	5,8	1,14	1 x 25	25	22,4	480
3×25+1×16+NA25 mm2	3	25	5,8	1,14	1 x 16	25	22,7	453
3×25+2×16+NA25 mm2	3	25	5,8	1,14	2 x 16	25	25,6	520
3×35+1×16+NA25 mm2	3	35	6,9	1,14	1 x 16	25	24,4	547
3×35+1×25+NA25 mm2	3	35	6,9	1,14	1 x 25	25	24,4	574
3×35+1×35+NA25 mm2	3	35	6,9	1,14	1 x 35	25	24,7	606
3×35+2×16+NA25 mm2	3	35	6,9	1,14	2 x 16	25	27,0	614
3×35+2×25+NA25 mm2	3	35	6,9	1,14	2 x 25	25	27,0	669
3×35+1×25+NA35 mm2	3	35	6,9	1,14	1 x 25	35	25,7	608
3×50+1×16+NA35 mm2	3	50	8,1	1,52	1 x 16	35	29,1	733
3×50+1×25+NA35 mm2	3	50	8,1	1,52	1 x 25	35	29,1	760
3×50+1×35+NA35 mm2	3	50	8,1	1,52	1 x 35	35	29,1	791
3×50+2×25+NA35 mm2	3	50	8,1	1,52	2 x 25	35	31,7	855
3×70+1×16+NA50 mm2	3	70	9,8	1,52	1 x 16	50	34,3	1005
3×70+2×25+NA50 mm2	3	70	9,8	1,52	2 x 25	50	37,9	1127
3×95+1×16+NA50 mm2	3	95	11,5	1,52	1 x 16	50	37,2	1252
3×95+2×16+NA50 mm2	3	95	11,5	1,52	1 x 16	50	40,3	1319
3×95+2×25+NA50 mm2	3	95	11,5	1,52	2 x 25	50	40,3	1374
3×95+1×16+NA70 mm2	3	95	11,5	1,52	1 x 16	70	38,9	1319
3×120+1×25+NA50 mm2	3	120	12,8	2,03	1 x 25	50	41,0	1565
3×120+1×35+NA50 mm2	3	120	12,8	2,03	1 x 35	50	41,0	1596
3×120+1×16+NA70 mm2	3	120	12,8	2,03	1 x 16	70	42,7	1604
3×120+1×35+NA70 mm2	3	120	12,8	2,03	1 x 35	70	42,7	1663
3×120+2×16+NA70 mm2	3	120	12,8	2,03	2 x 16	70	46,1	1672
3×120+2×25+NA70 mm2	3	120	12,9	2,03	2 x 25	70	46,1	1733
3×120+2×35+NA70 mm2	3	120	12,8	2,03	2 x 35	70	46,1	1790
3×120+2×50+NA70 mm2	3	120	12,8	2,03	2 x 50	70	46,1	1890
3×150+1×16+NA70 mm2	3	150	14,3	2,03	1 x 16	70	45,2	1864
3×150+1×25+NA70 mm2	3	150	14,3	2,03	1 x 25	70	45,2	1891

Specification Table 4

Name	No. of cores	Phase Cond. Cross Section [mm²]	Phase Cond. Diam. [mm]	Min. insulation thick. [mm]	Public lighting	Neutral Cond. section [mm²]	Nom. outer diam. [mm]	Approx. weight [kg/km]
3×16+1×16+NA25 mm2	3	16	5	1,14	1 x 16	25	20,6	370
3×25+1×16+NA25 mm2	3	25	5,8	1,14	1 x 16	25	22,7	453
3×35+1×16+NA25 mm2	3	35	6,9	1,14	1 x 16	25	24,4	547
3×50+1×16+NA35 mm2	3	50	8,1	1,52	1 x 16	35	29,1	733

3×70+1×16+NA50 mm2	3	70	9,8	1,52	1 x 16	50	34,3	1005
3×120+1×16+NA70 mm2	3	120	12,8	2,03	1 x 16	70	42,7	1604

Specification Table 5

Name	No. of cores	Phase Cond. Cross Section [mm²]	Phase Cond. Diam. [mm]	Min. insulation thick. [mm]	Public lighting	Neutral Cond. section [mm²]	Nom. outer diam. [mm]	Approx. weight [kg/km]
3×35+2×16+NA54,6 mm2	3	35	6,9	1,6	2 x 16	54,6	27,6	774
3×95+2×16+NA54,6 mm2	3	95	11,5	1,8	2 x 16	54,6	41,9	1374

Specification Table 6

Name	No. of cores	Phase Cond. Cross Section [mm²]	Phase Cond. Diam. [mm]	Min. insulation thick. [mm]	Neutral Cond. section [mm²]	Neutral Cond. section [mm²]	Nom. outer diam. [mm]	Approx. weight [kg/km]
1×16+NA25 mm2	1	16	5	1,14	25	1,14	16,2	168
1×25+NA25 mm2	1	25	5,8	1,14	25	1,14	17,0	195
1×70+NA50 mm2	1	70	9,8	1,52	50	1,52	25,3	445
2×16+NA25 mm2	2	16	5	1,14	25	1,14	17,2	235

2×25+NA25 mm2	2	25	5,8	1,14	25	1,14	18,2	290
2×35+NA25 mm2	2	35	6,9	1,14	25	1,14	19,7	353
2×35+NA50 mm2	2	35	6,9	1,14	50	1,52	22,8	452
2×50+NA35 mm2	2	50	8,1	1,52	35	1,14	23,7	488
2×50+NA50 mm2	2	50	8,1	1,52	50	1,52	25,3	553
2×70+NA50 mm2	2	70	9,8	1,52	50	1,52	27,7	691
3×16+NA25 mm2	3	16	5	1,14	25	1,14	18,6	303
3×25+NA25 mm2	3	25	5,8	1,14	25	1,14	20,1	385
3×25+NA35mm2	3	25	5,8	1,14	35	1,14	20,7	419
3×35+NA25 mm2	3	35	6,9	1,14	25	1,14	22,2	479
3×50+NA35mm2	3	50	8,1	1,52	35	1,14	26,7	665
3×70+NA50mm2	3	70	9,8	1,52	50	1,52	31,1	937
3×70+NA70 mm2	3	70	9,8	1,52	70	1,52	32,0	1004
3×95+NA50 mm2	3	95	11,5	1,52	50	1,52	34,4	1185
3×95+NA70 mm2	3	95	11,5	1,52	70	1,52	35,3	1251
3×150+NA70	3	150	14,3	2,03	70	1,52	42,5	1796
3×185+NA50	3	185	16	2,03	50	1,52	44,9	2072
3×240+NA50	3	240	18,4	2,03	50	1,52	49,3	2589

Specification Table 7

Name	No. of cores	Phase Cond. Cross Section [mm²]	Phase Cond. Diam. [mm]	Min. insulation thick. [mm]	Neutral Cond. section [mm²]	MIn.Insulat. Thick. Neutral mess. [mm]	Nom. outer diam. [mm]	Approx. weight [kg/km]
1×16+NA25 mm2	1	16	5	1,14	25	1,14	16,2	168
1×25+NA25 mm2	1	25	5,8	1,14	25	1,14	17,0	195
2×16+NA25 mm2	2	16	5	1,14	25	1,14	17,2	235

Specification Table 8

Name	No. of cores	Phase Cond. Cross Section [mm²]	Phase Cond. Diam. [mm]	Min. insulation thick. [mm]	Neutral Cond. section [mm²]	MIn.Insulat. Thick.Neutral mess. [mm]	Nom. outer diam. [mm]	Approx. weight [kg/km]
3×50+NA54,6 mm2	3	50	8,1	1,6	54,6	1,6	28,5	759
3×95+NA54,6 mm2	3	95	11,5	1,6	54,6	1,6	35,0	1215

Specification Table 9

Name	No. of cores	Phase Cond. Cross Section [mm²]	Phase Cond. Diam. [mm]	Min. insulation thick. [mm]	Neutral Cond. section [mm²]	MIn.Insulat. Thick.Neutral mess. [mm]	Nom. outer diam. [mm]	Approx. weight [kg/km]
3×35+NA54,6 mm2	3	35	6,9	1,6	54,6	1,6	26,2	642
3×95+NA54,6 mm2	3	95	11,5	1,8	54,6	1,6	35,7	1242

Specification Table 10

Name	No. of cores	Phase Cond. Cross Section [mm²]	Cond. Diam. [mm]	Min. insulation thick. [mm]	Messenger conduct. diam. [mm]	Public lightin g	Nom. outer diam. [mm]	Approx. weight [kg/km]
CAAI-S 0.6/1 kV 2×16+1×16 mm2+P3,2mm	2	16	5	1,14	3,2	1 x 16	16,6	261
CAAI-S 0.6/1 kV 2×16+2x16mm2+P3,2mm	2	16	5	1,14	3,2	2 x 16	18,8	329
CAAI-S 0.6/1 kV 2X25+1X16mm2+P3.2mm	2	25	5,8	1,14	3,2	1 x 16	21,3	316
CAAI-S 0.6/1 kV 3×16+1x16mm2+P2,7mm	3	16	5	1,14	2,7	1 x 16	18,5	315

CAAI-S 0.6/1 kV 3×16+1x16mm2 +P3,6mm	3	16	5	1,14	3,6	1 x 16	18,9	346
CAAI-S 0.6/1 kV 3×16+2x16mm2+P3,2mm	3	16	5	1,14	3,2	2 x 16	22,3	396
CAAI-S 0.6/1 kV 3×25+1x16mm2+P3,2mm	3	25	5,8	1,14	3,2	1 x 16	21,3	411
CAAI-S 0.6/1 kV 3×25+2x16mm2+P3,2mm	3	25	5,8	1,14	3,2	2 x 16	23,3	478
CAAI-S 0.6/1 kV 3×35+1x25mm2+P3.2mm	3	35	6,9	1,14	3,2	1 x 25	23,8	533
CAAI-S 0.6/1 kV 3×35+2x16mm2+P3,2mm	3	35	6,9	1,14	3,2	2 x 16	24,7	573
CAAI-S 0.6/1 kV3x35+2x25mm2+P3,6mm	3	35	6,9	1,14	3,6	2 x 25	26,1	645
CAAI-S 0.6/1 kV 3×35+2x25mm2+P7.9mm	3	35	6,9	1,14	7,9	2 x 25	26,7	907
CAAI-S 0.6/1 kV 3×50+1x16mm2+P4,8mm	3	50	8,1	1,52	4,8	1 x 16	26,3	724
CAAI-S 0.6/1 kV 3×50+1x25mm2+P4.8mm	3	50	8,1	1,52	4,8	1 x 25	27,2	751
CAAI-S 0.6/1 kV 3×50+2x16mm2+P3,2mm	3	50	8,1	1,52	3,2	2 x 16	27,6	725
CAAI-S 0.6/1 kV 3×50+2x16mm2+P4,8mm	3	50	8,1	1,52	4,8	2 x 16	27,6	791
CAAI-S 0.6/1 kV 3×70+1x16mm2+P3,6mm	3	70	9,8	1,52	3,6	1 x 16	29,1	881
CAAI-S 0.6/1 kV 3×70+1x25mm2+P3,6mm	3	70	9,8	1,52	3,6	1 x 25	30,0	909
CAAI-S 0.6/1 kV 3×70+1x35mm2+P3,6mm	3	70	9,8	1,52	3,6	1 x 35	31,1	940
CAAI-S 0.6/1 kV 3×70+1x50mm2+P3,6mm	3	70	9,8	1,52	3,6	1 x 50	33,3	991
CAAI-S 0.6/1 kV3x70+2x16mm2+P6,4mm	3	70	9,8	1,52	6,4	2 x 16	30,4	1076
CAAI-S 0.6/1 kV 3×70+2x35mm2+P6,4mm	3	70	9,8	1,52	6,4	2 x 35	32,9	1194
CAAI-S 0.6/1 kV 3×95+1x16mm2+P3,6mm	3	95	11,5	1,52	3,6	1 x 16	32,0	1129
CAAI-S 0.6/1 kV 3×120+1x16mm2+P6,4mm	3	120	12,8	2,03	6,4	1 x 16	36,7	1542
CAAI-S 0.6/1 kV 3×120+1x35mm2+P6.4mm	3	120	12,8	2,03	6,4	1 x 35	37,7	1600
CAAI-S 0.6/1 kV 3×120+1x70mm2+P6,4mm	3	120	12,8	2,03	6,4	1 x 70	41,7	1720
CAAI-S 0.6/1 kV 3×120+2x25mm2+P6,4mm	3	120	12,8	2,03	6,4	2 x 25	36,7	1664

Specification Table 11

Name	No.of cores	Phase Cond. Cross Section [mm²]	Phase Cond. Diam. [mm]	Min. insulation thick. [mm]	Messenger conduct. diam. [mm]	Messenger insul. thickness [mm]	Nom. outer diam. [mm]	Approx. weight [kg/km]
CAAI-S 0,6/1 kV 2×25 mm2+P3,2mm	2	25	5,8	1,14	3,2	0,8	16,4	248
CAAI-S 0,6/1 kV 3×16 mm2+P3,2mm	3	16	5	1,14	3,2	0,8	16,8	278
CAAI-S 0,6/1 kV 3×25 mm2+P3,2mm	3	25	5,8	1,14	3,2	0,8	18,1	343
CAAI-S 0,6/1 kV 3×35 mm2+P3,2mm	3	35	6,9	1,14	3,2	0,8	20,0	438

CAAI-S 0,6/1 kV 3×50 mm2+P3,2mm	3	50	8,1	1,52	3,2	0,8	24,3	590
CAAI-S 0,6/1 kV 3×70 mm2+P3,2mm	3	70	9,8	1,52	3,2	0,8	28,0	797
CAAI-S 0,6/1 kV 3×70 mm2+P3,6mm	3	70	9,8	1,52	3,6	0,8	28,0	814
CAAI-S 0,6/1 kV 3×70 mm2+P6,4mm	3	70	9,8	1,52	6,4	0,8	28,7	941
CAAI-S 0,6/1 kV 3×95 mm2+P6,4mm	3	95	11,5	1,5	6,4	0,8	32,0	1189
CAAI-S 0,6/1 kV 3x120mm2+P6,4mm	3	120	12,8	2,03	6,4	0,8	36,7	1474

Scroll horizontally to review complete specification columns.
