15-25-35kV MV AERIAL CABLE (SPACER CABLE OR TREE WIRE)

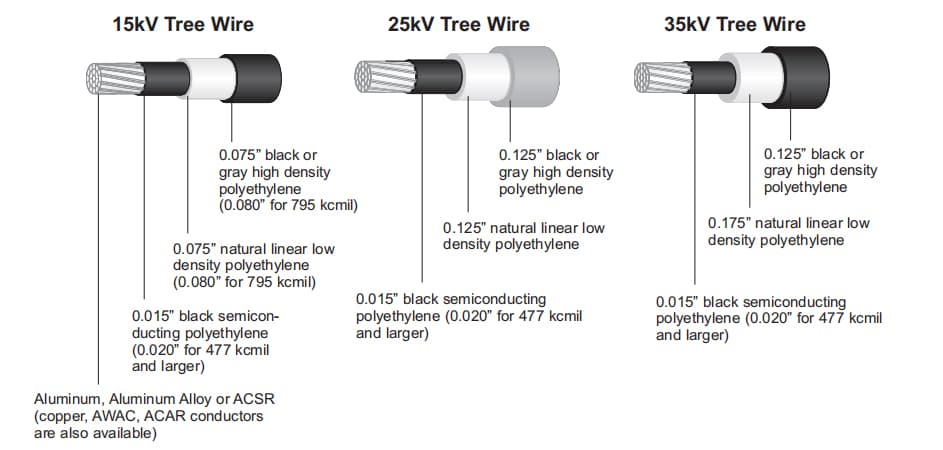

Tree wire or covered open wire consists of the conductor (aluminum, aluminum alloy or ACSR ) and the extruded covering (conductor shield, low density inner layer and protective outer layer). LEAVE MESSAGE SEND E-MAIL

Leave Message Send E-mail

CategoryAerial Bundled Cable

SourceQZ Cable Group

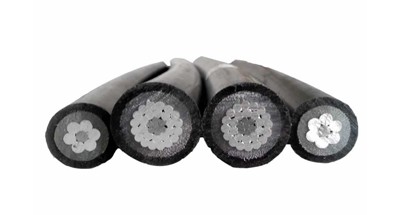

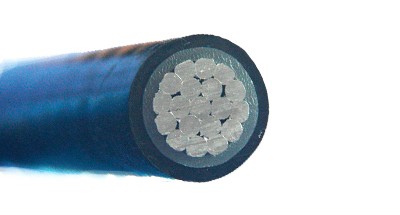

Product Images

Product Overview

Application:

Qingzhou Cable provides tree wire designed for systems from 15kV through 46kV. Polyethylene insulators must be used to insure dielectric compatibility with conductor covering. Conductors are supported on crossarms or standoff brackets. Span lengths are limited by the conductor breaking strength and the amount of sag that is permissible. Covered conductors are rated for continuous operation at 75°C. (Consult sales representative for 46kV tree wire systems).

Technical Parameters

IEC BS EN 50397 Standard 15kv 25kv 35kv Overhead Covered Conductor

15kv Overhead Covered Conductor
Cross section	No. of wires	Conductor dia.	Overall Diameter	Minimum breaking load	Approx. weight	Max. DC-resistance at 20°C	Ampacity 90°C
[mm²]	[mm]	[mm]	[kgf]	[kg/km]	[Ohm/km]	[A]
35	7	7.1	13.6	464	190	0.868	187
50	7	8.2	14.7	663	235	0.641	225

70	19	9.7	16.2	928	315	0.443	282
95	19	11.5	18	1259	400	0.32	345
120	19	12.9	19.4	1591	500	0.253	401
150	19	14.2	20.7	1988	580	0.206	456
185	37	16.2	22.6	2452	695	0.164	525
240	37	18.4	24.9	3182	875	0.125	625
300	37	20.7	27.1	3977	1070	0.1	721
25kv Overhead Covered Conductor
Cross section	No. of wires	Conductor dia.	Overall Diameter	Minimum breaking load	Approx. weight	Max. DC-resistance at 20°C	Ampacity 90°C
[mm²]	[mm]	[mm]	[kgf]	[kg/km]	[Ohm/km]	[A]
35	7	7.1	15.7	464	235	0.868	186
50	7	8.2	16.8	663	305	0.641	224
70	19	9.7	18.3	928	370	0.443	280
95	19	11.5	20.1	1259	460	0.32	343
120	19	12.9	21.5	1591	560	0.253	397
150	19	14.2	22.8	1988	650	0.206	450
185	37	16.2	24.8	2452	770	0.164	519
240	37	18.4	27	3182	960	0.125	617
300	37	20.7	29.3	3977	1155	0.1	712
35kv Overhead Covered Conductor
Cross section	No. of wires	Conductor dia.	Overall Diameter	Minimum breaking load	Approx. weight	Max. DC-resistance at 20°C	Ampacity 90°C
[mm²]	[mm]	[mm]	[kgf]	[kg/km]	[Ohm/km]	[A]
70	19	9.7	25.7	928	620	0.443	270
95	19	11.5	27.5	1259	732	0.32	329
120	19	12.9	28.9	1591	830	0.253	381
150	19	14.2	30.2	1988	937	0.206	432
185	37	16.2	32.2	2452	1083	0.164	497
240	37	18.4	34.4	3182	1290	0.125	589
300	37	20.7	36.7	3977	1502	0.1	674

Australia Standard MV 6.35/11kv 12.7/22kV CCT Overhead Covered Conductor, Aerial Cables. AS/NZS 3675

1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
Conductor size No./mm	Conductor d.c. resistance at 20°C Ω/km	Conductor a.c. resistance at 80°C Ω/km	Reactance at 50 Hz (460 mm spacing) Ω/km	Continuous current carrying capacity						Fault current rating kA for 1 sec.*	Everday working tensionf kN	Maximum working tension (50% MBL) kN	Minimum breaking load kN	Minimum bending radius mm
				Based on 30°C ambient			Based on 40°C ambient
				Still air	1.0 m/s wind	2.0 m/s wind	Still air	1.0 m/s wind	2.0 m/s wind
Alloy 6201

7/2.75	0.799	0.988	0.331	125		210	235	110	185	210	3.5	1.51	5.80	11.6	200
7/3.75	0.430	0.532	0.312	180		300	345	160	270	310	6.4	2.82	10.90	21.7	245
7/4.75	0.268	0.331	0.297	245		410	465	220	365	415	10.3	4.52	17.40	34.8	290
19/3.50	0.183	0.227	0.281	315		515	595	280	460	530	15.2	6.67	25.70	51.3	340
Alloy 1120
7/2.75	0.713	0.881	0.331	130		220	250	115	195	225	3.7	1.49	4.96	9.91	200
7/3.75	0.383	0.474	0.312	190		320	365	170	285	325	6.8	2.64	8.80	17.60	245
7/4.75	0.239	0.296	0.297	260		430	485	230	385	435	11.0	4.07	13.60	27.10	290
19/3.50	0.163	0.202	0.281	330		545	625	295	485	560	16.2	6.26	20.90	41.70	340
TECHNICAL PERFORMANCE CHARACTERISTICS FOR COVERED CONDUCTORS (CCT)
Conductor size No./mm	Conductor d.c. resistance at 20°C Ω/km	Conductor a.c. resistance at 80°C Ω/km	Reactance at 50 Hz (460 mm spacing) Ω/km	Continuous current carrying capacity							Fault current rating kA for 1 sec.*	Everday working tensionf kN	Maximum working tension (50% MBL) kN	Minimum breaking load kN	Minimum bending radius mm
				Based on 30°C ambient				Based on 40°C ambient
				Still air		1.0 m/s wind	2.0 m/s wind	Still air	1.0 m/s wind	2.0 m/s wind
11 kV Alloy 6201
7/3.75	0.430	0.532	0.312	185	295		330	165	265	295	6.4	2.82	10.9	21.7	285
7/4.75	0.268	0.331	0.297	245	390		440	220	350	395	10.3	4.52	17.4	34.8	330
19/3.50	0.183	0.227	0.281	315	500		560	280	445	500	15.2	6.67	25.7	51.3	380
22 kV Alloy 6201
7/3.75	0.430	0.532	0.312	185	285		315	165	255	280	6.4	2.82	10.9	21.7	350
7/4.75	0.268	0.331	0.297	245	375		420	220	335	375	10.3	4.52	17.4	34.8	395
19/3.50	0.183	0.227	0.281	315	475		530	280	425	475	15.2	6.67	25.7	51.3	445
33 kV Alloy 6201
7/3.75	0.430	0.532	0.312	185	270		295	165	240	265	6.4	2.82	10.9	21.7	425
7/4.75	0.268	0.331	0.297	245	360		400	220	320	355	10.3	4.52	17.4	34.8	470
19/3.50	0.183	0.227	0.281	315	455		505	280	405	450	15.2	6.67	25.7	51.3	520
XLPE covered aerial cables Alloy 1120 conductors
Conductor size No./mm	Conductor d.c. resistance at 20°C Ω/km	Conductor a.c. resistance at 80°C Ω/km	Reactance at 50 Hz (460 mm spacing) Ω/km	Continuous current carrying capacity							Fault current rating kA for 1 sec.*	Everday working tensionf kN	Maximum working tension (50% MBL) kN	Minimum breaking load kN	Minimum bending radius mm
				Based on 30°C ambient				Based on 40°C ambient
				Still air	1.0 m/s wind		2.0 m/s wind	Still air	1.0 m/s wind	2.0 m/s wind
11 kV Alloy 1120
7/2.75	0.713	0.881	0.331	130	215		240	115	190	215	3.7	1.49	4.96	9.9	230
7/3.75	0.383	0.474	0.312	190	315		345	170	280	310	6.8	2.64	8.80	17.6	285
7/4.75	0.239	0.296	0.297	26()	415		470	230	370	420	11.0	4.07	13.6	27.1	330
19/3.50	0.163	0.202	0.281	330	525		595	295	470	530	16.2	6.26	20.9	41.7	380
22 kV Alloy 1120
7/2.75	0.713	0.881	0.331	135	205		225	120	185	200	3.7	1.49	4.96	9.9	300
7/3.75	0.383	0.474	0.312	190	295		330	170	265	295	6.8	2.64	8.80	17.6	350
7/4.75	0.239	0.296	0.297	260	400		440	230	355	395	11.0	4.07	13.6	27.1	395
19/3.50	0.163	0.202	0.281	330	505		560	295	450	500	16.2	6.26	20.9	41.7	445
33 kV Alloy 1120
7/2.75	0.713	0.881	0.331	135	195		215	120	175	190	3.7	1.49	4.96	9.9	385
7/3.75	0.383	0.474	0.312	195	285		315	175	255	280	6.8	2.64	8.80	17.6	425
7/4.75	0.239	0.296	0.297	260	380		420	230	340	375	11.0	4.07	13.6	27.1	470
19/3.50	0.163	0.202	0.281	330	480		530	295	430	475	16.2	6.26	20.9	41.7	520
* Initial temperature 80°C, final temperature 210°C, constant K = 83.0 for alloy 6201 and 88.4 for alloy 1120. f 13% MBL fbr alloy 6201 and 15% MBL for alloy 1120.

American Standard One Two Three Layer MV 5kv 15KV 25KV 35KV Overhead Covered Conductor.

One-Layer 5kv AAC Tree Wire (All-Aluminum Conductors)
Size (AWG or kcmil)	Stranding	Cover Thickness (mils)	Cable O.D.+ (mils)	Rated Strenght (lbs)	Weight per 1000 ft. (lbs)		Allowable Ampacity*
					XLP	HD Poly
4	7	80	385	793	72	73	135
2	7	80	443	1210	102	104	180

1								19														80										482									1570										121										123													210
1/0								19														80										522									1940										146										148													240
2/0								19														80										565									2400										176										179													275
3/0								19														80										616									2980										215										218													320
4/0								19														80										672									3620										263										266													370
250								37														80										718									4420										300										304													410
266.8								19														80										734									4470										322										325													425
300								37														80										771									5300										353										356													455
336.4								37														80										807									5790										391										395													490
350								37														80										821									6080										406										409													505
477								37														80										931									7820										536										541													610
500								37														80										950									8200										560										565													625
One-Layer 5kv ACSR Tree Wire (Aluminum Conductor Steel Reinforced)
4								6/1														80										410									1770										94										96													135
2								6/1														80										476									2710										137										139													180
1								6/1														80										514									3370										166										168													205
1/0								6/1														80										558									4160										202										205													230
2/0								6/1														80										607									5040										247										250													265
3/0								6/1														80										662									6290										303										307													305
4/0								6/1														80										723									7930										374										378													345
266.8								18/1														80										769									6540										372										376													430
266.8								26/7														80										802									10700										449										453													440
336.4								18/1														80										844									8250										458										463													500
336.4								26/7														80										880									13400										555										559													510
397.5								18/1														80										903									9440										534										539													555
397.5								26/7														80										943									15500										647										652													565
477								18/1														80										974									11200										631										637													620
477								26/7														80										1018									185000										767										773													630
One-Layer 15kv AAC Tree Wire (All-Aluminum Conductors)
4								7														150										525									793										114										115													135
2								7														150										583									1210										150										151													175
1								19														150										622									1570										172										173													205
1/0								19														150										662									1940										—										202													235
2/0								19														150										705									2400										236										237													270
3/0								19														150										756									2980										279										281													310
4/0								19														150										812									3620										333										334													355
266.8								19														150										874									4470										397										399													410
300								37														150										911									5300										432										433													440
336.4								37														150										947									5790										473										475													475
350								37														150										961									6080										489										491													485
477								37														150										1071									7820										631										633													585
500								37														150										1090									8200										656										658													605
One-Layer 15kv ACSR Tree Wire (Aluminum Conductor Steel Reinforced)
4								6/1														150										550									1770										139										140													135
2								6/1														150										616									2710										188										189													175
1								6/1														150										654									3370										221										222													200
1/0								6/1														150										698									4160										261										263													230
2/0								6/1														150										747									5040										—										312													260
3/0								6/1														150										802									6290										372										374													295
4/0								6/1														150										863									7930										449										450													330
266.8								18/1														150										909									6540										451										453													415
266.8								26/7														150										942									10700										531										533													425
336.4								18/1														150										984									8250										545										547													480
336.4								26/7														150										1020									13400										645										647													490
397.5								18/1														150										1043									9440										626										628													535
397.5								26/7														150										1083									15500										743										745													545
477								18/1														150										1114									11200										730										733													595
477								26/7														150										1158									18500										870										872													610
2-Layer 15kV ACSR Tree Wire
4							6/1													250											75													75														550								1767									136
2							6/1													316											75													75														616								2708									184
1/0							6/1													398											75													75														698								4161									255
2/0							6/1													447											75													75														747								5045									303
3/0							6/1													502											75													75														802								6289									362
4/0							6/1													563											75													75														863								7933									432
266.8							18/1													609											75													75														909								6536									441
266.8							26/7													642											75													75														942								10735									452
336.4							18/1													684											75													75														984								8246									536
336.4							26/7													720											75													75														1020								13395									555
336.4							30/7													741											75													75														1041								16435									621
397.5							18/1													743											75													75														1043								9443									611
397.5							24/7													772											75													75														1072								13870									609
397.5							26/7													783											75													75														1083								1545									645
477							24/7													846											75													75														1146								16340									719
477							26/7													858											75													75														1158								18525									762
477							30/7													883											75													75														1183								22610									854
556.5							18/1													879											75													75														1179								13015									813
556.5							24/7													914											75													75														1214								18810									828
556.5							26/7													927											75													75														1227								21470									878
636							18/1													940											75													75														1240								14915									912
636							24/7													977											75													75														1277								20900									936
636							26/7													990											75													75														1290								23940									993
795							26/7													1108											80													80														1428								29925									1234
795							45/7													1063											80													80														1383								20995									1031
2-Layer 15kV AAAC Tree Wire
48.69						4											7												250										75								75							550									1584									124
77.47						2											7												316										75								75							616									2520									165
123.3						1/0											7												398										75								75							698									4014									225
155.4						2/0											7												447										75								75							747									4851									265
195.7						3/0											7												502										75								75							802									6111									314
246.9						4/0											7												563										75								75							863									7704									376
312.8						266.8											19												642										75								75							942									9900									450
394.5						336.4											19												720										75								75							1020									11970									543
465.4						397.5											19												782										75								75							1082									14040									623
559.5						477											19												858										75								75							1158									16920									727
652.4						556.5											19												927										75								75							1227									19710									828
740.8						636											37												990										80								80							1310									21960									938
2-Layer 15kV AAC Tree Wire
1/0													7								336											75											75										636									1791									196
2/0													7								376											75											75										676									2259									230
3/0													7								423											75											75										723									2736									272
4/0													7								475											75											75										775									3447									325
266.8													19								537											75											75										837									4473									387
336.4													19								603											75											75										903									5535									466
397.5													19								659											75											75										959									6399									535
477													19								722											75											75										1022									7524									623
556.5													37								780											75											75										1080									8946									708
636													37								835											75											75										1135									10260									794
3-Layer 15kV ACSR Tree Wire
Size (AWG or kcmil)					Stranding								Conductor Diameter (mils)													Covering Thickness (mils)																													Cable O.D. (mils)												Rated Strength (lbs)
																										Conductor Shield										Inner Layer										Outer Layer
4					6/1								250													15										75										75									580												1767
2					6/1								316													15										75										75									646												2708
1/0					6/1								398													15										75										75									728												4161
2/0					6/1								447													15										75										75									777												5045
3/0					6/1								502													15										75										75									832												6289
4/0					6/1								563													15										75										75									893												7933
266.8					18/1								609													15										75										75									939												6536
266.8					26/7								642													15										75										75									972												10735
336.4					18/1								684													15										75										75									1014												8246
336.4					26/7								720													15										75										75									1050												13395
336.4					30/7								741													15										75										75									1071												16435
397.5					18/1								743													15										75										75									1073												9443
397.5					24/7								772													15										75										75									1102												13870
397.5					26/7								783													15										75										75									1113												15485
477					24/7								846													15										75										75									1176												16340
477					26/7								858													15										75										75									1188												18525
477					30/7								883													15										75										75									1213												22610
556.5					18/1								879													20										75										75									1219												13015
556.5					24/7								914													20										75										75									1254												18810
556.5					26/7								927													20										75										75									1267												21470
636					18/1								940													20										75										75									1280												14915
636					26/7								990													20										75										75									1330												23940
3-Layer 15kV AAAC Tree Wire
48.69	4															7												250						15								75										75							580									1584								137
77.47	2															7												316						15								75										75							646									2520								179
123.3	1/0															7												398						15								75										75							728									4014								241
155.4	2/0															7												447						15								75										75							777									4851								283
195.7	3/0															7												502						15								75										75							832									6111								334
246.9	4/0															7												563						15								75										75							893									7704								397
312.8	266.8															19												642						15								75										75							972									9900								473
394.5	336.4															19												720						15								75										75							1050									11970								568
465.4	397.5															19												783						15								75										75							1113									14040								649
559.5	477															19												858						15								75										75							1188									16920								755
652.4	556.5															19												927						20								75										75							1267									19710								894
740.8	636															37												990						20								75										75							1330									21960								963
3-Layer 15kV AAC Tree Wire
1/0				7								336													15													75												75											666									1791
2/0				7								376													15													75												75											706									2259
3/0				7								423													15													75												75											753									2736
4/0				7								475													15													75												75											805									3447
266.8				19								537													15													75												75											867									4473
336.4				19								603													15													75												75											933									5535
397.5				19								659													15													75												75											989									6399
477				19								722													15													75												75											1052									7524
556.5				37								780													20													75												75											1120									8946
636				37								835													20													80												80											1195									10260
795				37								932													20													80												80											1292									12510
3-Layer 25kV ACSR Tree Wire
1/0					6/1								398														15										125											125												928									4161
2/0					6/1								447														15										125											125												977									5045
3/0					6/1								502														15										125											125												1032									6289
4/0					6/1								563														15										125											125												1093									7933
266.8					18/1								609														15										125											125												1139									6536
266.8					26/7								642														15										125											125												1172									10735
336.4					18/1								684														15										125											125												1214									8246
336.4					26/7								720														15										125											125												1250									13395
336.4					30/7								741														15										125											125												1271									16435
397.5					18/1								743														15										125											125												1273									9443
397.5					24/7								772														15										125											125												1302									13870
397.5					26/7								783														15										125											125												1313									15485
477					24/7								846														20										125											125												1386									16340
477					26/7								858														20										125											125												1398									18525
477					30/7								883														20										125											125												1423									22610
556.5					18/1								879														20										125											125												1419									13015
556.5					24/7								914														20										125											125												1454									18810
556.5					26/7								927														20										125											125												1467									21470
3-Layer 25kV AAAC Tree Wire
48.69		4													7								250										15								125										125					780								1584									225
77.47		2													7								316										15								125										125					846								2520									275
123.3		1/0													7								398										15								125										125					928								4014									348
155.4		2/0													7								447										15								125										125					977								4851									396
195.7		3/0													7								502										15								125										125					1032								6111									454
246.9		4/0													7								563										15								125										125					1093								7704									525
312.8		266.8													19								642										15								125										125					1172								9900									611
394.5		336.4													19								720										15								125										125					1251								11970									716
465.4		397.5													19								783										15								125										125					1313								14040									805
559.5		477													19								858										20								125										125					1398								16920									932
652.4		556.5													19								927										20								125										125					1467								19710									1044
740.8		636													37								990										20								125										125					1530								21960									1148
927.2		795													37								1108										20								125										125					1648								27450									1389
3-Layer 25kV AAC Tree Wire
1/0		7							336													15												125										125										866										1791									309
2/0		7							376													15												125										125										906										2259									350
3/0		7							423													15												125										125										953										2736									400
4/0		7							475													15												125										125										1005										3447									460
266.8		19							537													15												125										125										1067										4473									531
336.4		19							603													15												125										125										1133										5535									621
397.5		19							659													15												125										125										1189										6399									698
477		19							722													20												125										125										1262										7524									806
556.5		37							780													20												125										125										1320										8946									899
636		37							835													20												125										125										1375										10260									995
795		37							932													20												125										125										1472										12510									1181
3-Layer 35kV ACSR Tree Wire
1/0			6/1								398								15																175										125												1028							4161								448
2/0			6/1								447								15																175										125												1077							5045								509
4/0			6/1								563								15																175										125												1193							7933								673
266.8			18/1								609								15																175										125												1239							6536								684
266.8			26/7								642								15																175										125												1272							10735								770
336.4			18/1								684								15																175										125												1314							8246								794
336.4			26/7								720								15																175										125												1350							13395								901
336.4			30/7								741								15																175										125												1371							16435								1170
397.5			18/1								743								15																175										125												1373							9443								889
397.5			24/7								772								15																175										125												1402							13870								949
397.5			26/7								783								15																175										125												1413							15485								1013
477			24/7								846								20																175										125												1486							16340								1091
477			26/7								858								20																175										125												1498							18525								1168
477			30/7								883								20																175										125												1523							22610								1552
556.5			18/1								879								20																175										125												1519							13015								1138
556.5			24/7								914								20																175										125												1554							18810								1220
556.5			26/7								927								20																175										125												1567							21470								1309
636			18/1								940								20																175										125												1580							14915								1637
636			26/7								990								20																175										125												1630							23940								1826
795			26/7								1107								20																175										125												1747							29925								2146
795			45/7								1063								20																175										125												1703							20995								1892
3-Layer 35kV AAAC Tree Wire
48.69			4											7				250												15										175									125								880								1584								278
77.47			2											7				316												15										175									125								946								2520								333
123.3			1/0											7				398												15										175									125								1028								4014								411
155.4			2/0											7				447												15										175									125								1077								4851								462
195.7			3/0											7				502												15										175									125								1132								6111								523
246.9			4/0											7				563												15										175									125								1193								7704								598
312.8			266.8											19				642												15										175									125								1272								9900								689
394.5			336.4											19				720												15										175									125								1351								11970								799
465.4			397.5											19				783												15										175									125								1412								14040								892
559.5			477											19				858												20										175									125								1498								16920								1024
652.4			556.5											19				927												20										175									125								1567								19710								1141
3-Layer 35kV AAC Tree Wire
1/0			7							336														15											175										125												966							1791								368
2/0			7							376														15											175										125												1006							2259								411
3/0			7							423														15											175										125												1053							2736								464
4/0			7							475														15											175										125												1105							3447								527
266.8			19							537														15											175										125												1167							4473								603
336.4			19							603														15											175										125												1233							5535								696
397.5			19							659														15											175										125												1289							6399								777
477			19							722														20											175										125												1362							7524								889
556.5			37							780														20											175										125												1420							8946								987
636			37							835														20											175										125												1475							10260								1085
795			37							932														20											175										125												1572							12510								1278

America Standard Covered Line Wire ANSI ICEA S-70-547

Code Name	Size	No. of wires	Insulation Thickness (mm)	Overall Diameter (mm)	Rated Strength (kg)	Nominal Weight (kg/km)				Allowable Ampacity + A
Code Name	AWG or kcmil	No. of wires	Insulation Thickness (mm)	Overall Diameter (mm)	Rated Strength (kg)	Aluminum	LDPE	HDPE	XLPE	Allowable Ampacity + A
AAC
Plum	6	7	0.762	6.198	255	36.61	50.66	51.27	51.27	100
Apricot	4	7	0.762	7.239	400	58.19	75.57	76.33	76.33	135
Peach	2	7	1.143	9.703	612	92.56	126.09	127.55	127.55	180
Nectarine	1	7	1.143	11.481	789	116.67	167.31	169.52	169.52	210

Quince	1/0	7	1.524	12.395	903	147.48	203.7	206.14	206.14	240
Haw	1/0	19	1.524	12.522	980	147.48	204.49	206.96	206.96	240
Orange	2/0	7	1.524	14.834	1139	186.02	257.9	261.02	261.02	280
Ironwood	2/0	19	1.524	13.691	1211	186.02	250.41	253.21	253.21	280
Fig	3/0	7	1.524	16.307	1377	233.64	315.53	319.08	319.08	320
Lemon	3/0	19	1.524	14.986	1501	233.64	306.53	309.7	309.7	320
Olive	4/0	7	1.524	16.307	1728	296.14	378.04	381.58	381.58	370
Pomegranate	4/0	19	1.524	16.459	1823	296.14	379.09	382.69	382.69	370
Sassalras	250	19	1.524	17.628	2043	348.68	439.88	443.84	443.84	420
Mulberry	266.8	19	1.524	17.653	2182	372.19	463.59	467.55	467.55	430
Basswood	300	19	1.524	18.999	2404	419.66	520.91	525.3	525.3	478
Anona	336.4	19	1.524	19.964	2697	469.51	578.04	582.75	582.75	495
Chinquapin	350	19	1.524	20.269	2790	488.12	598.98	603.79	603.79	525
Molles	397.5	19	2.032	22.454	3123	555.08	707.29	713.88	713.88	550
Sumac	450	37	2.032	23.673	3719	628	791.79	798.89	798.89	600
Huckleberry	477	37	2.032	24.257	3810	665.21	834.63	841.98	841.98	610
ACSR
Walnut	6	6-1	0.762	6.553	540	36.64	69.94	71.43	71.43	105
Butternut	4	6-1	0.762	7.874	844	58.04	107.15	107.15	107.15	135
Hickory	4	7-1	0.762	8.052	1070	58.04	120.54	122.03	122.03	135
Pignut	2	6-1	1.143	10.312	1293	92.27	175.6	177.09	177.09	180
Beech	2	7-1	1.143	10.643	1651	92.27	199.41	199.41	199.41	180
Chestnut	1	6-1	1.143	11.303	1610	116.37	17.27	218.76	218.76	210
Almond	1/0	6-1	1.524	13.157	1987	146.73	282.75	284.24	284.24	235
Pecan	2/0	6-1	1.524	14.402	2404	184.98	348.23	349.72	349.72	290
Filbert	3/0	6-1	1.524	15.799	3003	233.34	430.08	433.05	433.05	305
Buckeye	4/0	6-1	1.524	17.348	3787	394.21	531.27	535.74	535.74	345
Hackberry	266.8	1-18	1.524	18.517	3121	372.63	525.32	528.3	528.3	356
AAAC
Maple	6	7	0.762	6.553	503	42.41	59.53	61.01	61.01	78
Hornbeam	4	7	0.762	7.874	798	67.56	89.29	90.78	90.78	145
Linden	2	7	1.143	10.312	1270	107.44	147.33	147.33	147.33	190
Oilnut	1/0	7	1.524	11.887	2023	170.99	238.11	247.03	247.03	250
Waterash	2/0	7	1.524	14.402	2445	215.63	291.68	302.01	302.01	290
Shellbark	3/0	7	1.524	15.799	3080	271.59	358.65	370.55	370.55	335
Planetree	4/0	7	1.524	17.348	3883	342.57	443.47	456.86	456.86	385

British Standard BS6485 Covered Line Wire

Code Name	Nominal	Calculatec	Wires		Approx. Overall Dia.	Nominal	Max.D.C. Resistance at20P	Alum. Weight	PVC Insulated Overall Diameter	PVC Insulated Total Weight	Packing Length
Code Name	Area	Area	No.	Dia.	Approx. Overall Dia.	Load	Max.D.C. Resistance at20P	Alum. Weight	PVC Insulated Overall Diameter	PVC Insulated Total Weight	Packing Length
mm'	mm2	mm	mm	kN	Q/km	kg/km	mm	kg/km	m±5%
Midge	22	23.33	7	2.06	6.2	3.99	1.227	64	8.4	106	3000
Aphis	25	26.44	3	3.35	7.2	4.11	1.081	73	9.2	133	3000
Gnat	25	26.8	7	2.21	6.6	4.59	1.066	73	8.8	116	3000

Weevil	30	31.6	3	3.66	7.9	4.86	0.9082	86	10.1	158	3000
Mosouito	35	37	7	2.59	7.8	6.03	0.7762	101	10.0	158	3000
Ladybird	40	42.8	7	2.79	8.4	6.87	0.6689	117	10.6	177	3000
Ant	50	52.83	7	3.1	9.3	8.28	0.5419	145	11.5	212	3000
Fly	60	63.55	7	3.4	10.2	9.9	0.4505	174	12.4	249	2500
Blueeottle	70	73.55	7	3.66	11.0	11.34	0.3881	202	13.2	285	2500
Earwing	75	78.5	7	3.78	11.4	11.94	0.3644	215	13.6	302	2000
Grasshopper	80	84.1	7	3.91	11.7	12.78	0.3406	230	13.9	319	2000
Clegg	90	95.6	7	4.17	12.5	14.53	0.2994	262	14.7	359	2000
Wasp	100	108	7	4.39	13.21	16.0	0.2702	290	15.4	393	3000
Beetle	100	106.6	19	2.67	13.4	17.42	0.2704	293	15.6	387	3000
Bee	125	132	7	4.9	14.7	19.94	0.2169	361	16.5	482	2500
Cricket	150	157.9	7	5.36	16.1	23.85	0.1813	432	18.3	587	2000
Hornet	150	157.6	19	3.25	16.3	27.7	0.1825	434	18.5	638	3000
Caterpillar	175	186	19	3.53	17.7	28.63	0.1547	512	19.9	646	2500
Chafer	200	213.2	19	3.78	18.9	32.4	0.1349	587	21.1	733	2000
Spider	225	236.9	19	3.99	20.0	36.01	0.1211	652	22.2	809	2000
Cockroach	250	265.7	19	4.22	21.1	40.4	0.1083	731	23.3	900	3000
Butterfly	300	322.7	19	4.65	23.3	48.7	0.08916	888	25.5	1082	3000
Moth	350	373.2	19	5.0	25.0	56.37	0.07711	1027	27.2	1241	2500
Drone	350	373.3	37	3.58	25.1	57.45	0.07741	1029	27.3	1222	2500
Locust	400	428.5	19	5.36	26.8	64.73	0.0671	1179	29	1416	2000
Centipede	400	415.2	37	3.78	26.5	63.1	0.06944	1145	28.7	1363	2000
Maybug	450	486.9	37	4.09	28.6	74.01	0.05931	1342	30.8	1573	2000
Scorpion	500	529.5	37	4.27	29.9	79.98	0.05441	1460	32.1	1706	1500
Cicada	600	628.6	37	4.65	32.6	94.95	0.04586	1733	34.5	2010	1500
Tarantula	750	794.8	37	5.23	36.6	120.1	0.03627	2191	38.5	2519	1000

DIN48201.5- BS6485 ALLALUMINIUM CONDUCTORS (AAC) TYPE 8 PVC INSULATION (AAC/PVC)

Nominal Area	Calculated Area	Wires		Approx. Overall Dia.	Nominal Breaking Load	Max. D.C. Resistance at 20T	Alum. Weight	PVC Insulated Overall Diameter	PVC Insulated Total Weight	Packing Length
Nominal Area	Calculated Area	No.	Dia.	Approx. Overall Dia.	Nominal Breaking Load	Max. D.C. Resistance at 20T	Alum. Weight	PVC Insulated Overall Diameter	PVC Insulated Total Weight	Packing Length
mm'	mm'	mm	mm	kN	Q/km	kg/km	mm	kg/km	m±5%
16	15.89	7	1.7	5.1	2.84	1.802	44	7.3	77	3000
25	24.25	7	2.1	6.3	4.17	1.181	67	8.5	108	3000
35	34.36	7	2.5	7.5	5.78	0.8317	94	9.7	143	3000

50	49.48	7	3.0	9.0	7.94	0.5787	135	11.2	196	3000
50	48.35	19	1.8	9.0	8.45	0.5950	133	11.2	187	3000
70	65.81	19	2.1	10.5	11.32	0.4371	181	12.7	243	2000
95	93.27	19	2.5	12.5	15.68	0.3085	256	14.7	333	2000
120	117.0	19	2.8	14.0	18.78	0.2459	322	16.2	410	2000
150	147.1	37	2.25	15.7	25.30	0J960	406	17.9	498	2000
185	181.6	37	2.5	17.5	30.54	0.1587	501	19.7	606	2000
240	242.5	61	2.25	20.2	39.51	0.1191	670	22 4	787	2000
300	299.4	61	2.5	22.5	47.70	0.0965	827	24.7	959	2000
400	400.1	61	2.89	26.0	60.86	0.0722	1105	28.2	1262	2000
500	499.8	61	3.23	29.1	74.67	0.0578	1381	31.3	1561	2000

Specification Table 7

Nominal Cross-sectional area mm²	Stranding and wire Diameter mm	Approximate Overall Diameter of Bare Conductor mm	Maximum Resistance Per kilometete At 20℃ Ω	Approximate Breaking load KN	Approximate Overall diameter of Covered conductor		Approximate mass Per kilometre of Covered conductor
					Type 8 mm	Type 16 mm	Type 8 kg	Type 16 kg
14	7/1.60	4.80	1.303	5.744	6.8	8.4	160	190
16	3/2.65	5.70	1.106	6.590	7.7	9.3	180	220
32	3/3.75	8.06	0.5520	12.71	10.5	12.1	350	390

35			7/2.50		7.50			0.5337			14.097			9.9			11.55	360			400
70			7/3.55		10.65			0.2646			26.88			13.5			14.7	690			750
100			7/4.30		12.90			0.1810			37.64			15.7			16.9	990			1060
Table B.2— PVC-covered stranded hard-drawn copper alloy conductors (Based on BS 7884)
Nominal cross-sectional area mm²		Stranding and wire Diameter mm				Approximate Overall Diameter of Bare Conductor mm			Maximum Resistance Per kilometete At 20℃ Ω			Approximate Breaking load KN			Approximate Overall diameter of Covered conductor				Approximate mass Per kilometre of Covered conductor
															Type 16 mm				Type 16 kg
12		3/2.30				4.95			1.780			7.20			8.2				170
22		7/2.00				6.00			1.011			12.94			9.6				270
38		7/2.60				7.80			0.5983			21.69			11.8				430
75		7/3.70				11.10			0.2954			40.23			15.1				810
125		19/2.90				14.50			0.1784			68.75			18.5				1310
150		19/3.20				16.00			0.1465			82.16			20.0				1570
Table B.3—PVC-covered aluminium stranded conductors (Based on BS215-1)
Nominal cross-sectional area mm²		Stranding and wire Diameter mm				Approximate Overall Diameter of Bare Conductor mm			Calculated Resistance Per Kilometre At20℃ Ω			Approximate Breaking load KN			Approximate Overall diameter of Covered conductor				Approximate mass Per kilometre of Covered conductor
															Type 8 mm				Type 8 kg
22		7/2.06				6.18			1.227			3.99			8.2				100
50		7/3.10				9.30			0.5419			8.28			11.7				200
100		7/4.39				13.17			0.2702			16.00			16.0				360
200		19/3.78				18.90			0.1349			32.40			21.7				690
Table B.4— PVC-covered aluminium conductors,steel reinforced (Based on BS215-2)
Nominal cross-sectional area mm²	Stranding and wire diameter						Approximate Overall Diameter of Bare Conductor mm			Calculated Resistance Per Kilometre At20℃ Ω			Approximate Breaking Load kN			Approximate Overall diameter of Covered conductor				Approximate mass Per kilometre of Covered conductor
	Aluminium mm			Stell mm												Type 16 mm				Type 16 kg
25	6/2.36			1/2.36			7.08			1.093			9.61			10.7				190
50	6/3.335			1/3.35			10.05			0.5426			18.35			14.1				330
100	6/4.72			7/1.57			14.15			0.2733			32.70			18.2				550
150	30/2.59			7/2.59			18.13			0.1828			69.20			22.2				920
150	18/3.35			1/3.35			16.75			0.1815			35.70			20.8				680
175	30/2.79			7/2.79			19.53			0.1576			79.80			23.6				1050
175	18/3.61			1/3.61			18.05			0.1563			41.10			22.1				780
200	30/3.00			7/3.00			21.00			0.1363			92.25			25.0				1190
200	18/3.86			1/3.86			19.30			0.1367			46.55			23.3				870
Table B.5—PVC-covered aluminium alloy stranded conductors (Based on BS3242)
Nominal cross-sectional area mm²		Stranding and wire Diameter mm				Approximate Overall Diameter of Bare Conductor mm			Calculated Resistance Per Kilometre At20℃ Ω			Approximate Breaking Load kN			Approximate Overall diameter of Covered conductor				Approximate mass Per kilometre of Covered conductor
															Type 16 mm				Type 16 kg
25		7/2.34				7.02			1.094			8.44			10.6				170
50		7/3.30				9.90			0.5498			16.80			13.9				280
100		7/4.65				13.95			0.2769			33.30			18.0				470
150		19/3.48				17.40			0.1830			50.65			21.4				680
175		19/3.76				18.80			0.1568			59.10			22.8				780

Scroll horizontally to review complete specification columns.

Request Full TDS

Structure & Technical Illustration
