DIN 48201-5 AAC conductor is also known as aluminium stranded conductor. These conductors are used in low, medium and high voltage overhead lines. abc & aac cable manufacturers in china aac conductor price LEAVE MESSAGE SEND E-MAIL
Conductor AAC has been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity , And they are also suitable for laying across rivers valleys and the places where special geographical features exist. It is mainly used for electric distribution lines with little span, less stress. Temperature for continuous use is up to 75 ℃.

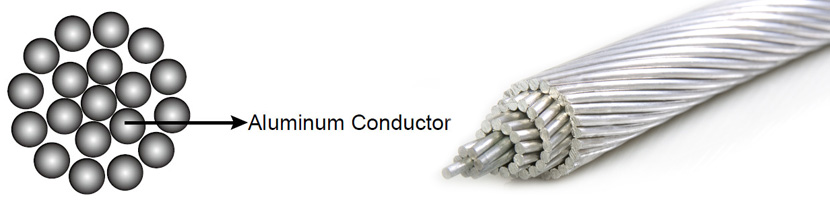

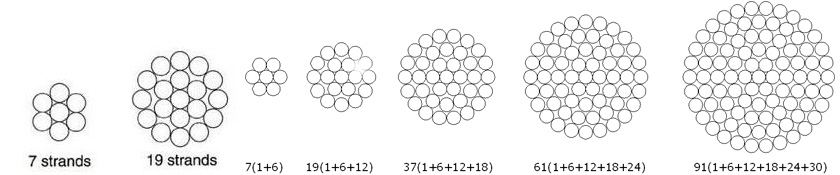

Bare AAC wire is a concentric-lay-stranded conductor consisting of hard drawn aluminum wires available in both single layer and multi-layer constructions. Huatong AAC conductor ensuring purity of min.99.55% 1350-H19 Aluminum. Temperature for continuous use is up to 75℃.Aluminum 1350 wires are concentrically stranded and wrapped helically around a central wire. Each successive layer has six wires more than the previous underlying layer. Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical...
| Nominal Area | Stranding | Overall Diameter | Weight | Rated Strength | Electrical Resistance | Current Rating* | |
| Nominal | Teorical | ||||||
| mm^2 | mm^2 | No.×mm | mm | kg/km | KN | Ω/Km | A |
| 16 | 15.89 | 7/1.70 | 5.1 | 43 | 2.84 | 1.8022 | 83 |
| 25 | 24.25 | 7/2.10 | 6.3 | 66 | 4.17 | 1.181 | 108 |
| 35 | 34.36 | 7/2.50 | 7.5 | 94 | 5.78 | 0.8333 | 134 |
| 50 | 49.48 | 7/3.00 | 9 | 135 | 7.94 | 0.5787 | 168 |
| 50 | 48.35 | 19/1.80 | 9 | 133 | 8.45 | 0.5951 | 166 |
| 70 | 65.81 | 19/2.10 | 10.5 | 181 | 11.32 | 0.4372 | 200 |
| 95 | 93.27 | 19/2.50 | 12.5 | 256 | 15.68 | 0.3085 | 248 |
| 120 | 116.99 | 19/2.80 | 14 | 322 | 18.78 | 0.2459 | 285 |
| 150 | 147.11 | 37/2.25 | 15.8 | 406 | 25.3 | 0.196 | 328 |
| 185 | 181.62 | 37/2.50 | 17.5 | 500 | 30.54 | 0.1588 | 373 |
| 240 | 242.54 | 61/2.25 | 20.3 | 670 | 39.51 | 0.1191 | 445 |
| 300 | 299.43 | 61/2.50 | 22.5 | 827 | 47.7 | 0.0965 | 506 |
| 400 | 400.14 | 61/2.89 | 26 | 1104 | 60.86 | 0.0722 | 602 |
| 500 | 499.83 | 61/3.23 | 29.1 | 1379 | 74.67 | 0.0578 | 688 |
| 625 | 626.2 | 91/2.96 | 32.6 | 1732 | 95.25 | 0.0462 | 786 |
| 800 | 802.09 | 91/3.35 | 36.9 | 2218 | 118.39 | 0.036 | 907 |
| 1000 | 999.71 | 91/3.74 | 41.1 | 2767 | 145.76 | 0.0289 | 1026 |
Scroll horizontally to review complete specification columns.
