AAC conductor IEC 61089 Standard
AAC conductor is also known as aluminium stranded conductor. It is manufactured from electrolytic-ally refined aluminium, with a minimum purity of 99.7%.
Technical Grade
AAC conductor IEC 61089 Standard
AAC conductor is also known as aluminium stranded conductor. It is manufactured from electrolytic-ally refined aluminium, with a minimum purity of 99.7%.
CategoryAAC Conductor-All Aluminum Conductor
SourceDTC Cable
Product Images
Product Overview
AAC conductor IEC 61089 Standard
Application
Conductor AAC has been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity , And they are also suitable for laying across rivers valleys and the places where special geographical features exist. It is mainly used for electric distribution lines with little span, less stress. Temperature for continuous use is up to 75 ℃.
Structure
Bare AAC wire is a concentric-lay-stranded conductor consisting of hard drawn aluminum wires available in both single layer and multi-layer constructions. DTC Cable AAC conductor ensuring purity of min.99.55% 1350-H19 Aluminum. Temperature for continuous use is up to 75℃.Aluminum 1350 wires are concentrically stranded and wrapped helically around a central wire. Each successive layer has six wires more than the previous underlying layer.
Technical Parameters
Specification Table 1
| Code | Nominal Area | Stranding | Overall Diameter | Weight | Rated Strength | Electrical Resistance | Current Rating* |
| mm^2 | No.×mm | mm | kg/km | KN | Ω/Km | A | |
| 10 | 10 | 7/1.35 | 4.05 | 27.4 | 1.95 | 2.8633 | 62 |
| 16 | 16 | 7/1.71 | 5.13 | 43.8 | 3.04 | 1.7896 | 84 |
| 25 | 25 | 7/2.13 | 6.39 | 68.4 | 4.5 | 1.1453 | 110 |
MORELESS
| 40 | 40 | 7/2.70 | 8.1 | 109.4 | 6.8 | 0.7158 | 147 |
| 63 | 63 | 7/3.39 | 10.17 | 172.3 | 10.39 | 0.4545 | 195 |
| 100 | 100 | 19/2.59 | 12.95 | 274.8 | 17 | 0.2877 | 259 |
| 125 | 125 | 19/2.89 | 14.45 | 343.6 | 21.25 | 0.2302 | 297 |
| 160 | 160 | 19/3.27 | 16.35 | 439.8 | 26.4 | 0.1798 | 345 |
| 200 | 200 | 19/3.66 | 18.3 | 549.7 | 32 | 0.1439 | 396 |
| 250 | 250 | 19/4.09 | 20.45 | 687.1 | 40 | 0.1151 | 454 |
| 315 | 315 | 37/3.29 | 23.03 | 867.9 | 51.97 | 0.0916 | 522 |
| 400 | 400 | 37/3.71 | 25.97 | 1102 | 64 | 0.0721 | 603 |
| 450 | 450 | 37/3.94 | 27.58 | 1239.8 | 72 | 0.0641 | 647 |
| 500 | 500 | 37/4.15 | 29.05 | 1377.6 | 80 | 0.0577 | 688 |
| 560 | 560 | 37/4.39 | 30.73 | 1542.9 | 89.6 | 0.0515 | 736 |
| 630 | 630 | 61/3.63 | 32.67 | 1738.3 | 100.8 | 0.0458 | 789 |
| 710 | 710 | 61/3.85 | 34.65 | 1959.1 | 113.6 | 0.0407 | 845 |
| 800 | 800 | 61/4.09 | 36.81 | 2207.4 | 128 | 0.0361 | 905 |
| 900 | 900 | 61/4.33 | 38.97 | 2483.3 | 144 | 0.0321 | 967 |
| 1000 | 1000 | 61/4.57 | 41.13 | 2759.2 | 160 | 0.0289 | 1026 |
| 1120 | 1120 | 91/3.96 | 43.56 | 3093.5 | 179.2 | 0.0258 | 1091 |
| 1250 | 1250 | 91/4.18 | 45.98 | 3452.6 | 200 | 0.0231 | 1157 |
| 1400 | 1400 | 91/4.43 | 48.73 | 3866.9 | 224 | 0.0207 | 1226 |
| 1500 | 1500 | 91/4.58 | 50.38 | 4143.1 | 240 | 0.0193 | 1270 |
Scroll horizontally to review complete specification columns.
Request Full TDSStructure & Technical Illustration

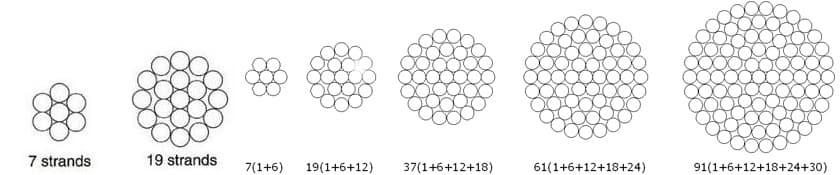

Structure
Bare AAC wire is a concentric-lay-stranded conductor consisting of hard drawn aluminum wires available in both single layer and multi-layer constructions. DTC Cable AAC conductor ensuring purity of min.99.55% 1350-H19 Aluminum. Temperature for continuous use is up to 75℃.Aluminum 1350 wires are concentrically stranded and wrapped helically around a central wire. Each successive layer has six wires more than the previous underlying layer.
Product image and technical reference.
