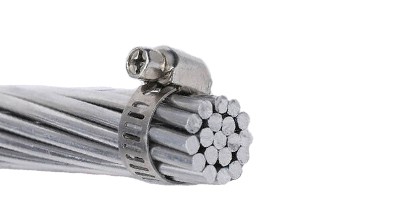

AACSR CONDUCTOR

AACSR is a concentrically stranded conductor composed of one or more layers of Aluminium -Magnesium -Silicon Alloy wire stranded around a high strength coated steel core. LEAVE MESSAGE SEND E-MAIL

Leave Message Send E-mail

CategoryOverhead Bare Conductor

SourceQZ Cable Group

Product Images

Product Overview

Application

These homogeneous conductors in aluminium alloy show many advantages i.e lightness, high breaking load allowing long spans, simplificity of the accessories and lastly easy recycling. These conductors are suitable for the long spans network.

Standards

ASTM B711 CONDUCTOR SIZES IEC Sizes IEC 61089 Standard A2/S1A A2/S3A IEC Sizes IEC 61089 Standard A3/S1A A3/S3A AACSR-DIN Standard FRENCH CONDUCTOR SIZES: Equal steel and Aluminum wire diameter, Non-equal steel and aluminum wire diameter

Technical Parameters

AACSR (Aluminum Alloy Conductor, Steel Reinforced) ASTM B711 CONDUCTOR SIZES

Conductor Area mm2	Alloy Area mm2	Steel Area mm2	No. of Alloy Wires	Dia of Alloy Wire mm	No. of Steel Wires	Dia of Steel Wire mm	Dia of Conductor mm	Linear Weight Kg/km	Rated Strength daN	Maximum DC Resistance at 20 °C ?/km
163	140	23	26	2.62	7	2.04	16.6	560	7500	0.240
173	140	33	30	2.44	7	2.44	17.1	650	8740	0.240
186	160	26	26	2.80	7	2.18	17.7	645	8560	0.210
198	160	38	30	2.61	7	2.61	18.3	740	10600	0.210

209	180	29	26	2.97	7	2.31	18.8	725	9510	0.187
222	180	42	30	2.76	7	2.76	19.3	825	11200	0.187
232	200	32	26	3.13	7	2.43	19.8	800	10600	0.168
247	200	47	30	2.91	7	2.91	20.4	920	12400	0.168
260	224	36	26	3.31	7	2.57	21.0	900	11800	0.150
276	224	52	30	3.08	7	3.08	21.6	1025	13900	0.150
291	250	41	26	3.50	7	2.72	22.2	1010	12900	0.135
308	250	58	30	3.26	7	3.26	22.8	1145	15600	0.135
326	280	46	26	3.70	7	2.88	23.4	1140	14400	0.120
345	280	65	30	3.45	7	3.45	24.2	1280	17100	0.120
367	315	52	26	3.93	7	3.06	24.9	1276	16300	0.107
387	315	72	30	3.66	19	2.20	25.6	1433	19000	0.107
413	355	58	26	4.17	7	3.24	26.4	1433	18300	0.0950
436	355	81	30	3.88	19	2.33	27.2	1614	21100	0.0950
465	400	65	26	4.43	7	3.45	28.1	1612	20700	0.0842
491	400	91	30	4.12	19	2.47	28.8	1816	23700	0.0842
509	450	59	54	3.26	19	1-96	29.5	1703	21500	0-0748
563	500	63	54	3.43	19	2.06	30.9	1873	22900	0.0673
631	560	71	54	3.63	19	2.18	32.7	2101	25700	0.0601
710	630	80	54	3.85	19	2.31	34.6	2365	28600	0.0534
800	710	90	54	4.09	19	2.45	36.8	2665	32200	0.0474
901	800	101	54	4.34	19	2.60	39.0	3000	36300	0.0420
973	900	73	84	3.69	19	2.21	40.6	3062	35500	0.0374
1081	1000	81	84	3.89	19	2.33	42.8	3395	39100	0.0337
1211	1120	91	84	4.12	19	2.47	45.3	3803	43900	0.0300
1352	1250	102	84	4.35	19	2.61	47.8	4250	49000	0.0270

AACSR IEC Sizes IEC 61089 Standard A2/S1A A2/S3A

Code Word	Stranding & Wire Diameter		Diameter mm	Sectional Area			Weight kg/km	A2/S1A A2/S3A Load kN	D.A. Resistance ohm /km
Code Word	Aluminium mm	Steel mm	Diameter mm	Aluminium mm2	Steel mm2	Total mm2	Weight kg/km	A2/S1A A2/S3A Load kN	D.A. Resistance ohm /km
16	6/1.98	1/1.98	5.93	18.4	3.07	21.5	74.4	9.02/9.88	1.7934
25	6/2.47	1/2.47	7.41	28.8	4.80	33.6	116.2	13.96/15.25	1.1478
40	6/3.13	1/3.13	9.38	46.0	7.67	53.7	185.9	22.02/24.17	0.7174

63	6/3.92	1/3.92	11.80	72.5	12.10	84.6	292.8	34.68/37.58	0.4555
100	18/2.85	1/2.85	14.30	115.0	6.39	121.0	366.4	41.24/42.97	0.2880
125	18/3.19	1/3.19	16.00	144.0	7.99	152.0	458.0	51.23/53.47	0.2304
125	26/2.65	7/2.06	16.80	144.0	23.40	167.0	579.9	69.86/76.42	0.2310
160	18/3.61	1/3.61	18.00	184.0	10.20	294.0	586.2	65.58/68.03	0.1800
160	26/3.00	7/2.34	19.00	184.0	30.00	214.0	742.3	88.52/96.61	11.805
200	18/4.04	1/4.04	20.20	230.0	12.80	243.0	732.8	81.97/85.04	0.1440
200	26/3.36	7/2.61	21.30	230.0	37.50	268.0	927.9	110.64/120.77	0.1444
250	22/4.08	7/2.27	23.10	288.0	28.30	316.0	1.013.5	117.09/124.72	0.1154
250	26/3.75	7/2.92	23.80	288.0	46.90	335.0	1.159.8	138.31/150.96	0.1155
315	45/3.20	7/2.14	25.60	363.0	25.10	388.0	1.196.5	136.28/143.30	0.0917
315	26/4.21	7/3.28	26.70	363.0	59.00	422.0	1.461.4	171.90/188.44	0.0917
400	45/3.61	7/2.41	28.90	460.0	31.80	492.0	1.519.4	172.10/180.36	0.0722
400	54/3.29	7/3.29	29.70	460.0	59.70	520.0	1738.3	201.46/218.17	0.0723
450	45/3.83	7/2.55	30.60	518.0	35.80	554.0	1.709.3	193.61/203.28	0.0642
450	54/3.49	7/3.49	31.50	518.0	67.10	585.0	1.955.6	226.64/245.44	0.0643
500	45/4.04	7/2.69	32.30	575.0	39.80	615.0	1.899.3	215.12/225.86	0.0578
500	54/3.68	7/3.68	33.20	575.0	74.60	650.0	2.172.9	251.82/269.73	0.0578
560	45/4.27	7/2.85	34.20	645.0	44.60	690.0	2.127.2	240.93/252.97	0.0516
560	54/3.90	19/2.34	35.10	645.0	81.60	727.0	2.420.9	283.21/305.25	0.0516
630	72/3.58	7/2.39	35.80	725.0	31.30	756.0	2.248.0	249.62/258.08	0.0459
630	54/4.13	19/2.48	47.20	725.0	91.80	817.0	2.723.5	318.61/343.40	0.0459
710	72/3.80	7/2.53	38.00	817.0	35.30	852.0	2.533.4	281.32/290.85	0.0407
710	54/4.39	19/2.63	39.50	817.0	104.00	921.0	3.069.4	359.06/387.01	0.0407
800	72/4.04	7/2.69	40.40	921.0	39.80	961.0	2.854.6	316.98/327.72	0.0361
800	84/3.74	7/3.74	41.10	921.0	76.70	998.0	3.145.1	356.03/374.44	0.0362
900	72/4.28	7/2.85	42.80	1.036.0	44.80	1.081.0	3.211.4	356.60/368.69	0.0321
900	84/3.96	7/3.96	43.60	1.036.0	86.30	1.122.0	3.538.3	400.53/421.25	0.0322
1.000	84/4.28	19/2.51	45.90	1.151.0	93.70	1.245.0	3.916.8	446.37/471.67	0.0289
1120	84/4.42	19/2.65	48.60	1.289.0	105.00	1.394.0	4.386.8	449.93/528.27	0.0258

AACSR IEC Sizes IEC 61089 Standard A3/S1A A3/S3A

Code Word	Stranding & Wire Diameter		Diameter mm	Sectional Area			Weight kg/km	A2/S1A A2/S3A Load kN	D.A. Resistance ohm /km
Code Word	Aluminium mm	Steel mm	Diameter mm	Aluminium mm2	Steel mm2	Total mm2	Weight kg/km	A2/S1A A2/S3A Load kN	D.A. Resistance ohm /km
16	6/1.98	1/1.98	5.93	18.4	3.07	21.5	74.4	9.02/9.88	1.7934
25	6/2.47	1/2.47	7.41	28.8	4.80	33.6	116.2	13.96/15.25	1.1478
40	6/3.13	1/3.13	9.38	46.0	7.67	53.7	185.9	22.02/24.17	0.7174

63	6/3.92	1/3.92	11.80	72.5	12.10	84.6	292.8	34.68/37.58	0.4555
100	18/2.85	1/2.85	14.30	115.0	6.39	121.0	366.4	41.24/42.97	0.2880
125	18/3.19	1/3.19	16.00	144.0	7.99	152.0	458.0	51.23/53.47	0.2304
125	26/2.65	7/2.06	16.80	144.0	23.40	167.0	579.9	69.86/76.42	0.2310
160	18/3.61	1/3.61	18.00	184.0	10.20	294.0	586.2	65.58/68.03	0.1800
160	26/3.00	7/2.34	19.00	184.0	30.00	214.0	742.3	88.52/96.61	11.805
200	18/4.04	1/4.04	20.20	230.0	12.80	243.0	732.8	81.97/85.04	0.1440
200	26/3.36	7/2.61	21.30	230.0	37.50	268.0	927.9	110.64/120.77	0.1444
250	22/4.08	7/2.27	23.10	288.0	28.30	316.0	1.013.5	117.09/124.72	0.1154
250	26/3.75	7/2.92	23.80	288.0	46.90	335.0	1.159.8	138.31/150.96	0.1155
315	45/3.20	7/2.14	25.60	363.0	25.10	388.0	1.196.5	136.28/143.30	0.0917
315	26/4.21	7/3.28	26.70	363.0	59.00	422.0	1.461.4	171.90/188.44	0.0917
400	45/3.61	7/2.41	28.90	460.0	31.80	492.0	1.519.4	172.10/180.36	0.0722
400	54/3.29	7/3.29	29.70	460.0	59.70	520.0	1738.3	201.46/218.17	0.0723
450	45/3.83	7/2.55	30.60	518.0	35.80	554.0	1.709.3	193.61/203.28	0.0642
450	54/3.49	7/3.49	31.50	518.0	67.10	585.0	1.955.6	226.64/245.44	0.0643
500	45/4.04	7/2.69	32.30	575.0	39.80	615.0	1.899.3	215.12/225.86	0.0578
500	54/3.68	7/3.68	33.20	575.0	74.60	650.0	2.172.9	251.82/269.73	0.0578
560	45/4.27	7/2.85	34.20	645.0	44.60	690.0	2.127.2	240.93/252.97	0.0516
560	54/3.90	19/2.34	35.10	645.0	81.60	727.0	2.420.9	283.21/305.25	0.0516
630	72/3.58	7/2.39	35.80	725.0	31.30	756.0	2.248.0	249.62/258.08	0.0459
630	54/4.13	19/2.48	47.20	725.0	91.80	817.0	2.723.5	318.61/343.40	0.0459
710	72/3.80	7/2.53	38.00	817.0	35.30	852.0	2.533.4	281.32/290.85	0.0407
710	54/4.39	19/2.63	39.50	817.0	104.00	921.0	3.069.4	359.06/387.01	0.0407
800	72/4.04	7/2.69	40.40	921.0	39.80	961.0	2.854.6	316.98/327.72	0.0361
800	84/3.74	7/3.74	41.10	921.0	76.70	998.0	3.145.1	356.03/374.44	0.0362
900	72/4.28	7/2.85	42.80	1.036.0	44.80	1.081.0	3.211.4	356.60/368.69	0.0321
900	84/3.96	7/3.96	43.60	1.036.0	86.30	1.122.0	3.538.3	400.53/421.25	0.0322
1.000	84/4.28	19/2.51	45.90	1.151.0	93.70	1.245.0	3.916.8	446.37/471.67	0.0289
1120	84/4.42	19/2.65	48.60	1.289.0	105.00	1.394.0	4.386.8	449.93/528.27	0.0258

AACSR-DIN Standard

Conductor	Alloy area	Steel	No. of	Diameter	Number	Diameter	Diameter	Linear	Nominal	Maximum
Area		area	alloy wires	of alloy wire	of Steel	of Steel wire	of conductor	Mass	Breaking	DC Resistance
wires		Load	at 20 ℃
mm2	mm2	mm2	mm	mm	mm	kg/km	daN	Ω/km
16/2.5	15.27	2.54	6	1.8	1	1.8	5.4	62	748	2.18
25/4	23.86	3.98	6	2.25	1	2.28	6.8	97	1171	1.3952
35/6	34.35	5.73	6	2.7	1	2.7	8.1	140	1685	0.9689

44/32	43.98	31.67	14	2	7	2.4	11.2	373	5027	0.7625
Aug-50	48.25	8.04	6	3.2	1	3.2	9.6	196	2366	0.6898
50/30	51.17	29.85	12	2.33	7	2.33	11.7	378	5024	0.6547
Dec-70	69.89	11.4	26	1.85	7	1.44	11.7	284	3399	0.4791
95/15	94.39	15.33	26	2.15	7	1.67	13.6	383	4582	0.3547
95/55	96.51	56.3	12	3.2	7	3.2	16	714	9475	0.3471
105/75	105.67	75.55	14	3.1	19	2.25	17.5	899	12014	0.3174
120/20	121.57	19.85	26	2.44	7	1.9	15.5	494	5914	0.2754
120/70	122.15	71.25	12	3.6	7	3.6	18	904	11912	0.2742
125/30	127.92	29.85	30	2.33	7	2.33	16.3	590	7280	0.2621
150/25	148.86	24.25	26	2.7	7	2.1	17.1	604	7236	0.2249
170/40	171.77	40.08	30	2.7	7	2.7	18.9	794	9775	0.1952
185/30	183.78	29.85	26	3	7	2.33	19	744	8922	0.1822
210/35	209.1	34.09	26	3.2	7	2.49	20.3	848	10167	0.1601
210/50	212.06	49.48	30	3	7	3	21	979	12068	0.1581
230/30	230.91	29.85	24	3.5	7	2.33	21	874	10308	0.1449
240/40	243.05	39.49	26	3.45	7	2.68	21.8	985	11802	0.1378
265/35	263.66	34.09	24	3.74	7	2.49	22.4	998	11771	0.1269
300/50	304.26	49.48	26	3.86	7	3	24.5	1233	14779	0.1101
305/40	304.62	39.49	54	2.68	7	2.68	24.1	1155	13612	0.1101
340/30	339.29	29.85	48	3	7	2.33	25	1174	13494	0.0988
380/50	381.7	49.48	54	3	7	3	27	1448	17056	0.0879
385/35	386.04	34.09	48	3.2	7	2.49	26.7	1336	15369	0.0868
435/55	434.29	56.3	54	3.2	7	3.2	28.8	1647	19406	0.0772
450/40	448.71	39.49	48	3.45	7	2.68	28.7	1553	17848	0.0747
490/65	490.28	63.55	54	3.6	7	3.4	30.6	1860	21907	0.0684
550/70	549.65	71.25	54	3.4	7	3.6	32.4	2085	24560	0.061
560/50	561.7	49.48	48	3.86	7	3	32.2	1943	22348	0.0597
680/85	678.58	85.95	54	4	19	2.4	36	2564	30084	0.0494

Specification Table 5

Code Name	Al Alloy Area	Steel Wire Area	No. Of Al Alloy Wires	No. Of St Wires	Dia of Wire	Overall Dia of Conductor	Tens Str of Al Alloy	Tens Str of Steel	Rated Str of Conductor	Max DC Resist at 20 °C	Linear Weight	Elasticity Mod *	Coefficient Of Linear Expansion *
Code Name	Mrn2	mm2	No. Of Al Alloy Wires	No. Of St Wires	mm	mm	hbar	hbar	daN	?/km	Kg/km	hbar	/ °C
PHLOX	37.7	28.27	9.42	9	3	2.00	8.3	32.4	156.8	2360	1.17	155	9300	17.0 x 10-1
PHLOX	59.7	37.70	21.99	12	7	2.00	10.0	32.4	156.8	4560	0.880	276	10800	15.3 x 106
PHLOX	75.5	47.71	27.83	12	7	2.25	11.25	32.4	156.8	5770	0.695	348	10800	15.3 X 10-6

PHLOX	116. 2	56.55	59.69	18	19	2.00	14.0	32.4	156.8	10815	0.580	636	12400	14.2 x 10-6
PHLOX	147. 1	71.57	75.54	18	19	2.25	15.75	32.4	156.8	13685	0.466	802	12400	14.2 X 10-6
PASTEL	147. 1	119.28	27.83	30	7	2.25	15.75	32.4	156.8	8185	0.279	547	8400	18.1 x 10-6
PHLOX	181. 6	88.36	93.27	18	19	2.50	17.5	32.4	156.8	16895	0-378	990	12400	14.2 x 10 6
PASTEL	181. 6	147.26	34.36	30	7	2.50	17.5	32.4	156.8	10120	0.227	675	8400	18-1 x 10-1
PHLOX	228	110.83	116.99	18	19	2.80	19.6	32.4	156.8	21200	0.300	1244	12400	14.2 x 10-1
PASTEL	228	184.72	43.10	30	7	2.80	19.6	32.4	156.8	12680	0.180	848	8400	18.1 x 101
PHLOX	288	140.28	148.07	18	19	3.15	22.05	32.4	156.8	26800	0.237	1570	12400	14.2 x 101
PASTEL	288	233.80	54.55	30	7	3.15	22.05	32.4	156.8	16050	0.142	1074	8400	18.0 x 101
PASTEL	299	205.17	93.27	42	19	2.50	22.5	32.4	156.8	20875	0.162	1320	9650	16.3 x 10-1
PHLOX	376	147.78	227.83	24	37	2.80	25.2	32.4	156.8	38960	0.225	2211	13000	13.5 x 10-1

Specification Table 6

Code Name me	AI Alloy Area mm²	Stell Area mm²	No.&Dia Of Ai Alloy wires	No.& Dia Of Ai Stell wires	Overal Dia of Conductor mm	Tens Str of Al Alloy hbar	Tens Str of Steel hbar	Rated Str of Conductor daN	Max DC Resist at 20 0C ? /km	Linear Weight Kg/km	Elast Mod * hbar	Coefficient Of Linear Expansion */ oC
PHLOX	94.1	51.95	42.12	15 x 2.10	19 x 1.68	12.8	32.4	156.8	8035	0.642	481	11200	14.7 x 10 1
PASTEL	412	325.72	85.95	32 x 3.60	19 x 2.40	26.4	32.4	156.8	23830	0.103	1593	8200	17.8 x 10-1
PETUNIA	612	507.80	104.79	66 x 3.13	19 x 2.65	32.1	32.4	156.8	32830	0.0657	2241	7750	18.6 x 101
PETUNIA	865	717.33	148.06	66 x 3.72 5	19 x 3.1	38.1	32.4	156.8	46000	0.0465	3174	7750	18.5 x 101

POLYGONUM

1185

956.66

227.82

54 x 2.80 66 x 3.47

37 x 2.80

44.7

32.4

156.8

66385

0.0349

4475

7750

18.1 x 101

Scroll horizontally to review complete specification columns.

Request Full TDS

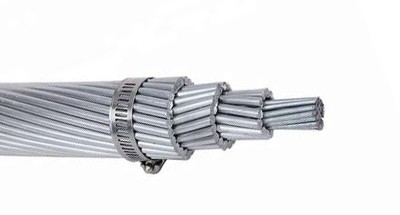

Structure & Technical Illustration

AACSR CONDUCTOR

AACSR is a concentrically stranded conductor composed of one or more layers of Aluminium -Magnesium -Silicon Alloy wire stranded around a high strength coated steel core. LEAVE MESSAGE SEND E-MAIL

Product image and technical reference.
