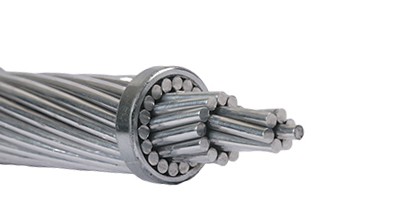

ACAR CONDUCTOR

ACAR used as bare overhead transmission cable and as primary and secondary distribution cable. ACAR Conductor Quote LEAVE MESSAGE SEND E-MAIL

Leave Message Send E-mail

CategoryOverhead Bare Conductor

SourceQZ Cable Group

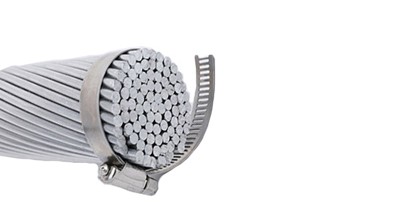

Product Images

Product Overview

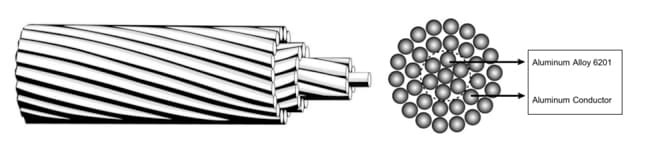

APPLICATION

Aluminum Conductors, Aluminum-Alloy Reinforced (ACAR) can be used as bare overhead transmission conductor or primary or secondary distribution conductor. When higher capacity and strength for equal weight are prime line considerations, ACAR is the solution over ACSR due to its better strength-to-weight ratio.

APPLICABLE STANDARD

Aluminum Conductors, Aluminum-Alloy Reinforced (ACAR) can be supplied to meet various International Standards as follows : International Electrotechnical Commission International Standards-IEC 61089 American Standard-ASTM B 524

Technical Parameters

Aluminum Conductors, Aluminum-Alloy Reinforced ( ACAR ) – A1 / A2 Conductors IEC 61089 Standard

Code Number	Nominal cross sectional area		Conductor construction		Approx. overall diameter	Approx. overall weight	Max DC Resistance at 20 ºC	Rated strength
Code Number	Al	Alloy	Al	Alloy	Approx. overall diameter	Approx. overall weight	Max DC Resistance at 20 ºC	Rated strength
mm2	No. x Ø ( mm )	mm	Kg / km	Ω / km	KN
16	9.73	7.3	4 x 1.76	3 x 1.76	5.28	46.6	1.7896	3.85
25	15.2	11.4	4 x 2.20	3 x 2.20	6.6	72.8	1.1453	5.93
40	24.3	18.3	4 x 2.78	3 x 2.78	8.35	116.5	0.7158	9.25

63	38.3	28.7	4 x 3.49	3 x 3.49	10.5	183.5	0.4545	14.38
100	60.8	45.6	4 x 4.40	3 x 4.40	13.2	291.2	0.2863	22.52
125	83.3	48.6	12 x 2.97	7 x 2.97	14.9	362.7	0.2302	27.79
160	107	62.2	12 x 3.36	7 x 3.36	16.8	464.2	0.1798	35.04
200	133	77.8	12 x 3.76	7 x 3.76	18.8	580.3	0.1439	43.13
250	167	97.2	12 x 4.21	7 x 4.21	21	725.3	0.1151	53.92
250	131	138	18 x 3.04	19 x 3.04	21.3	742.2	0.1154	60.39
315	263	61.3	30 x 3.34	7 x 3.34	23.4	892.6	0.0916	60.52
315	165	174	18 x 3.42	19 x 3.42	23.9	935.1	0.0916	76.09
400	334	77.8	30 x 3.76	7 x 3.76	26.3	1133.5	0.0721	75.19
400	210	221	18 x 3.85	19 x 3.85	27	1187.5	0.0721	95.58
450	375	87.6	30 x 3.99	7 x 3.99	27.9	1275.2	0.0641	84.59
450	236	249	18 x 4.08	19 x 4.08	28.6	1335.9	0.0641	107.52
500	417	97.3	30 x 4.21	7 x 4.21	29.4	1416.9	0.0577	93.98
500	262	277	18 x 4.31	19 x 4.31	30.1	1484.3	0.0577	119.47
560	467	109	30 x 4.45	7 x 4.45	31.2	1586.9	0.0515	105.26
560	504	65.4	54 x 3.45	7 x 3.45	31	1571.9	0.0516	101.54
630	454	205	42 x 3.71	19 x 3.71	33.4	1820	0.0458	130.25
630	271	417	24 x 3.79	37 x 3.79	34.1	1897.5	0.0458	160.19
710	512	232	42 x 3.94	19 x 3.94	35.5	2051.2	0.0407	146.78
710	305	470	24 x 4.02	37 x 4.02	36.2	2138.4	0.0407	180.53
800	577	261	42 x 4.18	19 x 4.18	37.6	2311.2	0.0361	165.39
800	344	530	24 x 4.27	37 x 4.27	38.4	2409.5	0.0361	203.41
900	649	294	42 x 4.43	19 x 4.43	39.9	2600.1	0.0321	186.06
900	567	388	54 x 3.66	37 x 3.66	40.2	2638.4	0.0321	199.54
1000	816	215	72 x 3.80	19 x 3.80	41.8	2849.1	0.0289	190.94
1000	630	432	54 x 3.85	37 x 3.85	42.4	2931.6	0.0289	221.71
1120	914	241	72 x 4.02	19 x 4.02	44.2	3191	0.0258	213.85
1120	705	483	54 x 4.08	37 x 4.08	44.9	3283.4	0.0258	248.32
1250	1020	269	72 x 4.25	19 x 4.25	46.7	3561.4	0.0231	238.68
1250	787	539	54 x 4.31	37 x 4.31	47.4	3664.5	0.0231	277.14
1400	1143	302	72 x 4.50	19 x 4.50	49.4	3988.8	0.0207	267.32

Aluminum Conductors, Aluminum-Alloy Reinforced ( ACAR ) A1 / A3 Conductors IEC 61089 Standard

Code Number	Nominal cross sectional area		Conductor construction		Approx. overall diameter	Approx. overall weight	Max DC Resistance at 20 ºC
Code Number	Al	Alloy	Al	Alloy	Approx. overall diameter	Approx. overall weight	Max DC Resistance at 20 ºC
mm2		No. x Ø ( mm )	mm	Kg / km	Ω / km
16	9.78	7.33	4 x 1.76	3 x 1.76	5.29	46.8	1.7896
25	15.3	11.5	4 x 2.21	3 x 2.21	6.62	73.1	1.1453
40	24.4	18.3	4 x 2.79	3 x 2.79	8.37	117	0.7158

63	38.5	28.9	4 x 3.50	3 x 3.50	10.5	184.3	0.4545
100	61.1	45.8	4 x 4.41	3 x 4.41	13.2	292.5	0.2863
125	83.7	48.8	12 x 2.98	7 x 2.98	14.9	364.1	0.2302
160	107	62.5	12 x 3.37	7 x 3.37	16.9	466	0.1798
200	134	78.1	12 x 3.77	7 x 3.77	18.8	582.5	0.1439
250	167	97.6	12 x 4.21	7 x 4.21	21.1	728.1	0.1151
250	132	139	18 x 3.05	19 x 3.05	21.4	746	0.1154
315	263	61.4	30 x 3.34	7 x 3.34	23.4	894.4	0.0916
315	166	175	18 x 3.43	19 x 3.43	24	940	0.0916
400	334	78	30 x 3.77	7 x 3.77	26.4	1135.8	0.0721
400	211	222	18 x 3.86	19 x 3.86	27	1193.7	0.0721
450	376	87.7	30 x 3.99	7 x 3.99	28	1277.8	0.0641
450	237	250	18 x 4.10	19 x 4.10	28.7	1342.9	0.0641
500	418	97.5	30 x 4.21	7 x 4.21	29.5	1419.8	0.0577
500	263	278	18 x 4.32	19 x 4.32	30.2	1492.1	0.0577
560	468	109	30 x 4.46	7 x 4.46	31.2	1590.1	0.0515
560	505	65.5	54 x 3.45	7 x 3.45	31.1	1573.9	0.0516
630	456	206	42 x 3.72	19 x 3.72	33.4	1826	0.0458
630	272	420	24 x 3.80	37 x 3.80	34.2	1909	0.0458
710	514	232	42 x 3.95	19 x 3.95	35.5	2057.8	0.0407
710	307	473	24 x 4.03	37 x 4.03	36.3	2151.4	0.0407
800	579	262	42 x 4.19	19 x 4.19	37.7	2318.7	0.0361
800	346	533	24 x 4.28	37 x 4.28	38.5	2424.2	0.0361
900	651	294	42 x 4.44	19 x 4.44	40	2608.5	0.0321
900	569	390	54 x 3.66	37 x 3.66	40.3	2649.5	0.0321
1000	818	216	72 x 3.80	19 x 3.80	41.8	2855.4	0.0289
1000	632	433	54 x 3.86	37 x 3.86	42.5	2943.9	0.0289
1120	916	242	72 x 4.02	19 x 4.02	44.3	3198.1	0.0258
1120	708	485	54 x 4.09	37 x 4.09	45	3297.2	0.0258
1250	1022	270	72 x 4.25	19 x 4.25	46.8	3569.3	0.0231
1250	791	542	54 x 4.32	37 x 4.32	47.5	3679.9	0.0231
1400	1145	302	72 x 4.50	19 x 4.50	49.5	3997.6	0.0207

Aluminum Conductors, Aluminum-Alloy Reinforced ( ACAR ) ASTM B 524 Standard

Nominal cros sectional area	Conductor construction		Approx. overall diameter	Approx. overall weight	Calculated DC Resistance at 20 ºC
Nominal cros sectional area	Aluminum	Alloy	Approx. overall diameter	Approx. overall weight	Calculated DC Resistance at 20 ºC
mm2	No. x Ø ( mm )		mm	Kg / km	Ω / km
16	4 x 1.71	3 x 1.71	5.13	44.2	1.90726
20	4 x 1.91	3 x 1.91	5.73	55.2	1.52875
25	4 x 2.13	3 x 2.13	6.39	68.6	1.22926

31.5	4 x 2.39	3 x 2.39	7.17	86.4	0.97635
40	4 x 2.70	3 x 2.70	8.1	110.3	0.76502
50	4 x 3.02	3 x 3.02	9.06	138.1	0.61149
63	4 x 3.39	3 x 3.39	10.17	173.9	0.48529
80	4 x 3.81	3 x 3.81	11.43	219.7	0.3842
100	4 x 4.26	3 x 4.26	12.78	274.6	0.30731
112	4 x 4.51	3 x 4.51	13.53	307.8	0.27419
125	4 x 4.77	3 x 4.77	14.31	344.3	0.24511
140	15 x 3.06	4 x 3.06	15.3	385	0.21257
140	12 x 3.06	7 x 3.06	15.3	384	0.2175
160	15 x 3.27	4 x 3.27	16.35	440	0.18614
160	12 x 3.27	7 x 3.27	16.35	439	0.19046
180	15 x 3.47	4 x 3.47	17.35	495	0.1653
180	12 x 3.47	7 x 3.47	17.35	495	0.16914
200	15 x 3.66	4 x 3.66	18.3	550	0.14858
200	12 x 3.66	7 x 3.66	18.3	550	0.15203
224	15 x 3.87	4 x 3.87	19.35	616	0.1329
224	12 x 3.87	7 x 3.87	19.35	615	0.13598
250	15 x 4.09	4 x 4.09	20.45	688	0.11898
250	12 x 4.09	7 x 4.09	20.45	687	0.12174
250	18 x 2.93	19 x 2.93	20.51	687	0.12447
250	24 x 2.93	13 x 2.93	20.51	686	0.12151
250	30 x 2.93	7 x 2.93	20.51	688	0.11869
250	33 x 2.93	4 x 2.93	20.51	688	0.11733
280	15 x 4.33	4 x 4.33	21.65	771	0.10616
280	12 x 4.33	7 x 4.33	21.65	771	0.10862
280	18 x 3.10	19 x 3.10	21.7	768	0.11119
280	24 x 3.10	13 x 3.10	21.7	769	0.10855
280	30 x 3.10	7 x 3.10	21.7	770	0.10603
280	33 x 3.10	4 x 3.10	21.7	770	0.10482
315	18 x 3.29	19 x 3.29	23.03	865	0.09872
315	24 x 3.29	13 x 3.29	23.03	866	0.09638
315	30 x 3.29	7 x 3.29	23.03	867	0.09414
315	33 x 3.29	4 x 3.29	23.03	867	0.09306
355	18 x 3.50	19 x 3.50	24.5	979	0.08723
355	24 x 3.50	13 x 3.50	24.5	980	0.08516
355	30 x 3.50	7 x 3.50	24.5	981	0.08318
355	33 x 3.50	4 x 3.50	24.5	982	0.08223
400	18 x 3.71	19 x 3.71	25.97	1100	0.07763
400	24 x 3.71	13 x 3.71	25.97	1102	0.07579
400	30 x 3.71	7 x 3.71	25.97	1103	0.07403
400	33 x 3.71	4 x 3.71	25.97	1103	0.07318
450	18 x 3.94	19 x 3.94	27.58	1242	0.06883
450	24 x 3.94	13 x 3.94	27.58	1242	0.0672
450	30 x 3.94	7 x 3.94	27.58	1243	0.06564
450	33 x 3.94	4 x 3.94	27.58	1244	0.06489
500	18 x 4.15	19 x 4.15	29.05	1377	0.06204
500	24 x 4.15	13 x 4.15	29.05	1379	0.06057
500	30 x 4.15	7 x 4.15	29.05	1379	0.05916
500	33 x 4.15	4 x 4.15	29.05	1380	0.05849
500	33 x 3.23	28 x 3.23	29.07	1376	0.06162
500	42 x 3.23	19 x 3.23	29.07	1377	0.0603
500	48 x 3.23	13 x 3.23	29.07	1377	0.05945
500	54 x 3.23	7 x 3.23	29.07	1378	0.05862
560	18 x 4.39	19 x 4.39	30.73	1541	0.05545
560	24 x 4.39	13 x 4.39	30.73	1542	0.05413
560	30 x 4.39	7 x 4.39	30.73	1544	0.05287
560	33 x 4.39	4 x 4.39	30.73	1544	0.05227
560	33 x 3.42	28 x 3.42	30.78	1542	0.05496
560	42 x 3.42	19 x 3.42	30.78	1544	0.05378
560	48 x 3.42	13 x 3.42	30.78	1545	0.05302
560	54 x 3.42	7 x 3.42	30.78	1545	0.05229
630	18 x 4.66	19 x 4.66	32.62	1736	0.04921
630	24 x 4.66	13 x 4.66	32.62	1737	0.04804
630	30 x 4.66	7 x 4.66	32.62	1740	0.04692
630	33 x 4.66	4 x 4.66	32.62	1740	0.04638
630	33 x 3.63	28 x 3.63	32.67	1737	0.04879
630	42 x 3.63	19 x 3.63	32.67	1739	0.04774
630	48 x 3.63	13 x 3.63	32.67	1740	0.04707
630	54 x 3.63	7 x 3.63	32.67	1741	0.04641
710	33 x 3.85	28 x 3.85	34.65	1954	0.04337
710	42 x 3.85	19 x 3.85	34.65	1956	0.04244
710	48 x 3.85	13 x 3.85	34.65	1957	0.04184
710	54 x 3.85	7 x 3.85	34.65	1958	0.04126
800	33 x 4.09	28 x 4.09	36.81	2205	0.03843
800	42 x 4.09	19 x 4.09	36.81	2207	0.03761
800	48 x 4.09	13 x 4.09	36.81	2209	0.03707
800	54 x 4.09	7 x 4.09	36.81	2209	0.03656
900	33 x 4.33	28 x 4.33	38.97	2472	0.03429
900	42 x 4.33	19 x 4.33	38.97	2474	0.03355
900	48 x 4.33	13 x 4.33	38.97	2475	0.03308
900	54 x 4.33	7 x 4.33	38.97	2478	0.03262
1000	33 x 4.57	28 x 4.57	41.13	2781	0.03078
1000	42 x 4.57	19 x 4.57	41.13	2783	0.03012
1000	48 x 4.57	13 x 4.57	41.13	2786	0.0297
1000	54 x 4.57	7 x 4.57	41.13	2786	0.02928
1000	54 x 3.74	37 x 3.74	41.14	2779	0.03057
1000	63 x 3.74	28 x 3.74	41.14	2780	0.03013
1000	72 x 3.74	19 x 3.74	41.14	2782	0.0297
1120	54 x 3.96	37 x 3.96	43.56	3116	0.02754
1120	63 x 3.96	28 x 3.96	43.56	3118	0.02714
1120	72 x 3.96	19 x 3.96	43.56	3119	0.02675
1250	54 x 4.18	37 x 4.18	45.98	3472	0.02471
1250	63 x 4.18	28 x 4.18	45.98	3474	0.02436
1250	72 x 4.18	19 x 4.18	45.98	3476	0.02401
1400	54 x 4.43	37 x 4.43	48.73	3899	0.022
1400	63 x 4.43	28 x 4.43	48.73	3901	0.02169
1400	72 x 4.43	19 x 4.43	48.73	3904	0.02138
1600	54 x 4.73	37 x 4.73	52.03	4488	0.01949
1600	63 x 4.73	28 x 4.73	52.03	4491	0.01921
1600	72 x 4.73	19 x 4.73	52.03	4493	0.01893
