ACSR have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
| Aluminum Section/Steel Core Section | Number of Aluminum Wires | Aluminum Wire Diameter | Number of Steel Wires | Steel Wire Diameter | Calculated Cross-section | Overall Diameter | DC Resistance at 20 | Min. Breaking Load | Conductor Weight | Grease Weight |
| mm2 | mm | mm | mm2 | mm | Ω/km | kg/km | kg/km | |||
| (10/1,8) | 6 | 1,50 | 1 | 1,50 | 10,6/1,77 | 4,5 | 2,7064 | 4089 | 42,7 | 1,0 |
| (16/2,7) | 6 | 1,85 | 1 | 1,85 | 16/2,69 | 5,6 | 1,7818 | 6220 | 64,9 | 1,0 |
| (25/4,2) | 6 | 2,30 | 1 | 2,30 | 24,9/4,15 | 6,9 | 1,1521 | 9296 | 100,3 | 1,5 |
| (35/6,2) | 6 | 2,80 | 1 | 2,80 | 36,9/6,15 | 8,4 | 0,7774 | 13524 | 148,0 | 2,5 |
| 40/6,7 | 6 | 2,91 | 1 | 2,91 | 40/6,7 | 8,74 | 0,7172 | 14400 | 161,3 | |
| (50/8,0) | 6 | 3,20 | 1 | 3,20 | 48,2/8,04 | 9,6 | 0,5951 | 17112 | 195,0 | 3,0 |
| 63/10,5 | 6 | 3,66 | 1 | 3,66 | 63/10,5 | 10,97 | 0,4553 | 21630 | 254,0 | |
| (70/11) | 6 | 3,80 | 1 | 3,80 | 68/11,3 | 11,4 | 0,4218 | 24130 | 276,0 | 4,5 |
| (70/72) | 18 | 2,20 | 19 | 2,20 | 68,4/72,2 | 15,4 | 0,4194 | 96826 | 755,0 | 38,0 |
| (95/16) | 6 | 4,50 | 1 | 4,50 | 95,4/15,9 | 13,5 | 0,3007 | 33369 | 385,0 | 6,0 |
| (95/141) | 24 | 2,20 | 37 | 2,20 | 91,2/141 | 19,8 | 0,3146 | 180775 | 1357,0 | 69,0 |
| 100/16,7 | 6 | 4,61 | 1 | 4,61 | 100/16,7 | 13,82 | 0,2868 | 34333 | 403,2 | |
| (120/19) | 26 | 2,40 | 7 | 1,85 | 118/18,8 | 15,2 | 0,2440 | 41521 | 471,0 | 11,0 |
| (120/27) | 30 | 2,20 | 7 | 2,20 | 114/26,6 | 15,4 | 0,2531 | 49465 | 528,0 | 14,0 |
| 125/6,9 | 18 | 2,97 | 1 | 2,97 | 125/6,9 | 14,67 | 0,2304 | 29167 | 397,9 | |
| 125/20,4 | 26 | 2,47 | 7 | 1,92 | 125/20,4 | 15,67 | 0,2308 | 45694 | 503,5 | |
| (150/19) | 24 | 2,80 | 7 | 1,85 | 148/18,8 | 16,8 | 0,2046 | 46307 | 554,0 | 12 |
| (150/24) | 26 | 2,70 | 7 | 2,10 | 149/24,2 | 17,1 | 0,2039 | 52279 | 599 | 14 |
| (150/34) | 30 | 2,50 | 7 | 2,50 | 147/34,3 | 17,5 | 0,2061 | 62643 | 675 | 18 |
| 160/8,9 | 18 | 3,36 | 1 | 3,36 | 160/8,9 | 16,82 | 0,1800 | 36178 | 509,4 | |
| 160/26,1 | 26 | 2,80 | 7 | 2,18 | 160/26,1 | 17,73 | 0,1803 | 57689 | 644,5 | |
| (185/24) | 24 | 3,15 | 7 | 2,10 | 187/24,2 | 18,9 | 0,1540 | 58075 | 705 | 14 |
| (185/29) | 26 | 2,98 | 7 | 2,30 | 181/29 | 18,8 | 0,1591 | 62055 | 728 | 16 |
| (185/43) | 30 | 2,80 | 7 | 2,80 | 185/43,1 | 19,6 | 0,1559 | 77767 | 846 | 23 |
| (185/128) | 54 | 2,10 | 37 | 2,10 | 187/128 | 23,1 | 0,1543 | 183816 | 1525 | 63 |
| 200/11,1 | 18 | 3,76 | 1 | 3,76 | 200/11,1 | 18,81 | 0,1440 | 44222 | 636,7 | |
| 200/32,6 | 26 | 3,13 | 7 | 2,43 | 200/32,6 | 19,82 | 0,1442 | 70134 | 805,6 | |
| (205/27) | 24 | 3,30 | 7 | 2,20 | 205/26,6 | 19,8 | 0,1407 | 63740 | 774 | 15 |
| (240/32) | 24 | 3,60 | 7 | 2,40 | 244/31,7 | 21,6 | 0,1182 | 75050 | 921 | 17 |
| (240/39) | 26 | 3,40 | 7 | 2,65 | 236/38,6 | 21,6 | 0,1222 | 80895 | 952 | 22 |
| (240/56) | 30 | 3,20 | 7 | 3,20 | 241/56,3 | 22,4 | 0,1197 | 98253 | 1106 | 30 |
| (300/39) | 24 | 4,00 | 7 | 2,65 | 301/38,6 | 24,0 | 0,0958 | 90574 | 1132 | 22 |
| (300/48) | 26 | 3,80 | 7 | 2,95 | 295/47,8 | 24,1 | 0,0978 | 100623 | 1186 | 27 |
| (300/66) | 30 | 3,50 | 19 | 2,10 | 288,5/65,8 | 24,5 | 0,1000 | 117520 | 1313 | 37 |
| (300/67) | 30 | 3,50 | 7 | 3,50 | 288,5/67,3 | 24,5 | 0,1000 | 126270 | 1323 | 37 |
| (300/204) | 54 | 2,65 | 37 | 2,65 | 298/204 | 29,2 | 0,0968 | 284579 | 2428 | 102 |
| 315/21,8 | 45 | 2,99 | 7 | 1,99 | 315/21,8 | 23,83 | 0,0917 | 79030 | 1039,2 | |
| 315/51,3 | 26 | 3,93 | 7 | 3,05 | 315/51,3 | 24,87 | 0,0916 | 106834 | 1268,9 | |
| (330/30) | 48 | 2,98 | 7 | 2,30 | 335/29,1 | 24,8 | 0,0861 | 88848 | 1152 | 16 |
| (330/43) | 54 | 2,80 | 7 | 2,80 | 332/43,1 | 25,2 | 0,0869 | 103784 | 1255 | 23 |
| 400/27,7 | 45 | 3,36 | 7 | 2,24 | 400/27,7 | 26,91 | 0,0722 | 98356 | 1319,7 | |
| 400/51,9 | 54 | 3,07 | 7 | 3,07 | 400/51,9 | 27,64 | 0,0722 | 123037 | 1509,7 | |
| (400/18) | 42 | 3,40 | 7 | 1,85 | 381/18,8 | 26,0 | 0,0758 | 85600 | 1199 | 12 |
| (400/22) | 76 | 2,57 | 7 | 2,00 | 394/22 | 26,6 | 0,0733 | 95115 | 1261 | 12 |
| (400/51) | 54 | 3,05 | 7 | 3,05 | 394/51,1 | 27,5 | 0,0733 | 120481 | 1490 | 28 |
| (400/64) | 26 | 4,37 | 7 | 3,40 | 390/63,5 | 27,7 | 0,0741 | 129183 | 1572 | 35 |
| (400/93) | 30 | 4,15 | 19 | 2,50 | 406/93,2 | 29,1 | 0,0711 | 173715 | 1851 | 53 |
| 450/31,1 | 45 | 3,57 | 7 | 2,38 | 450/31,1 | 28,55 | 0,0646 | 107467 | 1484,6 | |
| 450/58,3 | 54 | 3,26 | 7 | 3,26 | 450/58,3 | 29,32 | 0,0642 | 138417 | 1698,4 | |
| (450/56) | 54 | 3,20 | 7 | 3,20 | 434/56,3 | 28,8 | 0,0666 | 131370 | 1640 | 30 |
| 500/34,6 | 45 | 3,76 | 7 | 2,51 | 500/34,6 | 30,09 | 0,0577 | 119407 | 1649,6 | |
| 500/64,8 | 54 | 3,43 | 7 | 3,43 | 500/64,8 | 30,90 | 0,0578 | 153796 | 1887,1 | |
| (500/26) | 42 | 3,90 | 7 | 2,20 | 502/26,6 | 30,00 | 0,0575 | 112548 | 1592,0 | 15 |
| (500/27) | 76 | 2,84 | 7 | 2,20 | 481/26,6 | 29,40 | 0,0600 | 112188 | 1537,0 | 15 |
| (500/64) | 54 | 3,40 | 7 | 3,40 | 490/63,5 | 30,60 | 0,0588 | 148257 | 1852,0 | 33 |
| (500/204) | 90 | 2,65 | 37 | 2,65 | 496/204 | 34,50 | 0,0580 | 319609 | 2979,0 | 105 |
| (500/336) | 54 | 3,40 | 61 | 2,65 | 490/336 | 37,50 | 0,0588 | 466649 | 4005,0 | 168 |
| (550/71) | 54 | 3,60 | 7 | 3,60 | 549/71,2 | 32,40 | 0,0526 | 166164 | 2076,0 | 38 |
| 560/38,7 | 45 | 3,98 | 7 | 2,65 | 560/38,7 | 31,84 | 0,0515 | 133736 | 1847,5 | |
| 560/70,9 | 54 | 3,63 | 19 | 2,18 | 560/70,9 | 32,70 | 0,0516 | 172592 | 2102,2 | |
| (600/72) | 54 | 3,70 | 19 | 2,20 | 580/72,2 | 33,20 | 0,0498 | 183835 | 2170,0 | 39 |
| 630/43,6 | 45 | 4,22 | 7 | 2,81 | 630/43,6 | 33,79 | 0,0458 | 150453 | 2078,5 | |
| 630/79,8 | 54 | 3,85 | 19 | 2,31 | 630/79,8 | 34,69 | 0,0459 | 191772 | 2365,0 | |
| (650/79) | 96 | 2,90 | 19 | 2,30 | 634/78,9 | 34,70 | 0,0456 | 200451 | 2372,0 | 42 |
| (700/86) | 96 | 3,02 | 19 | 2,40 | 687/85,9 | 36,20 | 0,0420 | 217775 | 2575,0 | 46 |
| 710/49,1 | 45 | 4,48 | 7 | 2,99 | 710/49,1 | 35,86 | 0,0406 | 169559 | 2342,4 | |
| 710/89,9 | 54 | 4,09 | 19 | 2,45 | 710/89,9 | 36,82 | 0,0407 | 216124 | 2665,3 | |
| (750/93) | 96 | 3,15 | 19 | 2,50 | 748/93,2 | 37,70 | 0,0386 | 234450 | 2800,0 | 49 |
| 800/34,6 | 72 | 3,76 | 7 | 2,51 | 800/34,6 | 37,61 | 0,0361 | 167407 | 2479,6 | |
| 800/66,7 | 84 | 3,48 | 7 | 3,48 | 800/66,7 | 38,30 | 0,0361 | 205433 | 2732,3 | |
| 800/101,3 | 54 | 4,34 | 19 | 2,61 | 800/101,3 | 39,09 | 0,0361 | 243520 | 3003,2 | |
| (800/105) | 96 | 3,30 | 19 | 2,65 | 821/105 | 39,70 | 0,0352 | 260073 | 3092,0 | 57 |
| 900/38,9 | 72 | 3,99 | 7 | 2,66 | 900/38,9 | 39,89 | 0,0321 | 188333 | 2789,5 | |
| 900/75 | 84 | 3,69 | 7 | 3,69 | 900/75 | 40,63 | 0,0321 | 226500 | 3073,9 | |
| 1000/43,2 | 72 | 4,21 | 7 | 2,80 | 1000/43,2 | 42,05 | 0,0289 | 209259 | 3099,4 | |
| (1000/56) | 76 | 4,10 | 7 | 3,20 | 1003,2/56,3 | 42,40 | 0,0288 | 224047 | 3210,0 | 30 |
| 1120/47,3 | 72 | 4,45 | 19 | 1,78 | 1120/47,3 | 44,50 | 0,0258 | 23428 | 3463,9 | |
| 1120/91,2 | 84 | 4,12 | 19 | 2,47 | 1120/91,2 | 45,32 | 0,0253 | 283168 | 3810,7 | |
| 1250/52,8 | 72 | 4,70 | 19 | 1,88 | 1250/52,8 | 47,02 | 0,0231 | 261750 | 3865,9 | |
| 1250/101,8 | 84 | 4,35 | 19 | 2,61 | 1250/101,8 | 47,88 |
Scroll horizontally to review complete specification columns.
Request Full TDSACSR have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. acsr cable china manufacturer acsr conductors for transmission line and distribution LEAVE MESSAGE SEND E-MAIL

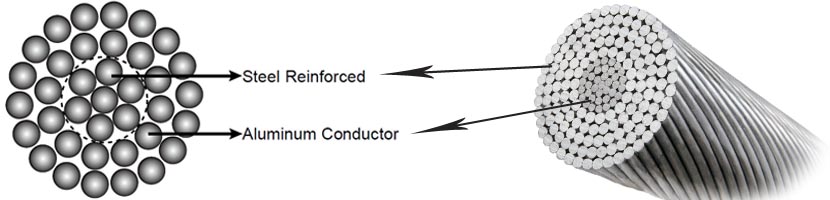

Product image and technical reference.
