Solid and stranded (classes AA and A) bare copper are suitable for overhead transmission and distribution applications. Stranded conductor of greater flexibility (classes B and C) are suitable for uninsulated hook up, jumpers, and grounds in electrical construction. Soft Drawn copper is unilay construction.
| Size (AWG) | Weight (lbs/1000 ft) | Diameter (mils) | Circular Mil Area (mils) | Hard Drawn | Medium-Hard Drawn | Soft-Drawn (Annealed) | Allowable Ampacity+ | |||
| Rated Strength> (lbs) | DC Resistane(ohms/1000 ft) @20°C | Rated Strength (lbs) | DC Resistane (ohms/1000 ft) @20°C | Rated Strength (lbs) | DC Resistane (ohms/1000 ft)@20C | |||||
| SOLID | ||||||||||
| 14 | 12.4 | 64.1 | 4110 | 213.5 | 2.626 | 166.6 | 2.613 | 124.2 | 2.525 | — |
| 13 | 15.7 | 72 | 5180 | 268.0 | 2.083 | 208.8 | 2.072 | 156.6 | 2.003 | — |
| 12 | 19.8 | 80.8 | 6530 | 336.9 | 1.652 | 261.2 | 1.643 | 197.5 | 1.588 | — |
| 11 | 24.9 | 90.7 | 8230 | 422.9 | 1.310 | 327.6 | 1.303 | 249.0 | 1.260 | — |
| 10 | 31.4 | 101.9 | 10380 | 529.2 | 1.039 | 410.4 | 1.033 | 314.0 | 0.999 | — |
| 9 | 39.6 | 114.4 | 13090 | 661.2 | 0.824 | 514.2 | 0.820 | 380.5 | 0.792 | — |
| 8 | 50 | 128.5 | 16510 | 826.0 | 0.653 | 643.9 | 0.650 | 479.8 | 0.628 | 95 |
| 7 | 63 | 144.3 | 20820 | 1030.0 | 0.518 | 806.6 | 0.515 | 605.0 | 0.498 | 105 |
| 6 | 79.4 | 162 | 26240 | 1280.0 | 0.411 | 1010.0 | 0.409 | 762.9 | 0.395 | 125 |
| 5 | 100.2 | 181.9 | 33090 | 1591.0 | 0.326 | 1265.0 | 0.324 | 961.9 | 0.313 | 145 |
| 4 | 126.3 | 204.3 | 41740 | 1970.0 | 0.258 | 1584.0 | 0.257 | 1213.0 | 0.249 | 170 |
| 3 | 159.3 | 229.4 | 52620 | 2439.0 | 0.205 | 1984.0 | 0.204 | 1530.0 | 0.197 | 195 |
| 2 | 200.9 | 257.6 | 66360 | 3003.0 | 0.163 | 2450.0 | .162 | 1929.0 | .156 | 225 |
| 1 | 253.3 | 289.3 | 83690 | 3688.0 | 0.129 | 3024.0 | 0.128 | 2432.0 | 0.124 | 260 |
| +Ampacity based on 75°C conductor temperature; 25°C ambient temperature; 2 ft./sec. wind in sun. | ||||||||||
| Size (AWG) | Stranding | Stranding Class | Weight (lbs/1000 ft) | Diameter (mils) | Hard Drawn | Medium-Hard Drawn | Soft-Drawn (Annealed) | Allowable Ampacity+ | ||||
| Individual Wires | Complete Conductor | Rated Strength (lbs) | DC Resistance (ohms/1000 ft) @20°C | Rated Strength (lbs) | DC Resistance (ohms/1000f) @20°C | Rated Strength (lbs) | DC Resistance (ohms/1000 ft) @20°C | |||||
| STRANDED | ||||||||||||
| 8 | 7 | B | 51 | 49 | 146 | 777 | 0.6663 | 610 | 0.6629 | 499 | 0.6408 | 95 |
| 6 | 7 | B | 81 | 61 | 184 | 1228 | 0.4191 | 959 | 0.4169 | 794 | 0.4030 | 130 |
| 4 | 7 | A, B | 128.9 | 77 | 232 | 1938 | 0.2636 | 1505 | 0.2622 | 1320 | 0.2534 | 170 |
| 3 | 7 | A, B | 162.5 | 87 | 260 | 2433 | 0.2090 | 1885 | 0.2079 | 1670 | 0.2010 | 200 |
| 2 | 7 | A, B | 204.9 | 97 | 292 | 3050 | 0.1660 | 2360 | 0.1650 | 2110 | 0.1578 | 230 |
| 1 | 7 | A | 258.4 | 109 | 328 | 3801 | 0.1316 | 2955 | 0.1309 | 2552 | 0.1252 | 265 |
| 1/0 | 7 | A, AA | 326.1 | 123 | 368 | 4752 | 0.1042 | 3705 | 0.1037 | 3221 | 0.1002 | 310 |
| 2/0 | 7 | A, AA | 410.9 | 138 | 414 | 5926 | 0.08267 | 4640 | 0.08224 | 4062 | 0.07949 | 355 |
| 2/0 | 19 | B | 410.9 | 84 | 418 | 6690 | 0.08267 | 4765 | 0.08224 | 4024 | 0.07949 | 355 |
| 3/0 | 7 | A, AA | 518.1 | 155 | 464 | 7366 | 0.06556 | 5812 | 0.06522 | 5118 | 0.06304 | 410 |
| 4/0 | 7 | A, AA | 653.3 | 174 | 522 | 9154 | 0.05199 | 7278 | 0.05172 | 6459 | 0.04999 | 480 |
| 4/0 | 19 | B | 653.3 | 106 | 528 | 9617 | 0.05199 | 7479 | 0.05172 | 6453 | 0.04999 | 480 |
| 250 | 19 | A | 771.9 | 115 | 574 | 11360 | 0.04400 | 8836 | 0.04378 | 7627 | 0.04231 | 530 |
| 250 | 37 | B | 771.9 | 82 | 575 | 11600 | 0.04400 | 8952 | 0.04378 | 7940 | 0.04231 | 530 |
| 300 | 19 | A | 926.2 | 126 | 628 | 13510 | 0.03667 | 10530 | .003648 | 9160 | 0.03526 | 590 |
| 350 | 19 | A | 1080.6 | 136 | 679 | 15590 | 0.03143 | 12200 | 0.03127 | 10680 | 0.03022 | 650 |
| 500 | 37 | A, B | 1543.8 | 116 | 814 | 22510 | 0.02200 | 17550 | 0.02189 | 15240 | 0.02116 | 810 |
| 600 | 37 | A, AA | 1852.5 | 127 | 891 | 27020 | 0.01834 | 21060 | 0.01825 | 18300 | 0.01763 | 910 |
| 750 | 61 | A, B | 2315.6 | 111 | 998 | 34090 | 0.01467 | 26510 | 0.01459 | 22890 | 0.01410 | 1040 |
| 1000 | 61 | A, B | 3087.5 | 128 | 1152 | 45030 | 0.01100 | 35100 | 0.01094 | 30500 | 0.01058 | 1240 |
| +Ampacity based on 75°C conductor temperature; 25°C ambient temperature; 2 ft./sec. wind in sun. | ||||||||||||
| USAWCPart # | Size AWG or kcmil | No. of Strands | Nom. Diam. Inches | Copper Weight lbs/ 1000 ft |
| Solid Tinned | ||||
| 8-01SOLSDTC | 8 | Solid | 0.1285 | 50 |
| 6-01SOLSDTC | 6 | Solid | 0.1620 | 79 |
| 4-01SOLSDTC | 4 | Solid | 0.2043 | 126 |
| 2-01SOLSDTC | 2 | Solid | 0.2576 | 201 |
| Stranded Tinned | ||||
| 8-01STRSDTC | 8 | 7 | 0.146 | 51 |
| 6-01STRSDTC | 6 | 7 | 0.184 | 81 |
| 4-01STRSDTC | 4 | 7 | 0.232 | 129 |
| 2-01STRSDTC | 2 | 7 | 0.292 | 205 |
| 1/0-01STRSDTC | 1/0 | 19 | 0.373 | 326 |
| 2/0-01STRSDTC | 2/0 | 19 | 0.419 | 411 |
| 3/0-01STRSDTC | 3/0 | 19 | 0.470 | 518 |
| 4/0-01STRSDTC | 4/0 | 19 | 0.528 | 653 |
| 250-01STRSDTC | 250 | 37 | 0.575 | 772 |
| 350-01STRSDTC | 350 | 37 | 0.681 | 1081 |
| 500-01STRSDTC | 500 | 37 | 0.813 | 1544 |
| Class A Stranded – Bare | ||||
| 1/0-01STRSDBCCA | 1/0 | 7 | 0.368 | 326 |
| 2/0-01STRSDBCCA | 2/0 | 7 | 0.414 | 411 |
| 3/0-01STRSDBCCA | 3/0 | 7 | 0.464 | 518 |
| 4/0-01STRSDBCCA | 4/0 | 7 | 0.522 | 653 |
| 250-01STRSDBCCA | 250 | 19 | 0.574 | 772 |
| 350-01STRSDBCCA | 350 | 19 | 0.679 | 1081 |
| 500-01STRSDBCCA | 500 | 37 | 0.813 | 1544 |
Scroll horizontally to review complete specification columns.
Request Full TDSApplication Solid and stranded (classes AA and A) bare copper are suitable for overhead transmission and distribution applications. Stranded conductor of greater flexibility (classes B and C) are suitable for uninsulated hook up, jumpers, and grounds in electrical construction. Soft Drawn copper is unilay construction. Sprcifications QINGZHOU's bare copper wire and cable meets or exceeds […] LEAVE MESSAGE SEND E-MAIL

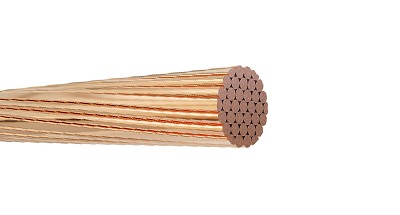

Product image and technical reference.
