CCS-Copper Clad Steel Wire

Copperclad Steel Wire is the ideal solution for grounding wire for power type applications. LEAVE MESSAGE SEND E-MAIL

Leave Message Send E-mail

CategoryCoated Steel Wire

SourceQZ Cable Group

Product Images

Product Overview

Application:

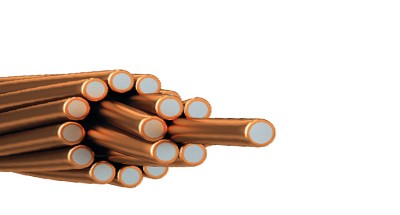

The copper-clad strand wire is shaped like a cable, which is made of a plurality of copper-clad single wires. Because of its multi-stranded properties, the electrical conductivity and tensile strength are relatively good, and the product can be customized to enhance the elongation rate by multiple heat treatment in the production process, which has increased the strength and toughness of the steel compared with the pure copper strand. Moreover, the good electrical conductivity and corrosion resistance of the copper material are maintained due to the principle of the skin effect. Therefore, it is very popular in many fields of lightning protection and grounding, especially in power plants,...

Standards

American Standard&Canadian national standards——ASTM-B227 B228 B901 International Electrotechnical Commission International Standards——IEC

International Electrotechnical Commission International Standards——IEC

Size Strands*single path Diameter Conductivity mm2 mm % 10 7*1.4 4.2 18%—70% 16 7*1.7 5.1 18%—70% 25 7*2.14 6.42 18%—70% 35 7*2.52 7356 50 7*3.00 9 18%—70% 70 19*1.44 10.7 18%—70% 95 19*2.52 12.6 18%—70% 120 19*2.80 14 18%—70% 150 19*3.15 15.75 18%—70% 185 37*2.52 17.64 18%—70% 240 37*2.85 19.95 18%—70% 300 37*3.15 21.7 18%—70% MORE

Technical Parameters

American Standard&Canadian national standards——ASTM-B227 B228 B901

Model	Nominal area	Wire quantity	Outer diameter		Weight/km		Pulling strength				20℃ Max resistance
	Nominal area	Wire quantity	Monofilament	Conductor	Grade 30	Grade 40	Grade 40 LC	Grade 30 LC	Grade 40 HS	Grade 30 HS	Grade 40	Grade 30
	mm2	mm	mm	Kg/km	kgf	Ω/km
19 No.5	318.7	19	4.62	23.11	2634	2660.8	7823	8800	8800	9778	0.1442	0.1923
19 No.6	252.7	19	4.11	20.57	2087.8	2110.2	6205	6980	6980	7756	0.1818	0.2424

19 No.7	200.45	19	3.66	18.31	1656.3	1674.1	4923	5538	5538	6154	0.2294	0.3058
19 No. 8	158.96	19	3.26	16.31	1313.6	1327.4	3904	4392	4392	4880	0.289	0.3852
19 No. 9	126.06	19	2.91	14.53	1041.7	1052.5	3094	3481	3481	3868	0.3645	0.4862
7 No. 4	148.06	7	5.19	15.57	1218.6	1231.4	3636	4090	4090	4544	0.3093	0.4124
7 No. 5	117.41	7	4.62	13.87	966.4	976.5	2882	3242	3242	3603	0.3898	0.5197
7 No. 6	93.09	7	4.11	12.34	766.2	774.2	2286	2572	2572	2857	0.4915	0.6552
7 No.7	73.87	7	3.67	11	608	614.4	1814	2040	2040	2267	0.6201	0.8268
7 No. 8	58.56	7	3.26	9.78	482	487	1438	1618	1618	1798	0.7812	1.0414
7 No. 9	46.43	7	2.9	8.71	382.1	386.1	1140	1282	1282	1425	0.9859	1.3144
7 No. 10	36.82	7	2.59	7.77	303.1	306.2	904	1017	1017	1131	1.2422	1.6559
3 No. 5	50.32	3	4.62	9.96	413.4	417.7	1304	1467	1467	1630	0.9082	1.2104
3 No. 6	39.9	3	4.11	8.86	327.8	331.2	1034	1163	1163	1293	1.1447	1.526
3 No. 7	31.64	3	3.66	7.9	259.9	262.6	820	923	923	1026	1.444	1.925
3 N0. 8	25.09	3	3.26	7.04	206.1	208.3	651	732	732	813	1.8193	2.4253
3 No. 9	19.9	3	2.91	6.27	163.5	165.1	516	580	580	645	2.2957	3.0605
3 No. 10	15.78	3	2.59	5.59	129.6	130.9	409	460	460	511	2.8929	3.8552
3 No. 12	9.92	3	2.05	4.42	81.5	82.4	260	292	292	325	4.5573	6.0731

International Electrotechnical Commission International Standards——IEC

Size	Strands*single path	Diameter	Conductivity
mm2	Strands*single path	mm	%
10	7*1.4	4.2	18%—70%
16	7*1.7	5.1	18%—70%
25	7*2.14	6.42	18%—70%
35	7*2.52	7356

50	7*3.00	9	18%—70%
70	19*1.44	10.7	18%—70%
95	19*2.52	12.6	18%—70%
120	19*2.80	14	18%—70%
150	19*3.15	15.75	18%—70%
185	37*2.52	17.64	18%—70%
240	37*2.85	19.95	18%—70%
300	37*3.15	21.7	18%—70%

Specification Table 3

Nominal Sectional Area mm2	structure Stock/diameter mm	Area mm2	Breaking load kg			D.C．Resistance Ω/km		Line quality Kg/km
Nominal Sectional Area mm2	structure Stock/diameter mm	Area mm2	40HS	30HS	30EHS	40%	30%	30%	40%
320	19/4.62	318.71	22788	25206	30350	0.1399	0.1865	2634.0	2660.8
250	19/4.12	252.71	18849	20788	25188	0.1764	0.2352	2087.9	2110.2
200	19/3.67	200.45	15599	17118	20797	0.2225	0.2966	1656.3	1674.2

160	19/3.26	158.97	12873	14079	17096	0.2805	0.3740	1313.6	1327.2
120	19/2.91	126.06	10609	11567	13884	0.3537	0.4715	1041.7	1052.6
150	7/5.19	148.06	10120	11240	13349	0.3000	0.4000	1218.7	1231.5
120	7/4.62	117.42	8396	9285	11181	0.3783	0.5043	966.41	976.53
90	7/4.12	93.097	6954	7661	9280	0.4771	0.6359	766.25	774.29
70	7/3.67	73.871	5747	6309	7661	0.6014	0.8019	608.06	614.46
60	7/3.26	58.561	4745	5189	6300	0.7586	1.0109	482.02	487.07
50	7/2.91	46.439	3908	4261	5116	0.9564	1.2750	382.16	386.18
35	7/2.59	36.826	3230	3519	4171	1.2061	1.6077	303.14	306.26
50	3/4.62	50.322	3798	4201	5380	0.8809	1.1743	413.41	417.73
40	3/4.12	39.903	3145	3465	4424	1.1106	1.4807	327.84	331.26
30	3/3.67	31.645	2600	2854	3593	1.4007	1.8672	259.98	262.66
25	3/3.26	25.097	2145	2347	2849	1.7662	2.3544	206.11	208.34
20	3/2.91	19.903	1768	1928	2326	2.2271	2.9690	163.55	165.19
15	3/2.59	15.781	1461	1592	1887	2.8082	3.7436	129.62	130.99
10	3/2.05	9.929	1014	4.4654	81.55	82.414

Scroll horizontally to review complete specification columns.

Request Full TDS

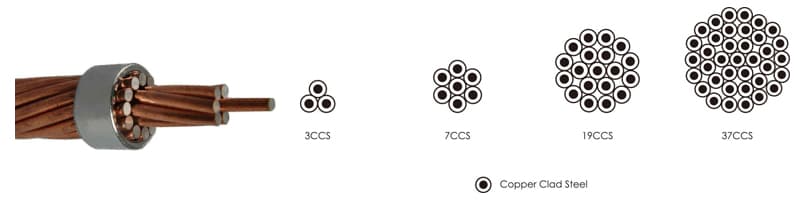

Structure & Technical Illustration
