Technical Grade

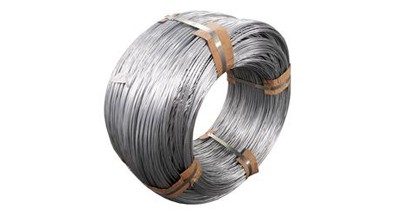

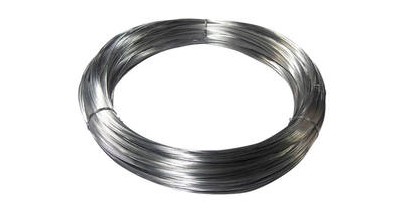

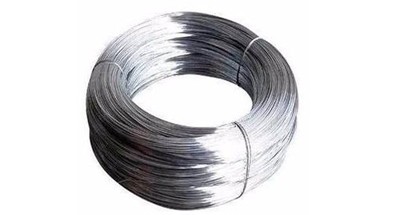

Galfan Zn-5% Al Mischmetal coating Steel

Zinc-5%Aluminum mischmetal alloy galvanized steel wire is used for Power Transmission and Distribution Line Hardware，Slope protection、Undersea optical cable armoured with low carbon galvanized steel wire，Overhead Electrical Conductors. LEAVE MESSAGE SEND E-MAIL

Leave Message Send E-mail

CategoryCoated Steel Wire

SourceQZ Cable Group

Product Images

Product Overview

Application

zinc–5 % aluminummischmetal (Zn–5Al–MM) alloy-coated, steel core wire for use in Overhead Electrical Conductors. ACSS ACSS/TW The high temperature low sag solution

Features

operates continuously at high temperatures up to 250°C, with proper steel coating, ensuring maximum utilization and performance; standard coating for high temperature operation is a Zn-5% Al Mischmetal coating so that customers can take full advantage of the 250°C continuous operating temperature rating. Galvanized coatings are rated only 180°C for continuous operation.

Technical Parameters

Specification Table 1

Specified Diameter of Coated Wire,mm	Area Density of Coating, min, oz/ft 2 of Uncoated Wire Surface
Class A	Class B	Class C
0.0500 to 0.0599, incl	0.60	1.20	1.80
0.0600 to 0.0749, incl	0.65	1.30	1.95
0.0750 to 0.0899, incl	0.70	1.40	2.10
0.0900 to 0.1039, incl	0.75	1.50	2.25

0.1040 to 0.1199, incl	0.80	1.60	2.40
0.1200 to 0.1399, incl	0.85	1.70	2.55
0.1400 to 0.1799, incl	0.90	1.80	2.70
0.1800 to 0.1900, incl	1.00	2.00	3.00

Specification Table 2

Specified Diameter, in.	Stress at 1 % Extension, min, Ksi			Ultimate Tensile Strength, min, MPa			Elongation in 250 mm, min, %
Specified Diameter, in.	Class A	Class B	Class C	Class A	Class B	Class C	Class A	Class B	Class C
1.60 to 2.30, incl	190	180	170	210	200	190	3.0	3.0	3.0
Over 2.30 to 3.05, incl	185	175	165	205	195	185	3.5	3.0	3.0
Over 3.05 to 3.60, incl	180	170	160	205	195	185	4.0	3.0	3.0
Over 3.60 to 4.80, incl	170	160	155	200	185	180	4.0	4.0	4.0

Specification Table 3

Specified Diameter of Coated Wire, mm	Area Density of Coating, min.g/m2 of Uncoated Wire Surface
Class A	Class C
1.27 to 1.52, incl	183	549
1.53 to 1.90, incl	198	594
1.91 to 2.28, incl	214	642
2.29 to 2.64, incl	229	687
2.65 to 3.04, incl	244	732

3.05 to 3.55, incl	259	777
3.56 to 4.57, incl	274	822

Specification Table 4

Specified Diameter, mm	Stress at 1 % Extension, min, MPa		Ultimate Tensile Strength, min, MPa		Elongation in 250 mm, min, %
Class A	Class C	Class A	Class C	Class A	Class C
1.27 to 2.28, incl	1310	1170	1450	1310	3.0	3.0
2.29 to 3.04, incl	1280	1140	1410	1280	3.5	3.0
3.05 to 3.55, incl	1240	1100	1410	1280	4.0	3.0
3.56 to 4.82, incl	1170	1070	1380	1240	4.0	4.0

Specification Table 5

Specified Diameter		Stress at 1 % Extension, min		Ultimate Tensile Strength, min		Elongation in 10 in. or 250 mm,
in.	mm	ksi	MPa	ksi	MPa	min %
0.0500 to 0.0899, incl	1.270 to 2.283, incl	210	1450	235	1620	3.0
0.0900 to 0.1199, incl	2.286 to 3.045, incl	205	1410	230	1590	3.0
0.1200 to 0.1399, incl	3.048 to 3.553, incl	200	1380	225	1550	3.5
0.1400 to 0.1900, incl	3.556 to 4.823, incl	195	1340	220	1520	3.5

Specification Table 6

Specified Diameter, mm	Stress at 1% Extension,	Ultimate Tensile Strength,	Elongation in 250 mm, min %
min, MPa	min, MPa
1.27 to 2.28, incl	1550	1825	3.0
2.29 to 3.04, incl	1515	1790	3.0
3.05 to 3.55, incl	1480	1760	3.5
3.56 to 4.82, incl	1450	1725	3.5

Specification Table 7

Specified Diameter, mm	Stress at 1% Extension,	Ultimate Tensile Strength,	Elongation in 250 mm, min %
min, MPa	min, MPa
1.27 to 2.28, incl	1580	1965	3.0
2.29 to 3.04, incl	1550	1900	3.0
3.05 to 3.55, incl	1515	1860	3.5
3.56 to 4.82, incl	1480	1825	3.5

Scroll horizontally to review complete specification columns.

Request Full TDS
