PE AND XLPE INSULATED AERIAL BUNDLE CABLES

The aerial bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulated aluminium phase conductors are helically wound over it LEAVE MESSAGE SEND E-MAIL

Leave Message Send E-mail

CategoryAerial Bundled Cable

SourceQZ Cable Group

Product Images

Product Overview

Technical Parameters

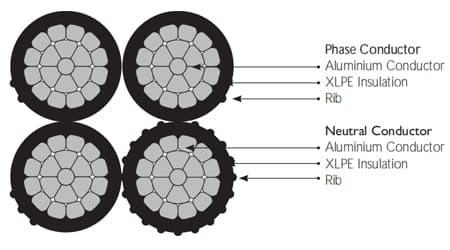

IEC 60502 & TNB Specifcation（0.6/1 (1.2) kV）Cables without street lighting

IEC 60502-1	Power Cables With Extruded Insulation And Their Accessories For Rated Voltages From l kV ( Um = l.2 kV) Up To 30 kV ( Um = 36 kV ).
TNB	Specification for Low Voltage Aerial Bundle Cable
AS/NZS 3560.1	Electric cables – Cross-linked polyethylene insulated – Aerial bundled – For working voltage up to and including 0.6/l(l.2) kV
BS 7870-5	Polymeric insulated aerial bundled conductors (ABC ) of rated voltage 0.6/l kV for overhead distribution
DES/LV/ABC	Specification for Low Voltage Aerial Bundle Conductor (Aluminium )
AS/NZS 3599.1	Electric cables – Aerial bundled – Polymeric insulated – Voltages 6.35/ll (l2) kV and l2.7/22 (24) kV
AS/NZS 3599.2	Electric cables – Aerial bundled – Polymeric insulated – Voltages 6.35/ll (l2) kV and l2.7/22 (24) kV

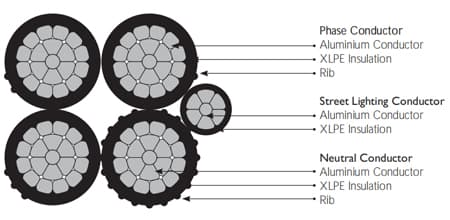

IEC 60502 & TNB Specifcation（0.6/1 (1.2) kV）Cables with street lighting

Phase conductor
Nominal cross-sectional area	mm2	16 *	16 *	25	35	50	70	95	120	150	l85
Number of cores	1	3	3	3	3	3	3	3	3	3
Minimum number of wires	6	6	6	6	6	12	15	15	30	30
Nominal insulation thickness	mm	1	1	1.2	1.2	l.4	l.4	1.6	1.6	l.8	2

Diameter of insulated core	mm	6.8	6.8	8.5	9.5	11.2	13	15.1	16.6	l8.4	20.6
Max. dc resistance at 20°C	ohm/km	1.91	1.91	1.2	0.868	0.64l	0.443	0.32	0.253	0.206	0.l64
Current rating at still wind, ambient temperature =30°C, conductor temperature = 75°C	A	61	61	84	l04	129	167	209	246	283	332
Maximum voltage drop	mV/A/m	4.67	4.05	2.54	l.84	1.36	0.95	0.69	0.55	0.46	0.37
Messenger conductor
Nominal cross-sectional area	mm2	25	25	25	25	35	50	70	70	95	120
Minimum number of wires	6	6	6	6	6	6	12	12	15	15
Nominal insulation thickness	mm	1.2	1.2	1.2	1.2	1.2	l.4	l.4	l.4	1.6	1.6
Diameter of insulated core	mm	8.5	8.5	8.5	8.5	9.5	11.2	13.1	13.1	15.1	16.6
Max. dc resistance at 20°C	ohm/km	1.312	1.312	1.312	1.312	0.943	0.693	0.469	0.469	0.349	0.273
Calculated breaking load	kN	6.4	6.4	6.4	6.4	8.9	12.1	l8.0	l8.0	24.2	30.8
Completed cable
Approx. overall diameter	mm	15.3	19	23.2	25.6	30	34.9	40.6	44.l	49.2	54.9
Approx. weight of cable	kg/km	160	290	400	500	680	920	1270	1510	l,870	2340
Packing length	m/drum	1000	1000	1000	1000	1000	1000	500	500	500	500

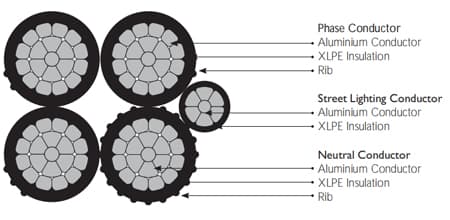

AL/XLPE INSULATED AERIAL BUNDLED CABLES AS/NZS 3560.1 0.6/1 (1.2) kV

Phase conductor
Nominal cross-sectional area	mm2	25	35	50	70	95 *	120	150	185*
Number of cores	3	3	3	3	3	3	3	3
Minimum number of wires	6	6	6	12	15	15	30	30
Nominal insulation thickness	mm	1.2	1.2	l.4	l.4	1.6	1.6	l.8	2

Diameter of insulated core	mm	8.5	9.5	11.2	13	15.1	16.6	l8.4	20.6
Max. dc resistance at 20°C	ohm/km	1.2	0.868	0.64l	0.443	0.32	0.253	0.206	0.l64
Current rating at still wind, ambient temperature = 30°C, conductor temperature = 75°C	A	84	l04	129	167	209	246	283	332
Maximum voltage drop	mV/A/m	2.54	l.84	1.36	0.95	0.69	0.55	0.46	0.37
Messenger conductor
Nominal cross-sectional area	mm2	25	25	35	50	70	70	95	120
Minimum number of wires	6	6	6	6	12	12	15	15
Nominal insulation thickness	mm	1.2	1.2	1.2	l.4	l.4	l.4	1.6	1.6
Diameter of insulated core	mm	8.5	8.5	9.5	11.2	13.1	13.1	15.1	16.6
Max. dc resistance at 20°C	ohm/km	1.312	1.312	0.943	0.693	0.469	0.469	0.349	0.273
Calculated breaking load	kN	6.4	6.4	8.9	12.1	l8.0	l8.0	24.2	30.8
Street lighting conductor
Nominal cross-sectional area	mm2	16	16	16	16	16	16	16	16
Minimum number of wires	6	6	6	6	6	6	6	6
Nominal insulation thickness	mm	1	1	1	1	1	1	1	1
Diameter of insulated core	mm	6.8	6.8	6.8	6.8	6.8	6.8	6.8	6.8
Max. dc resistance at 20°C	ohm/km	1.91	1.91	1.91	1.91	1.91	1.91	1.91	1.91
Completed cable
Approx. overall diameter	mm	23.2	25.6	30	34.9	40.6	44.l	49.2	54.9
Approx. weight of cable	kg/km	470	560	740	980	1330	l,580	l,940	2,4l0
Packing length	m/drum	1000	1000	1000	1000	500	500	500	500

IEC 60502 & DES/LV/ABC 0.6/1 (1.2) kV Cables without street lighting

Phase conductor
Nominal cross-sectional area	mm2	16	25	35	50	95	25	35	50
Number of cores	1	1	1	1	1	2	2	2
Minimum number of wires	6	6	6	6	15	6	6	6
Nominal insulation thickness	mm	1.3	1.3	1.3	1.5	1.7	1.3	1.3	1.5

Diameter of insulated core	mm	7.5	8.8	9.8	ll.4	15.3	8.8	9.8	ll.4
Max. dc resistance at 20°C	ohm/km	1.91	1.2	0.868	0.641	0.32	1.2	0.868	0.64l
Current rating for typical Australian installation conditions Conductor temperature = 80°C	A	78	105	125	150	230	97	120	l40
Neutral conductor
Nominal cross-sectional area	mm2	16	25	35	50	95	25	35	50
Minimum number of wires	6	6	6	6	15	6	6	6
Nominal insulation thickness	mm	1.3	1.3	1.3	1.5	1.7	1.3	1.3	1.5
Diameter of insulated core	mm	7.5	8.8	9.8	ll.4	15.3	8.8	9.8	ll.4
Max. dc resistance at 20°C	ohm/km	1.91	1.2	0.868	0.64l	0.32	1.2	0.868	0.64l
Completed cable
Minimum breaking load	kN	4.4	7	9.8	l4.0	26.6	10.5	l4.7	21
Approx. overall diameter	mm	15	17.6	19.6	22.8	30.6	19	21.1	24.6
Approx. weight of cable	kg/km	l40	210	270	370	680	310	4l0	550
Packing length	m/drum	1000	1000	1000	1000	500	1000	1000	1000
Phase conductor
Nominal cross-sectional area	mm2	16	25	35	50	70	95	120	150
Number of cores	3	3	3	3	3	3	3	3
Minimum number of wires	6	6	6	6	12	15	15	15
Nominal insulation thickness	mm	1.3	1.3	1.3	1.5	1.5	1.7	1.7	1.7
Diameter of insulated core	mm	7.5	8.8	9.8	ll.4	13.2	15.3	l6.8	l8.2
Max. dc resistance at 20°C	ohm/km	1.91	1.2	0.868	0.64l	0.443	0.32	0.253	0.206
Current rating for typical Australian installation conditions Conductor temperature = 80°C	A	74	97	120	l40	175	215	250	280
Neutral conductor
Nominal cross-sectional area	mm2	16	25	35	50	70	95	120	150
Minimum number of wires	6	6	6	6	12	15	15	15
Nominal insulation thickness	mm	1.3	1.3	1.3	1.5	1.5	1.7	1.7	1.7
Diameter of insulated core	mm	7.5	8.8	9.8	ll.4	13.2	15.3	l6.8	l8.2
Max. dc resistance at 20°C	ohm/km	1.91	1.2	0.868	0.64l	0.443	0.32	0.253	0.206
Completed cable
Minimum breaking load	kN	8.8	l4.0	19.6	28	39.2	53.2	67.2	84
Approx. overall diameter	mm	l8.l	21.2	23.7	27.5	31.9	36.9	40.6	43.9
Approx. weight of cable	kg/km	290	4l0	550	740	1000	1370	1690	2020
Packing length	m/drum	1000	1000	1000	1000	1000	500	500	500

IEC 60502 & DES/LV/ABC 0.6/1 (1.2) kV Cables with street lighting

Phase conductor
Nominal cross-sectional area	mm2	25	35	50	70	95	25	35	50	70	95	120
Number of cores	1	1	1	1	1	3	3	3	3	3	3
Minimum number of wires	6	6	6	12	15	6	6	6	12	15	15
Nominal insulation thickness	mm	1.3	1.3	1.5	1.5	1.7	1.3	1.3	1.5	1.5	1.7	1.7

Diameter of insulated core	mm	8.8	9.8	11.5	13.2	15.3	8.8	9.8	11.5	13.2	15.3	16.8
Max. dc resistance at 20°C	ohm/km	1.2	0.868	0.641	0.443	0.32	1.2	0.868	0.641	0.443	0.32	0.253
Current rating at still wind ambient temperature = 30°C Conductor temperature = 75°C	A	84	104	129	167	209	84	104	129	167	209	283
Neutral conductor
Nominal cross-sectional area	mm2	25	35	50	70	95	25	35	50	70	95	120
Minimum number of wires	6	6	6	12	15	6	6	6	12	15	15
Nominal insulation thickness	mm	1.3	1.3	1.5	1.5	1.7	1.3	1.3	1.5	1.5	1.7	1.7
Diameter of insulated core	mm	8.8	9.8	11.5	13.2	15.3	8.8	9.8	11.5	13.2	15.3	16.8
Max. dc resistance at 20°C	ohm/km	1.2	0.868	0.641	0.443	0.32	1.2	0.868	0.641	0.443	0.32	0.253
Completed cable
Minimum breaking load	kN	8.2	11.2	15.2	22	30.6	l6.4	22.4	30.4	44	61.2	77.6
Approx. overall diameter	mm	17.6	19.6	23	26.4	30.6	21.2	23.7	27.8	31.9	36.9	40.6
Approx. weight of cable	kg/km	210	270	360	500	680	4l0	550	730	1000	1370	1690
Packing length	m/drum	1000	1000	1000	1000	500	1000	1000	1000	1000	500	500

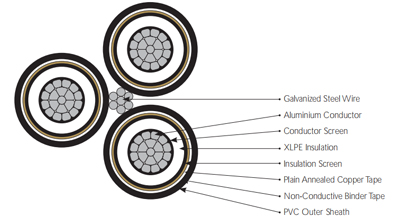

AERIAL BUNDLED CABLES AL/XLPE/SCT/PVC CABLES IEC 60502 & TNB Specifcation 6.35/11 (12) kV

Phase conductor
Nominal cross-sectional area	mm2	50	70	95
Number of cores	3	3	3
Minimum number of wires	6	12	15
Nominal insulation thickness	mm	1.5	1.5	1.7

Diameter of insulated core	mm	11.5	13.2	15.3
Max. dc resistance at 20°C	ohm/km	0.64l	0.443	0.32
Current rating at still wind, ambient temperature = 30°C conductor temperature = 75°C	A	129	167	209
Neutral conductor
Nominal cross-sectional area	mm2	50	70	95
Minimum number of wires	6	12	15
Nominal insulation thickness	mm	1.5	1.5	1.7
Diameter of insulated core	mm	11.5	11.5	15.3
Max. dc resistance at 20°C	ohm/km	0.64l	0.443	0.32
Street lighting conductor
Nominal cross-sectional area	mm2	25	25	25
Minimum number of wires	6	6	6
Nominal insulation thickness	mm	1.3	1.3	1.3
Diameter of insulated core	mm	8.8	8.8	8.8
Max. dc resistance at 20°C	ohm/km	1.2	1.2	1.2
Completed cable
Minimum breaking load	kN	34.5	48.l	65.3
Approx. overall diameter	mm	29.8	33.6	38.2
Approx. weight of cable	kg/km	830	1100	l470
Packing length	m/drum	1000	1000	500

AERIAL BUNDLED CABLES AL/XLPE/SCT/PVC CABLES IEC 60502 & TNB Specifcation 12.7/22 (24) kV

Phase conductor
Nominal cross-sectional area	mm2	25	35
Number of cores	3	3
Minimum number of wires	6	6
Nominal insulation thickness	mm	l.4	l.4

Diameter of insulated core	mm	8.9	9.9
Max. dc resistance at 20°C	ohm/km	1.2	0.868
Minimum breaking load	kN	3.5	4.9
Current rating at still wind, ambient temperature = 30°C, conductor temperature = 75°C	A	84	104
Neutral Conductor
Nominal cross-sectional area	mm2	25	35
Minimum number of wires	6	6
Nominal insulation thickness	mm	l.4	l.4
Diameter of insulated core	mm	8.9	9.9
Max. dc resistance at 20°C	ohm/km	1.2	0.868
Minimum breaking load	kN	3.5	4.9
Completed cable
Approx. overall diameter	mm	21.5	23.9
Approx. weight of cable	kg/km	420	550
Packing length	m/drum	1000	1000

AERIAL BUNDLED CABLES AL/XLPE/SCT/PVC CABLES IEC 60502 & TNB Specifcation 19/33 (36) kV

Phase conductor
Nominal cross-sectional area	mm2	120	l85
Number of cores	3	3
Minimum number of wires	15	30
Nominal insulation thickness	mm	1.7	2.2

Diameter of insulated core	mm	17	21
Max. dc resistance at 20°C	ohm/km	0.253	0.l64
Minimum breaking load	kN	l6.8	25.9
Current rating at still wind, ambient temperature = 30°C, conductor temperature = 75°C	A	246	332
Neutral conductor
Nominal cross-sectional area	mm2	120	l85
Minimum number of wires	15	30
Nominal insulation thickness	mm	1.7	2.2
Diameter of insulated core	mm	17	21
Max. dc resistance at 20°C	ohm/km	0.253	0.l64
Minimum breaking load	kN	l6.8	25.9
Street lighting conductor
Nominal cross-sectional area	mm2	25	25
Minimum number of wires	6	6
Nominal insulation thickness	mm	l.4	l.4
Diameter of insulated core	mm	8.9	8.9
Max. dc resistance at 20°C	ohm/km	1.2	1.2
Completed cable
Approx. overall diameter	mm	43.8	50.7
Approx. weight of cable	kg/km	l,800	2700
Packing length	m/drum	500	500

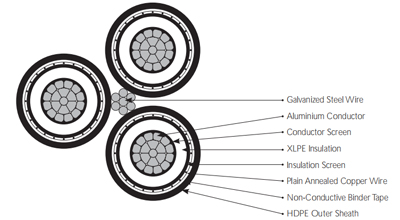

AL/XLPE/SCW/HDPE AERIAL BUNDLED CABLES AS/NZS 3599.1 (Light Duty Screen) 6.35/11 (12) kV

Phase conductor
Nominal cross-sectional area	mm2	50	70	95	120	150	l85	240
Number of cores	3	3	3	3	3	3	3
Minimum number of wires	6	12	15	15	15	30	30
Nominal diameter of conductor	mm	8.l	9.7	11.5	12.9	l4.3	16.1	l8.4

Nominal thickness of XLPE insulation	mm	3.4	3.4	3.4	3.4	3.4	3.4	3.4
Metallic screening approx. thickness of copper tape	mm	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Nominal thickness of outer sheath	mm	2.3	2.3	2.3	2.3	2.3	2.3	2.3
Nominal diameter over sheathing	mm	23	24.6	26.3	27.8	29.2	30.9	33.3
Max. dc resistance at 20°C	ohm/km	0.64l	0.443	0.32	0.253	0.206	0.l64	0.125
Earth fault current carrying capacity of metallic screen at
-1 second ( 1 Core )	kA	1.57	1.72	1.88	2.01	2.l4	2.3	2.52
-3 seconds ( 1 Core )	kA	0.9	0.99	l.08	1.16	1.23	1.33	l.45
Messenger – Galvanized steel wire
Nominal cross-sectional area	mm2	50	50	50	50	50	50	50
Stranding	No./mm	7/3.l5	7/3.l5	7/3.l5	7/3.l5	7/3.l5	7/3.l5	7/3.l5
Direction of the outermost layer Righthand (Z)
Overall diameter	mm	9.45	9.45	9.45	9.45	9.45	9.45	9.45
Minimum breaking load	kg	6270	6270	6270	6270	6270	6270	6270
Completed cable
Approx. overall diameter	mm	55	59	62	65	67	71	75
Approx. weight of cable	kg/km	2540	2890	3300	3660	4040	4540	5290
Packing length	m/drum	500	500	500	500	500	500	500

AL/XLPE/SCW/HDPE AERIAL BUNDLED CABLES AS/NZS 3599.1 (Heavy Duty Screen) 6.35/11 (12) kV

Phase conductor
Nominal cross.sectional area	mm2	50	70	95	120	150	l85	240
Number of cores	3	3	3	3	3	3	3
Minimum number of wires	6	12	15	15	15	30	30
Nominal diameter of conductor	mm	8.l	9.7	11.5	12.9	l4.3	16.1	l8.4

Nominal thickness of XLPE insulation	mm	5.5	5.5	5.5	5.5	5.5	5.5	5.5
Metallic screening approx. thickness of copper tape	mm	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Nominal thickness of outer sheath	mm	2.3	2.3	2.3	2.3	2.3	2.3	2.3
Nominal diameter over sheathing	mm	27.2	28.8	30.5	32	33.4	35.1	37.5
Max. dc resistance at 20°C	ohm/km	0.64l	0.443	0.32	0.253	0.206	0.l64	0.125
Earth fault current carrying capacity of metallic screen at
-1 second ( 1 Core )	kA	1.96	2.11	2.26	2.4	2.53	2.68	2.9
-3 seconds ( 1 Core )	kA	1.13	1.21	1.31	l.38	l.46	1.55	1.67
Messenger – Galvanized steel wire
Nominal cross-sectional area	mm2	50	50	50	50	50	50	50
Stranding	No./mm	7/3.l5	7/3.l5	7/3.l5	7/3.l5	7/3.l5	7/3.l5	7/3.l5
Direction of the outermost layer Right-hand (Z)
Overall diameter	mm	9.45	9.45	9.45	9.45	9.45	9.45	9.45
Minimum breaking load	kg	6270	6270	6270	6270	6270	6270	6270
Completed cable
Approx. overall diameter	mm	64	67	70	73	75	78	83
Approx. weight of cable	kg/km	3150	3540	3980	4360	4770	5300	6100
Packing length	m/drum	500	500	500	500	500	250	250

AL/XLPE/SCW/HDPE AERIAL BUNDLED CABLES AS/NZS 3599.1 (Light Duty Screen) 12.7/22 (24) kV

Phase conductor
Nominal cross-sectional area	mm2	50	70	95	120	150	l85	240
Number of cores	3	3	3	3	3	3	3
Minimum number of wires	6	12	15	15	15	30	30
Nominal diameter of conductor	mm	8.l	9.7	11.5	12.9	l4.3	16.1	l8.4

Nominal thickness of XLPE insulation	mm	8	8	8	8	8	8	8
Metallic screening approx. thickness of copper tape	mm	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Nominal thickness of outer sheath	mm	2.3	2.3	2.3	2.3	2.3	2.3	2.3
Nominal diameter over sheathing	mm	32.2	33.8	35.5	37	38.4	40.l	42.5
Max. dc resistance at 20°C	ohm/km	0.64l	0.443	0.32	0.253	0.206	0.l64	0.125
Earth fault current carrying capacity of metallic screen at
-1 second ( 1 Core )	kA	2.4l	2.56	2.72	2.86	2.99	3.l4	3.36
-3 seconds ( 1 Core )	kA	1.39	l.48	1.57	1.65	1.72	l.8l	l.94
Messenger – Galvanized steel wire
Nominal cross.sectional area	mm2	50	50	50	50	50	50	50
Stranding	No./mm	7/3.l5	7/3.l5	7/3.l5	7/3.l5	7/3.l5	7/3.l5	7/3.l5
Direction of the outermost layer	Righthand (Z)
Overall diameter	mm	9.45	9.45	9.45	9.45	9.45	9.45	9.45
Minimum breaking load	kg	6270	6270	6270	6270	6270	6270	6270
Completed cable
Approx. overall diameter	mm	73	76	79	82	84	87	91
Approx. weight of cable	kg/km	3980	4400	4880	5300	5740	6310	7160
Packing length	m/drum	500	500	500	250	250	250	250

AL/XLPE/SCW/HDPE AERIAL BUNDLED CABLES AS/NZS 3599.1 (Heavy Duty Screen) 12.7/22 (24) kV

Phase conductor
Nominal cross-sectional area	mm2	35	35	50	70	95	120	150	l85
Number of cores	3	3	3	3	3	3	3	3
Minimum number of wires	6	6	6	12	15	l8	l8	30
Nominal diameter of conductor	mm	7	7	8.l	9.7	l4.5	12.9	l4.3	16.1

Minimum thickness of conductor screen	mm	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3
Nominal thickness of XLPE insulation	mm	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4
Minimum thickness of insulation screen	mm	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6
No. and diameter of metallic screening approx. of copper wire	no./mm	24/0.85	24/0.85	24/0.85	24/0.85	24/0.85	24/0.85	24/0.85	24/0.85
Nominal thickness of outer sheath	mm	l.8	l.8	l.8	l.8	l.8	l.8	l.8	1.9
Nominal diameter over sheathing	mm	24.2	24.2	25.1	26.7	28.4	29.9	31.3	33.2
Max. dc resistance at 20°C	ohm/km	0.868	0.868	0.64l	0.443	0.32	0.253	0.206	0.l64
Current rating at Ambient temperature = 30°C	A	l85	l85	210	260	315	365	4l5	475
Ambient temperature = 40°C Solar radiation = IOOOw/m2 Wind speed = lm/s	A	155	155	l85	230	280	325	370	425
Earth fault current carrying capacity of metallic screen at -1 second ( 1 core )	kA	2	2	2	2	2	2	2	2
Messenger – Galvanized steel wire
Stranding	No./mm	7/2.0	19/2.0	l9/2.0	l9/2.0	l9/2.0	l9/2.0	l9/2.0	l9/2.0
Direction of the outermost layer	Righthand (Z)
Overall diameter	mm	6	10	10	10	10	10	10	10
Completed cable
Approx. overall diameter	mm	54.4	58.4	60.1	63.4	66.8	69.8	72.6	76.4
Approx. weight of cable	kg/km	l890	2190	2320	2610	2960	3260	3590	4060
Packing length	m/drum	500	500	500	500	500	500	250	250

AERIAL BUNDLED CABLES AL/XLPE/HDPE AS/NZS 3599.2 6.35/11 (12) kV

Phase conductor
Nominal cross.sectional area	mm2	35	35	50	70	95	120	150	l85
Number of cores	3	3	3	3	3	3	3	3
Minimum number of wires	6	6	6	12	15	l8	l8	30
Nominal diameter of conductor	mm	7	7	8.l	9.7	11.5	12.9	l4.3	16.1

Minimum thickness of conductor screen	mm	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3
Nominal thickness of XLPE insulation	mm	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4
Minimum thickness of insulation screen	mm	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6
No. and diameter of metallic screening approx. of copper wire	no./mm	40/0.85	40/0.85	23/l.35	32/l.35	38/l.35	38/l.35	38/l.35	38/l.35
Nominal thickness of outer sheath	mm	l.8	l.8	l.8	l.8	l.8	l.8	l.8	1.9
Nominal diameter over sheathing	mm	24.2	24.2	26.1	27.7	29.4	30.9	32.3	34.2
Max. dc resistance at 20°C	ohm/km	0.868	0.868	0.64l	0.443	0.32	0.253	0.206	0.l64
Current rating at Ambient temperature = 30°C	A	l85	l85	210	260	315	365	4l5	475
Ambient temperature = 40°C Solar radiation = I000w/m2 Wind speed = lm/s	A	155	155	l85	230	280	325	370	425
Earth fault current carrying capacity of metallic screen at -1 second ( 1 Core )	kA	3.3 *	3.3 *	4.8*	6.8*	8	8	8	8
Messenger – Galvanized steel wire
Stranding	No./mm	7/2.0	l9/2.0	l9/2.0	l9/2.0	l9/2.0	l9/2.0	l9/2.0	l9/2.0
Direction of the outermost layer	Right-hand (Z)
Overall diameter	mm	6	10	10	10	10	10	10	10
Completed cable
Approx. overall diameter	mm	54.4	58.4	62.1	65.4	68.8	7l.8	74.6	78.4
Approx. weight of cable	kg/km	2150	2440	2880	3540	4l30	4440	4770	5240
Packing length	m/drum	500	500	500	500	500	500	250	250

AERIAL BUNDLED CABLES AL/XLPE/HDPE AS/NZS 3599.2 12.7/22 (24) kV

Phase conductor
Nominal cross-sectional area	mm2	35	35	50	70	95	120	150	l85
Number of cores	3	3	3	3	3	3	3	3
Minimum number of wires	6	6	6	12	15	l8	l8	30
Nominal diameter of conductor	mm	7	7	8.l	9.7	11.5	12.9	l4.3	16.1

Minimum thickness of conductor screen	mm	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3
Nominal thickness of XLPE insulation	mm	5.5	5.5	5.5	5.5	5.5	5.5	5.5	5.5
Minimum thickness of insulation screen	mm	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6
No. and diameter of metallic screening approx. of copper wire	no./mm	24/0.85	24/0.85	24/0.85	24/0.85	24/0.85	24/0.85	24/0.85	24/0.85
Nominal thickness of outer sheath	mm	l.8	l.8	l.8	l.8	1.9	1.9	2	2
Nominal diameter over sheathing	mm	28.4	28.4	29.3	30.9	32.8	34.3	35.9	37.6
Max. dc resistance at 20°C	ohm/km	0.868	0.868	0.64l	0.443	0.32	0.253	0.206	0.l64
Current rating at Ambient temperature = 30°C	A	170	170	205	260	315	360	4l0	470
Ambient temperature = 40°C Solar radiation = IOOOw/m2 Wind speed = lm/s	A	150	150	l85	230	280	320	365	4l5
Earth fault current carrying capacity of metallic screen at -1 second ( 1 Core )	kA	2	2	2	2	2	2	2	2
Messenger – Galvanized steel wire
Stranding	No./mm	7/2.0	19/2.0	l9/2.0	l9/2.0	l9/2.0	l9/2.0	l9/2.0	l9/2.0
Direction of the outermost layer	Righthand (Z)
Overall diameter	mm	6	10	10	10	10	10	10	10
Completed cable
Approx. overall diameter	mm	62.8	66.8	68.5	7l.8	75.6	78.6	8l.8	85.2
Approx. weight of cable	kg/km	2340	2640	2780	3100	3510	3850	4240	47l0
Packing length	m/drum	500	500	500	250	250	250	250	250

Specification Table 15

Phase conductor
Nominal cross.sectional area	mm2	35	35	50	70	95	120	150	l85
Number of cores	3	3	3	3	3	3	3	3
Minimum number of wires	6	6	6	12	15	l8	l8	30
Nominal diameter of conductor	mm	7	7	8.l	9.7	11.5	12.9	l4.3	16.1

Minimum thickness of conductor screen	mm	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3
Nominal thickness of XLPE insulation	mm	5.5	5.5	5.5	5.5	5.5	5.5	5.5	5.5
Minimum thickness of insulation screen	mm	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6
No. and diameter of metallic screening approx. of copper wire	no./mm	40/0.85	40/0.85	23/l.35	32/l.35	38/l.35	38/l.35	38/l.35	38/l.35
Nominal thickness of outer sheath	mm	l.8	l.8	l.8	l.8	1.9	1.9	2	2
Nominal diameter over sheathing	mm	28.4	28.4	30.3	31.9	33.8	35.3	36.9	38.6
Max. dc resistance at 20°C	ohm/km	0.868	0.868	0.64l	0.443	0.32	0.253	0.206	0.l64
Current rating at Ambient temperature = 30°C	A	170	170	205	260	315	360	4l0	470
Ambient temperature = 40°C Solar radiation = I000w/m2 Wind speed = lm/s	A	150	150	l85	230	280	320	365	4l5
Earth fault current carrying capacity of metallic screen at -1 second ( 1 Core )	kA	3.3 *	3.3 *	4.8*	6.8*	8	8	8	8
Messenger – Galvanized steel wire
Stranding	No./mm	7/2.0	l9/2.0	l9/2.0	l9/2.0	l9/2.0	l9/2.0	l9/2.0	l9/2.0
Direction of the outermost layer	Right-hand (Z)
Overall diameter	mm	6	10	10	10	10	10	10	10
Completed cable
Approx. overall diameter	mm	62.8	66.8	70.5	73.8	77.6	80.6	83.8	87.2
Approx. weight of cable	kg/km	2600	2900	3350	4030	4680	5020	54l0	5880
Packing length	m/drum	500	500	500	250	250	250	250	250

Specification Table 16

Phase conductor
Nominal cross-sectional area	mm2	35	50	70	95	120	150	l85
Number of cores	3	3	3	3	3	3	3
Minimum number of wires	6	6	12	15	l8	l8	30
Nominal diameter of conductor	mm	7	8.l	9.7	11.5	12.9	l4.3	16.1

Minimum thickness of conductor screen	mm	0.3	0.3	0.3	0.3	0.3	0.3	0.3
Nominal thickness of XLPE insulation	mm	3.4	3.4	3.4	3.4	3.4	3.4	3.4
Nominal thickness of cross-linked screen layer	mm	0.6	0.6	0.6	0.6	0.6	0.6	0.6
Nominal thickness of semi-conductive HDPE layer	mm	1.2	1.2	1.2	1.2	1.2	1.2	1.2
Max. dc resistance at 20°C	ohm/km	0.868	0.64l	0.443	0.32	0.253	0.206	0.l64
Current rating at Ambient temperature = 40°C Solar radiation = I000w/m2 Wind speed = lm/s	A	165	200	245	300	345	390	450
Messenger – AAAC 1120
Stranding	No./mm	7/5.0	7/5.0	7/5.0	7/5.0	19/3.65	l9/3.65	l9/3.65
Direction of the outermost layer	Righthand (Z)
Overall diameter	mm	l4.3	l4.3	l4.3	l4.3	17.3	17.3	17.3
Completed cable
Approx. overall diameter	mm	52.2	53.5	56.7	60.2	66.2	69	72.4
Approx. weight of cable	kg/km	l470	l580	l850	2l80	2640	2960	3380
Packing length	m/drum	500	500	500	500	500	500	250

Specification Table 17

Phase conductor
Nominal cross.sectional area	mm2	35	50	70	95	120	150	l85
Number of cores	3	3	3	3	3	3	3
Minimum number of wires	6	6	12	15	l8	l8	30
Nominal diameter of conductor	mm	7	8.l	9.7	11.5	12.9	l4.3	16.1

Minimum thickness of conductor screen	mm	0.3	0.3	0.3	0.3	0.3	0.3	0.3
Nominal thickness of XLPE insulation	mm	5.5	5.5	5.5	5.5	5.5	5.5	5.5
Nominal thickness of cross-linked screen layer	mm	0.6	0.6	0.6	0.6	0.6	0.6	0.6
Nominal thickness of semi-conductive HDPE layer	mm	1.2	1.2	1.2	1.2	1.2	1.2	1.2
Max. dc resistance at 20°C	ohm/km	0.868	0.64l	0.443	0.32	0.253	0.206	0.l64
Current rating at Ambient temperature = 40°C Solar radiation = I000w/m2 Wind speed = lm/s	A	165	195	245	295	340	385	440
Messenger – AAAC 1120
Stranding	No./mm	7/5.0	7/5.0	7/5.0	7/5.0	l9/3.65	l9/3.65	l9/3.65
Direction of the outermost layer	Right-hand (Z)
Overall diameter	mm	l4.3	l4.3	l4.3	l4.3	17.3	17.3	17.3
Completed cable
Approx. overall diameter	mm	60.6	61.9	65.1	68.6	74.6	77.4	80.8
Approx. weight of cable	kg/km	l890	2000	2300	2670	3160	3500	3950
Packing length	m/drum	500	500	500	500	250	250	250

Scroll horizontally to review complete specification columns.

Request Full TDS

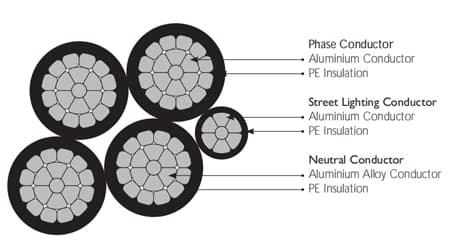

Structure & Technical Illustration

PE AND XLPE INSULATED AERIAL BUNDLE CABLES

Product image and technical reference.

PE AND XLPE INSULATED AERIAL BUNDLE CABLES

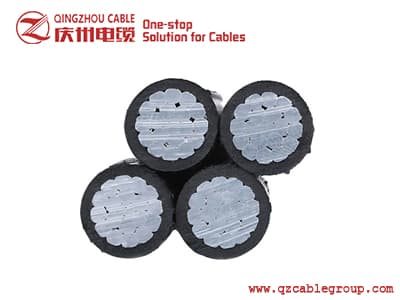

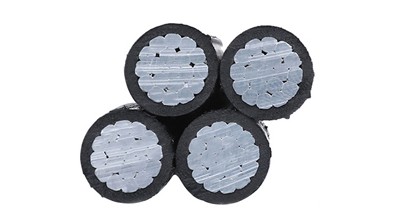

Product Images

Product Overview

Technical Parameters

IEC 60502 & TNB Specifcation（0.6/1 (1.2) kV）Cables without street lighting

IEC 60502 & TNB Specifcation（0.6/1 (1.2) kV）Cables with street lighting

AL/XLPE INSULATED AERIAL BUNDLED CABLES AS/NZS 3560.1 0.6/1 (1.2) kV

IEC 60502 & DES/LV/ABC 0.6/1 (1.2) kV Cables without street lighting

IEC 60502 & DES/LV/ABC 0.6/1 (1.2) kV Cables with street lighting

AERIAL BUNDLED CABLES AL/XLPE/SCT/PVC CABLES IEC 60502 & TNB Specifcation 6.35/11 (12) kV

AERIAL BUNDLED CABLES AL/XLPE/SCT/PVC CABLES IEC 60502 & TNB Specifcation 12.7/22 (24) kV

AERIAL BUNDLED CABLES AL/XLPE/SCT/PVC CABLES IEC 60502 & TNB Specifcation 19/33 (36) kV

AL/XLPE/SCW/HDPE AERIAL BUNDLED CABLES AS/NZS 3599.1 (Light Duty Screen) 6.35/11 (12) kV

AL/XLPE/SCW/HDPE AERIAL BUNDLED CABLES AS/NZS 3599.1 (Heavy Duty Screen) 6.35/11 (12) kV

AL/XLPE/SCW/HDPE AERIAL BUNDLED CABLES AS/NZS 3599.1 (Light Duty Screen) 12.7/22 (24) kV

AL/XLPE/SCW/HDPE AERIAL BUNDLED CABLES AS/NZS 3599.1 (Heavy Duty Screen) 12.7/22 (24) kV

AERIAL BUNDLED CABLES AL/XLPE/HDPE AS/NZS 3599.2 6.35/11 (12) kV
