SERVICE ENTRANCE CONCENTRIC CABLE-DOMINICAN

Application The concentric cables are used as electric service entrance from the power distribution network until the meter panel (especially where it is required to prevent "black" losses or electric power robbery), and as feeder cable from the meters panel until the panel or general distribution panel, just as it is specified in the National […] LEAVE MESSAGE SEND E-MAIL

Leave Message Send E-mail

CategoryService Entrance Cable

SourceQZ Cable Group

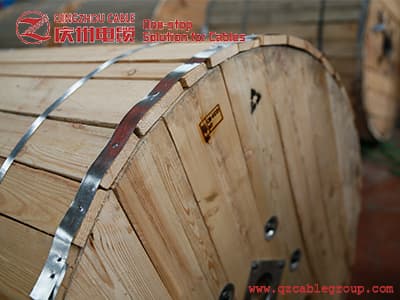

Product Images

Product Overview

Application

The concentric cables are used as electric service entrance from the power distribution network until the meter panel (especially where it is required to prevent "black" losses or electric power robbery), and as feeder cable from the meters panel until the panel or general distribution panel, just as it is specified in the National Electrical Code. This type of conductor can be used in dry and wet places, directly buried or outdoors; its maximum temperature of operation is 90ºC and its voltage of service for all the applications is 600v.

Standard

ASTM D2655, ASTM B556, ASTM B193, UL 44, UL 1581, ASTM B8, UL 854, NEC Numeral 310.14

Technical Parameters

Specification Table 1

Size	Phase Conductor		XLPE Insulation		Neutral Conductor		XLPE Sheath		Approx.Weight
Size	Structure	O.D	Thickness	O.D	Structure	O.D	Thickness	O.D	CU	AL	CCA
AWG	No./mm	mm	mm	mm	No./mm	mm	mm	mm	kg/km	kg/km	kg/km
2×8	7/1.23	3.69	1.14	5.97	25/0.65	7.27	1.14	9.84	202	97	101
2×10	7/0.98	2.94	1.14	5.22	25/0.52	6.26	1.14	8.83	141	74	77

Specification Table 2

Size	Phase Conductor		XLPE Insulation		Inner Sheath	Neutral Conductor	XLPE Sheath		Approx.Weight
Size	Structure	O.D	Thickness	O.D	Thickness	Structure	Thickness	O.D	CU	AL	CCA
AWG	No./mm	mm	mm	mm	mm	No./mm	mm	mm	kg/km	kg/km	kg/km
3×8	7/1.23	3.69	1.14	5.97	0.7	65/0.41	1.14	16.59×10.62	396	227	233
3×6	7/1.55	4.65	1.14	6.93	0.7	65/0.52	1.14	18.73×11.80	551	297	307
3×4	7/1.96	4.98	1.14	8.16	0.7	65/0.65	1.52	22.21×14.05	830	427	443
3×2	7/2.47	7.41	1.14	9.69	0.7	65/0.83	1.52	25.63×15.94	1233	587	613

Scroll horizontally to review complete specification columns.

Request Full TDS

Structure & Technical Illustration

SERVICE ENTRANCE CONCENTRIC CABLE-DOMINICAN

Application The concentric cables are used as electric service entrance from the power distribution network until the meter panel (especially where it is required to prevent "black" losses or electric power robbery), and as feeder cable from the meters panel until the panel or general distribution panel, just as it is specified in the National […] LEAVE MESSAGE SEND E-MAIL

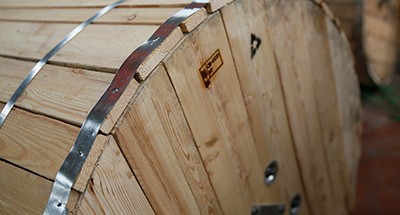

Product image and technical reference.
