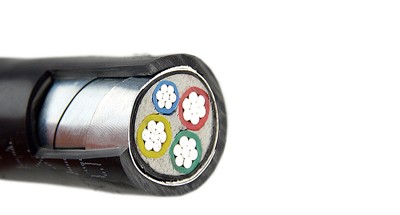

0.6/1 kV Multi-core cables, XLPE insulated, tape armoured with copper and aluminum conductor

CU/XLPE/STA (DST)/PVC Multi-core cables are normally used for the distribution of electrical energy in urban networks, power or switching stations, industrial plants, as well as in switchgears, in applications where there is a risk of mechanical damage. LEAVE MESSAGE SEND E-MAIL

Leave Message Send E-mail

CategoryElectrical Power Cable

SourceQZ Cable Group

Product Images

Product Overview

APPLICATIONS

These cables are intended for fixed installations, indoors and outdoors, in low voltage electricity systems. They are normally used for the distribution of electrical energy in urban networks, power or switching stations, industrial plants, as well as in switchgears, in applications where there is a risk of mechanical damage.

Technical Parameters

0.6/1 kV CU/XLPE/STA (DST)/PVC Multi-core cables, XLPE insulated, tape armoured with copper conductor IEC 60502-1

Nominal cross sectional area		ELECTRICAL DATA					DIMENSIONS AND WEIGHTS
		Max. Conductor Resistance		Continuous Current Ratings			Approx. overall diameter	Approx. overall weight
		DC at 20 °C	AC at 90 °C	Laid in ground	Laid in ducts	Laid in free air
mm²		Ω / km	Ω / km	A	A	A	mm	kg / km
Two Core Cables
6	rm	3.0800	3.9274	67	49	62	15.4	430

10	rm	1.8300	2.3336	89	65	83	16.6	530
16	rm	1.1500	1.4667	114	84	110	18.6	705
25	rm	0.7270	0.9275	148	111	148	21.7	1000
35	rm	0.5240	0.6688	177	134	180	23.8	1260
Three Core Cables
6	rm	3.0800	3.9274	55	40	52	16.2	500
10	rm	1.8300	2.3336	74	54	70	17.9	615
16	rm	1.1500	1.4667	95	70	93	20.1	835
25	rm	0.7270	0.9275	123	92	124	23.4	1170
35	sm	0.5240	0.6688	140	106	140	22.8	1390
50	sm	0.3870	0.4944	166	128	171	25.8	1790
70	sm	0.2680	0.3431	203	159	215	29.7	2495
95	sm	0.1930	0.2481	243	193	263	33.3	3310
120	sm	0.1530	0.1976	278	224	310	37.8	4430
Four Core Cables
4	rm	4.6100	5.8783	45	32	41	16.0	480
6	rm	3.0800	3.9274	55	40	52	17.3	590
10	rm	1.8300	2.3336	74	54	70	19.2	755
16	rm	1.1500	1.4667	95	70	93	21.7	1020
25	rm	0.7270	0.9275	123	92	124	25.4	1465
35	sm	0.5240	0.6688	140	106	140	25.8	1780
50	sm	0.3870	0.4944	166	128	171	29.5	2320
70	sm	0.2680	0.3431	203	159	215	34.0	3235
95	sm	0.1930	0.2481	243	193	263	38.1	4630
120	sm	0.1530	0.1976	278	224	310	42.6	5760
150	sm	0.1240	0.1612	310	252	349	47.1	6990
185	sm	0.0991	0.1302	349	287	402	52.1	8590
240	sm	0.0754	0.1012	402	335	473	58.3	10995
300	sm	0.0601	0.0829	452	380	541	63.9	13550
400	sm	0.0470	0.0676	511	435	627	72.9	17260
500	sm	0.0366	0.0561	570	491	713	81.8	22775
Four Core Cables with Reduced Neutral
25 rm	16 rm	0.7270 / 1.1500	0.9275 / 1.4667	123	92	124	24.5	1370
35 sm	16 rm	0.5240 / 1.1500	0.6688 / 1.4667	140	106	140	25.8	1635
50 sm	25 rm	0.3870 / 0.7270	0.4944 / 0.9275	166	128	171	29.3	2135
70 sm	35 sm	0.2680 / 0.5240	0.3431 / 0.6688	203	159	215	32.6	2905
95 sm	50 sm	0.1930 / 0.3870	0.2481 / 0.4944	243	193	263	37.4	4160
120 sm	70 sm	0.1530 / 0.2680	0.1976 / 0.3431	278	224	310	40.5	5185
150 sm	70 sm	0.1240 / 0.2680	0.1612 / 0.3431	310	252	349	44.7	6165
185 sm	95 sm	0.0991 / 0.1930	0.1302 / 0.2481	349	287	402	49.6	7650
240 sm	120 sm	0.0754 / 0.1530	0.1012 / 0.1976	402	335	473	55.5	9735
300 sm	150 sm	0.0601 / 0.1240	0.0829 / 0.1612	452	380	541	60.6	11940
400 sm	185 sm	0.0470 / 0.0991	0.0676 / 0.1302	511	435	627	68.5	15100
500 sm	240 sm	0.0366 / 0.0754	0.0561 / 0.1012	570	491	713	76.1	19270

0.6/1 kV AL/XLPE/STA (DST)/PVC Multi-core cables, XLPE insulated, tape armoured with aluminum conductor IEC 60502-1

Nominal cross sectional area		ELECTRICAL DATA					DIMENSIONS AND WEIGHTS
		Max. Conductor Resistance		Continuous Current Ratings			Approx. overall diameter	Approx. overall weight
		DC at 20 °C	AC at 90 °C	Laid in ground	Laid in ducts	Laid in free air
mm²		Ω / km	Ω / km	A	A	A	mm	kg / km
Two Core Cables
10	rm	3.0800	3.9490	68	50	64	16.6	410

16	rm	1.9100	2.4490	89	65	85	18.6	515
25	rm	1.2000	1.5388	115	86	115	21.2	675
35	rm	0.8680	1.1133	138	104	140	23.8	840
Three Core Cables
10	rm	3.0800	3.9490	57	41	54	17.9	440
16	rm	1.9100	2.4490	73	54	72	20.1	545
25	rm	1.2000	1.5388	95	72	97	22.8	700
35	sm	0.8680	1.1133	108	82	108	22.8	750
50	sm	0.6410	0.8224	129	99	132	25.8	930
70	sm	0.4430	0.5688	158	124	167	29.7	1235
95	sm	0.3200	0.4115	189	150	204	33.3	1575
120	sm	0.2530	0.3259	217	174	241	37.8	2245
Four Core Cables
10	rm	3.0800	3.9490	57	41	54	19.2	515
16	rm	1.9100	2.4490	73	54	72	21.7	640
25	rm	1.2000	1.5388	95	72	97	24.8	845
35	sm	0.8680	1.1133	108	82	108	25.8	930
50	sm	0.6410	0.8224	129	99	132	29.5	1180
70	sm	0.4430	0.5688	158	124	167	34.0	1560
95	sm	0.3200	0.4115	189	150	204	38.1	2315
120	sm	0.2530	0.3259	217	174	241	42.6	2845
150	sm	0.2060	0.2660	241	196	272	47.1	3390
185	sm	0.1640	0.2126	274	255	314	52.1	4075
240	sm	0.1250	0.1634	317	264	372	58.3	5105
300	sm	0.1000	0.1321	357	301	428	63.9	6085
400	sm	0.0778	0.1047	410	349	503	72.9	7705
500	sm	0.0605	0.0838	464	400	580	81.8	10245
Four Core Cables with Reduced Neutral
50 sm	25 rm	0.6410 / 1.2000	0.8224 / 1.5388	129	99	132	29.3	1125
70 sm	35 sm	0.4430 / 0.8680	0.5688 / 1.1133	158	124	167	32.6	1435
95 sm	50 sm	0.3200 / 0.6410	0.4115 / 0.8224	189	150	204	37.4	2140
120 sm	70 sm	0.2530 / 0.4430	0.3259 / 0.5688	217	174	241	40.5	2580
150 sm	70 sm	0.2060 / 0.4430	0.2660 / 0.5688	241	196	272	44.7	3045
185 sm	95 sm	0.1640 / 0.3200	0.2126 / 0.4115	274	255	314	49.6	3690
240 sm	120 sm	0.1250 / 0.2530	0.1634 / 0.3259	317	264	372	55.5	4590
300 sm	150 sm	0.1000 / 0.2060	0.1321 / 0.2660	357	301	428	60.6	5445
400 sm	185 sm	0.0778 / 0.1640	0.1047 / 0.2126	410	349	503	68.5	6805
500 sm	240 sm	0.0605 / 0.1250	0.0838 / 0.1634	464	400	580	76.1	8405
