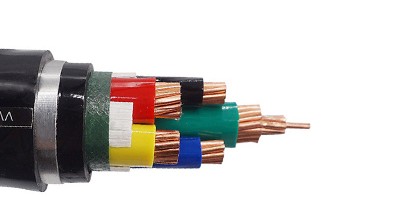

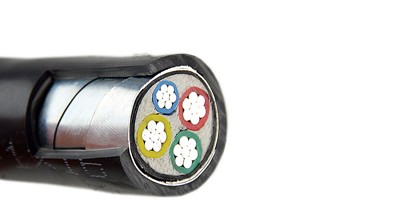

LV MV Power cable

LV cable: cable voltage level up to 1.8/3kV is suitable for power, household appliances, instruments, small power tools, dynamic lighting and other applications LEAVE MESSAGE SEND E-MAIL

Leave Message Send E-mail

CategoryElectrical Power Cable

SourceQZ Cable Group

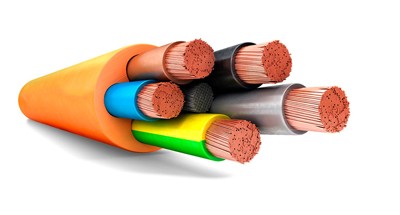

Product Images

Product Overview

LV cable: cable voltage level up to 1.8/3kV is suitable for power, household appliances, instruments, small power tools, dynamic lighting and other applications LEAVE MESSAGE SEND E-MAIL

Technical Parameters

Specification Table 1

Model		Name	Laying Occasion
Copper core	Aluminum core	Name	Laying Occasion
VV	VLV	PVC insulated and sheathed power cable	Laid indoors, and in tunnels, pipelines, cable trenches, and flammable and severe corrosion places, and can not bear external mechanical forces.
VY	VLY	PVC insulated PE sheathed power cable	Laid indoors, and in pipelines, cable trenches and severe corrosion places, and cannot bear external mechanical forces
VV22	VLV22	PVC insulated steel tape armored PVC sheathed power cable	Laid indoors, and in cable trenches, underground severe corrosion places, and cannot bear tension.
VV23	VLV23	PVC insulated steel tape armored PE	Laid indoors, and in cable trenches and underground severe corrosion place, and cannot bear tension.
VV32	VLV32	PVC insulated thin steel wire armored PVC sheathed power cable	Laid under ground and in shafts, water and severe corrosion places, and cannot bear high tension.
VV33	VLV33	PVC insulated thin steel wire armored PVC sheathed power cable	Laid under ground and in shafts, water and severe corrosion places, and can bear high tension.

VV42	VLV42	PVC insulated thick steel wire armored PVC sheathed power cable	Laid under ground and in shafts and severe corrosion places, and can bear high tension.
VV43	VLV43	PVC insulated thick steel wire armored PE sheathed power cable	Laid under ground and in shafts and severe corrosion places, and can bear high tension.

Specification Table 2

Number of cores	0.6/1Kv Cross sectional area (mm2)	1.8/3
Single core 1	1.5-100	10-1000
Twin core 2	1.5-240	10-240
Triple core 3	1.5-300	10-300
Three big cores and one small core 3+1	2.5-300	10-300
Fourth core 4	2.5-300	10-300
Fifth core 5	2.5-300	10-300

Three big cores and two small cores 3+2	2.5-300	10-300
Four big cores and one small core 4+1	2.5-300	10-300

Specification Table 3

Conductor dimensions (mm2)	Insulation thickness (mm)	Nonmetallic sheath, unarmored cable
		Sheath thickness					Outer diameter (approximate)					Cable weight (Kg/km)
		mm					mm					Copper core					Aluminum core
		1C	2C	3C	4C	5C	1C	2C	3C	4C	5C	1C	2C	3C	4C	5C	1C	2C	3C	4C	5C
1.5	0.8	1.4	1.8	1.8	1.8	1.8	5.8	10.4	10.8	11.6	12.4	49	131	152	184	215	40	113	124	147	168
2.5	0.8	1.4	1.8	1.8	1.8	1.8	6.2	11.2	11.7	12.6	13.5	62	159	191	234	277	47	128	144	172	199
4	1.0	1.4	1.8	1.8	1.8	1.8	7.1	12.9	13.6	14.7	15.9	86	211	264	330	391	62	161	189	231	266

6	1.0	1.4	1.8	1.8	1.8	1.8	7.6	13.9	14.7	15.9	17.3	110	268	334	423	505	73	193	221	273	318
10	1.0	1.4	1.8	1.8	1.8	1.8	8.7	16.2	17.1	18.6	20.3	158	380	492	627	754	96	254	303	375	439
16	1.0	1.4	1.8	1.8	1.8	1.8	9.8	18.4	19.5	21.3	23.3	224	533	714	905	1094	124	331	412	502	590
25	1.2	1.4	1.8	1.8	1.8	1.8	11.2	21.2	22.5	24.7	27.1	325	759	1019	1307	1592	169	445	547	678	806
35	1.2	1.4	1.8	1.8	1.8	1.9	12.4	23.6	21.4	27.6	30.5	429	974	1313	1699	2098	211	533	652	818	997
50	1.4	1.4	1.8	1.8	1.9	2.1	14.0	26.8	28.0	31.6	35.2	590	1265	1781	2354	2929	278	636	837	1096	1355
70	1.4	1.4	1.9	2.0	2.1	2.2	15.6	23.4	27.2	31.5	37.9	791	1650	2393	3155	3942	353	770	1071	1394	1740
95	1.6	1.5	2.0	2.1	2.2	2.4	17.9	27.2	31.4	36.6	43.0	1062	2206	3205	4239	5295	467	1011	1412	1849	2307
120	1.6	1.5	2.1	2.2	2.4	2.5	19.3	29.8	34.3	39.2	46.9	1306	2727	3966	5244	6549	555	1217	1701	2224	2774
150	1.8	1.6	2.2	2.3	2.5	2.7	21.4	32.6	37.9	43.1	52.4	1625	3374	4924	6508	8155	686	1486	2093	2733	3437
185	2.0	1.7	2.4	2.5	2.7	2.9	23.7	38.6	42.3	48.2	60.7	1998	4185	6062	8022	10074	840	1857	2571	3366	4254
240	2.2	1.8	2.6	2.7	2.9	3.1	26.5	43.8	49.7	55.7	65.8	2565	5371	7825	10335	12911	1062	2351	3296	4295	5361
300	2.4	1.9	2.7	2.9	3.1	3.3	29.3	48.8	52.8	62.3	71.4	3186	6641	9696	12859	16023	1306	2854	4016	5285	6557
400	2.6	2.0	3.1	3.4	3.7	33.0	59.8	71.2	83.1	4191	12739	16940	21124	1684	5165	6842	8501
500	2.8	2.1	3.4	3.4	36.4	74.2	82.2	86.5	5198	15898	20937	2064	6431	8314
630	2.8	2.2	40.1	77.0	85.3	6464	2515
800	2.8	2.3	45.2	8126	3112
1000	3.0	2.5	50.5	10120	3853

Specification Table 4

Conductor dimensions (mm2)		Insulation thickness (mm)		Nonmetallic sheath, unarmored cable
				Sheath thickness			Outer diameter (approximate)			Cable weight (Kg/km)
				mm			mm			Copper core			Aluminum core
Phase line	Null line	Phase line	Null line	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C
2.5	1.5	0.8	0.8	1.8	1.8	1.8	12.3	13.1	13.3	236	271	276	—	—	—
4	2.5	1.0	0.8	1.8	1.8	1.8	14.2	14.9	15.4	307	354	305	217	248	253
6	4.0	1.0	1.0	1.8	1.8	1.8	15.6	16.7	17.0	400	467	335	263	305	308

10	6.0	1.0	1.0	1.8	1.8	1.8	18.0	19.1	19.7	574	659	701	348	395	412
16	10.0	1.0	1.0	1.8	1.8	1.8	20.7	22.1	22.7	829	946	1018	464	518	552
25	16.0	1.2	1.0	1.8	1.8	1.8	23.9	25.6	26.3	1195	1379	1480	622	705	751
35	16.0	1.2	1.0	1.8	1.8	1.8	26.1	27.5	28.9	1484	1667	1869	728	818	894
50	25.0	1.4	1.2	1.9	1.9	2.0	30.0	31.8	33.5	2079	2359	2638	978	1100	1222
70	35.0	1.4	1.2	2.0	2.1	2.1	31.0	34.9	35.8	2789	3200	3565	1245	1436	1579
95	50.0	1.6	1.4	2.2	2.2	2.3	35.7	40.2	41.3	3778	4350	4821	1667	1924	2111
120	70.0	1.6	1.4	2.3	2.4	2.5	38.3	43.8	45.7	4725	5529	6050	2014	2377	2582
150	70.0	1.8	1.4	2.4	2.5	2.6	41.7	48.1	50.0	5680	6500	7318	2402	2780	3094
185	95.0	2.0	1.6	2.6	2.7	2.8	47.4	53.6	55.4	7098	8178	9095	2999	3481	3830
240	120.0	2.2	1.6	2.8	2.9	3.0	55.5	61.3	62.7	9108	10435	11651	3812	4382	4841
300	150.0	2.4	1.8	3.0	3.1	3.2	61.2	68.5	66.0	11320	12981	14434	4695	5410	5915
400	185.0	2.6	2.0	3.2	3.3	3.5	70.4	77.1	70.9	14757	16803	18818	6017	6897	7554

Specification Table 5

Conductor dimensions (mm2)	nsulation thickness (mm)	Armored wire cable
		PVC bedding thickness				Armored wire Outer diameter				Sheath thickness				Outer diameter (approximate)				Cable weight (approximate) (Kg/km)				Cable weight (approximate) (Kg/km)
		mm				mm				mm				mm				Copper core				Aluminum core
		2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C
1.5	0.8	1.0	1.0	1.0	1.0	0.8	0.8	0.8	0.8	1.8	1.8	1.8	1.8	14.6	15.0	15.8	16.6	351	390	449	477	332	362	412	431
2.5	0.8	1.0	1.0	1.0	1.0	0.8	0.8	0.8	0.8	1.8	1.8	1.8	1.8	15.4	15.9	16.8	17.7	396	447	523	562	365	400	461	484
4	1.0	1.0	1.0	1.0	1.0	0.8	1.25	1.25	1.25	1.8	1.8	1.8	1.8	17.1	18.7	19.8	21.0	492	681	785	887	442	607	685	762

6	1.0	1.0	1.0	1.0	1.0	1.25	1.25	1.25	1.25	1.8	1.8	1.8	1.8	19.0	19.8	21.0	22.4	698	788	915	1041	623	677	766	854
10	1.0	1.0	1.0	1.0	1.0	1.25	1.25	1.25	1.6	1.8	1.8	1.8	1.8	21.3	22.2	23.7	26.1	874	1012	1197	1519	748	823	945	1204
16	1.0	1.0	1.0	1.0	1.0	1.25	1.25	1.6	1.6	1.8	1.8	1.8	1.8	23.5	24.6	27.1	29.1	1091	1309	1701	1976	890	1007	1298	1473
25	1.2	1.0	1.0	1.0	1.0	1.6	1.6	1.6	1.6	1.8	1.8	1.8	1.9	27.0	28.3	30.5	33.1	1555	1856	2223	2639	1240	1384	1594	1852
35	1.2	1.0	1.0	1.0	1.0	1.6	1.6	1.6	2.0	1.8	1.8	1.9	2.0	29.4	30.9	33.6	37.3	1850	2279	2747	3531	1409	1619	1866	2430
50	1.4	1.0	1.0	1.2	1.2	1.6	1.6	2.0	2.0	1.9	2.0	2.1	2.2	32.8	34.7	39.0	42.4	2275	2872	3846	4624	1646	1928	2588	3051
70	1.4	1.0	1.2	1.2	1.2	2.0	2.0	2.0	2.0	2.0	2.1	2.2	2.3	37.0	34.4	38.7	45.1	3073	3681	4632	5702	2190	2357	2867	3495
95	1.6	1.2	1.2	1.2	1.4	2.0	2.0	2.5	2.5	2.2	2.2	2.4	2.6	42.0	38.6	45.4	52.2	3866	4656	6456	7940	2668	2859	4060	4945
120	1.6	1.2	1.2	1.4	1.4	2.0	2.0	2.5	2.5	2.3	2.3	2.6	2.7	45.0	41.5	48.4	56.1	4519	5543	7653	9415	3006	3273	4627	5632
150	1.8	1.2	1.4	1.4	1.6	2.5	2.5	2.5	2.5	2.5	2.6	2.7	2.9	50.6	47.3	52.3	62.0	5919	7257	9126	11427	4027	4420	5343	6698
185	2.0	1.4	1.4	1.6	1.6	2.5	2.5	2.5	2.5	2.6	2.7	2.9	3.1	55.4	51.5	57.8	70.3	7028	8630	10993	13819	4695	5131	6327	7987
240	2.2	1.4	1.6	1.6	1.6	2.5	2.5	2.5	3.15	2.8	2.9	3.1	3.4	61.0	59.3	65.3	77.0	8521	10856	13726	17857	5495	6316	7673	10291
300	2.4	1.6	1.6	1.6	1.8	2.5	2.5	2.5	3.15	3.0	3.1	3.3	3.6	67.0	62.4	71.9	82.9	10178	12930	16619	21385	6392	7250	9045	11918
400	2.6	1.6	1.8	3.15	3.15	3.4	3.7	70.9	82.7	97.8	17174	22239	9601	12141
500	2.8	1.8	3.15	3.6	88.3	21557	12090

Specification Table 6

Conductor dimensions (mm2)	nsulation thickness (mm)	Steel tape armoured cable
		PVC bedding thickness				Armored wire Outer diameter				Sheath thickness				Outer diameter (approximate)				Cable weight (approximate) (Kg/km)				Cable weight (approximate) (Kg/km)
		mm				mm				mm				mm				Copper core				Aluminum core
		2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C
1.5	0.8	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	12.2	12.6	13.4	14.2	229	254	294	334	210	226	257	287
2.5	0.8	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	13.0	13.5	14.4	15.3	265	302	355	407	234	255	293	329
4	1.0	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	14.7	15.4	16.5	17.7	335	395	473	546	285	320	373	422

6	1.0	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	15.7	16.5	17.7	19.1	403	476	578	676	328	364	429	489
10	1.0	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	18.0	18.9	20.4	22.1	538	660	811	956	413	471	559	641
16	1.0	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	20.2	21.3	23.1	25.1	715	908	1118	1328	513	606	715	824
25	1.2	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	23.0	24.3	26.5	28.9	971	1245	1556	1867	656	773	927	1080
35	1.2	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.9	2.0	25.4	26.9	29.6	32.5	1211	1598	1993	2422	770	937	1112	1321
50	1.4	0.9	0.9	0.9	1.2	0.2	0.2	0.2	0.5	1.8	1.9	2.0	2.2	28.6	30.5	33.6	39.0	1536	2089	2690	3720	907	1145	1432	2147
70	1.4	0.9	0.9	1.2	1.2	0.2	0.2	0.5	0.5	1.9	2.0	2.2	2.3	25.2	29.0	35.3	41.7	1884	2666	3862	4792	1002	1342	2097	2585
95	1.6	1.2	1.2	1.2	1.2	0.5	0.5	0.5	0.5	2.1	2.2	2.4	2.5	31.0	35.2	40.6	46.8	2818	3910	5078	6256	1620	2114	2682	3261
120	1.6	1.2	1.2	1.2	1.4	0.5	0.5	0.5	0.5	2.2	2.3	2.5	2.6	33.6	38.1	43.0	51.1	3395	4734	6118	7647	1882	2464	3092	3864
150	1.8	1.2	1.2	1.4	1.4	0.5	0.5	0.5	0.5	2.4	2.5	2.6	2.8	36.6	41.9	47.3	56.6	4120	5790	7516	9378	2228	2953	3733	4649
185	2.0	1.2	1.4	1.4	1.4	0.5	0.5	0.5	0.5	2.5	2.6	2.8	3.0	42.4	46.5	52.4	64.9	5045	7052	9145	11487	2713	3552	4480	5655
240	2.2	1.4	1.4	1.4	1.4	0.5	0.5	0.5	0.5	2.7	2.8	3.0	3.2	48.0	53.9	59.9	70.0	6393	8984	11630	14440	3367	4445	5577	6874
300	2.4	1.4	1.4	1.4	1.4	0.5	0.5	0.5	0.5	2.9	3.0	3.2	3.5	53.2	57.0	66.5	75.8	7802	10923	14305	17714	4016	5243	6731	8247
400	2.6	1.4	1.4	1.4	0.5	0.8	0.8	3.3	3.6	3.8	64.2	76.8	91.9	14155	19356	6581	9258
500	1.4	0.5	3.4	81.2	17684	8217

Specification Table 7

Conductor dimensions (mm2)		Insulation thickness (mm)		Armored wire cable
				PVC bedding thickness			Armored wire Outer diameter			Sheath thickness			Outer diameter (approximate)			Cable weight (approximate) (Kg/km)			Cable weight (approximate) (Kg/km)
				mm			mm			mm			mm			Copper core			Aluminum core
Phase line	Null line	Phase line	Null line	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C
2.5	1.5	0.8	0.8	1.0	1.0	1.0	0.8	0.8	0.8	1.8	1.8	1.8	16.5	17.3	17.5	504	557	567	—	—	—
4	2.5	1.0	0.8	1.0	1.0	1.0	1.25	1.25	1.25	1.8	1.8	1.8	19.3	20.0	20.5	749	809	847	658	704	732
6	4.0	1.0	1.0	1.0	1.0	1.0	1.25	1.25	1.25	1.8	1.8	1.8	20.7	21.8	22.1	880	985	1002	743	823	827

10	6.0	1.0	1.0	1.0	1.0	1.0	1.25	1.6	1.6	1.8	1.8	1.8	23.1	24.9	25.5	1130	1375	1438	904	1112	1149
16	10.0	1.0	1.0	1.0	1.0	1.0	1.6	1.6	1.6	1.8	1.8	1.8	26.5	27.9	28.5	1605	1780	1872	1240	1352	1406
25	16.0	1.2	1.0	1.0	1.0	1.0	1.6	1.6	1.6	1.8	1.8	1.9	29.7	31.4	32.3	2090	2333	2471	1517	1660	1741
35	16.0	1.2	1.0	1.0	1.0	1.0	1.6	1.6	1.6	1.9	1.9	2.0	32.1	33.5	35.1	2472	2698	2975	1717	1849	2000
50	25.0	1.4	1.2	1.0	1.2	1.2	2.0	2.0	2.0	2.0	2.1	2.1	36.8	39.2	40.7	3434	3878	4205	2333	2620	2790
70	35.0	1.4	1.2	1.2	1.2	1.2	2.0	2.0	2.0	2.1	2.2	2.3	38.2	42.1	43.0	4235	4806	5248	2690	3041	3262
95	50.0	1.6	1.4	1.2	1.2	1.4	2.0	2.5	2.5	2.3	2.5	2.5	42.9	49.2	50.5	5417	6789	7334	3306	4363	4623
120	70.0	1.6	1.4	1.4	1.4	1.4	2.5	2.5	2.5	2.5	2.6	2.7	47.5	53.0	54.9	7082	8193	8818	4371	5041	5351
150	70.0	1.8	1.4	1.4	1.4	1.4	2.5	2.5	2.5	2.6	2.7	2.8	50.9	57.3	59.2	8200	9418	10340	4921	5698	6116
185	95.0	2.0	1.6	1.4	1.4	1.6	2.5	2.5	2.5	2.8	2.9	3.0	56.6	62.8	65.0	9968	11365	12481	5870	6668	7216
240	120.0	2.2	1.6	1.6	1.6	1.6	2.5	2.5	2.5	3.0	3.1	3.2	65.1	70.9	72.3	12495	14139	15454	7199	8086	8645
300	150.0	2.4	1.8	1.6	1.6	1.8	2.5	2.5	3.15	3.2	3.3	3.5	70.8	78.1	77.5	15024	17101	19338	8399	9530	10818
400	185.0	2.6	2.0	1.8	1.8	1.8	3.15	3.15	3.15	3.5	3.6	3.8	81.9	88.6	82.4	19977	22502	24053	11237	12595	12788

Specification Table 8

Conductor dimensions (mm2)		Insulation thickness (mm)		Steel tape armoured cable
				PVC bedding thickness			Armored wire Outer diameter			Sheath thickness			Outer diameter (approximate)			Cable weight (approximate) (Kg/km)			Cable weight (approximate) (Kg/km)
				mm			mm			mm			mm			Copper core			Aluminum core
Phase line	Null line	Phase line	Null line	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C
2.5	1.5	0.8	0.8	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	14.1	14.4	15.4	358	317	330	—	—	—
4	2.5	1.0	0.8	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	16.0	17.1	17.7	451	414	431	360	308	316
6	4.0	1.0	1.0	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	17.4	18.9	19.1	558	534	550	421	372	376

10	6.0	1.0	1.0	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	19.8	21.3	22.0	755	735	780	529	471	491
16	10.0	1.0	1.0	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	22.5	24.2	24.7	1034	1032	1106	669	604	640
25	16.0	1.2	1.0	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	25.7	28.3	28.9	1440	1483	1587	867	810	857
35	16.0	1.2	1.0	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.9	1.9	28.1	29.2	29.3	1713	1782	1979	958	933	1004
50	25.0	1.4	1.2	0.9	0.9	0.9	0.2	0.2	0.2	1.9	2.0	2.1	32.0	33.2	34.5	2349	2489	2771	1248	1230	1355
70	35.0	1.4	1.2	0.9	1.2	1.2	0.2	0.5	0.5	2.1	2.2	2.2	33.0	38.8	39.7	3124	3412	3781	1579	1647	1795
95	50.0	1.6	1.4	1.2	1.2	1.2	0.5	0.5	0.5	2.3	2.4	2.4	39.5	44.3	45.2	4581	4611	5070	2469	2185	2359
120	70.0	1.6	1.4	1.2	1.2	1.4	0.5	0.5	0.5	2.4	2.5	2.6	42.2	47.7	50.1	5585	5791	6368	2873	2639	2900
150	70.0	1.8	1.4	1.2	1.4	1.4	0.5	0.5	0.5	2.5	2.6	2.7	46.1	52.3	54.4	6629	6832	7665	3350	3112	3441
185	95.0	2.0	1.6	1.4	1.4	1.4	0.5	0.5	0.5	2.7	2.8	2.9	51.8	57.8	59.8	8211	8546	9478	4112	3849	4213
240	120.0	2.2	1.6	1.4	1.4	1.4	0.5	0.5	0.5	2.9	3.0	3.1	59.9	67.5	69.1	10408	10881	12110	5112	4828	5301
300	150.0	2.4	1.8	1.4	1.4	1.4	0.5	0.5	0.5	3.1	3.2	3.3	65.6	76.7	79.0	12750	13506	15018	6124	5935	6499
400	185.0	2.6	2.0	1.4	1.4	1.4	0.5	0.5	0.8	3.3	3.5	3.7	74.8	83.3	79.3	16399	17393	19405	7659	7486	8140

Specification Table 9

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)	Insulation resistance 20°C (Min) (MΩ/km)
Cross sectional area (mm2)	Structure	Oute diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)	Insulation resistance 20°C (Min) (MΩ/km)
10	Compact round	3.9	2.2	0.12	1.4	13.3	280	217	100
16	Compact round	5.0	2.2	0.12	1.4	14.4	358	258	100
25	Compact round	6.0	2.2	0.12	1.4	15.4	461	305	100
35	Compact round	7.2	2.2	0.12	1.5	16.8	585	366	100

50	Compact round	8.4	2.2	0.12	1.5	18.0	746	434	100
70	Compact round	10.0	2.2	0.12	1.6	19.8	972	534	100
95	Compact round	11.7	2.2	0.12	1.6	21.5	1236	641	100
120	Compact round	13.1	2.2	0.12	1.7	23.1	1504	752	100
150	Compact round	14.6	2.2	0.12	1.7	24.6	1809	869	100
185	Compact round	16.3	2.2	0.12	1.8	26.5	2175	1017	100
240	Compact round	18.5	2.2	0.12	1.8	28.7	2723	1220	100
300	Compact round	20.7	2.4	0.12	1.9	31.5	3360	1480	100
400	Compact round	23.8	2.6	0.12	2.1	35.4	4403	1896	100
500	Compact round	26.6	2.8	0.12	2.2	38.8	5431	2298	100
630	Compact round	30.1	2.8	0.12	2.3	42.5	6721	2772	100
800	Compact round	35.0	2.8	0.12	2.4	47.6	8415	3401	100
1000	Milliken conductor	39.5	3.0	0.12	2.6	52.9	10443	4175	100

Specification Table 10

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)	Insulation resistance 20°C (Min) (MΩ/km)
Cross sectional area (mm2)	Structure	Oute diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)	Insulation resistance 20°C (Min) (MΩ/km)
10	Compact round	3.9	2.2	0.1	1.8	23.7	781	592	100
16	Compact round	5.0	2.2	0.1	1.8	26.0	1055	753	100
25	Compact round	6.0	2.2	0.1	1.8	28.2	1359	887	100
35	Compact round	7.2	2.2	0.1	1.9	31.0	1739	1079	100

50	Compact round	8.4	2.2	0.1	2.0	33.8	2146	1202	100
70	Compact round	10.0	2.2	0.1	2.1	37.4	2805	1481	100
95	Compact round	11.7	2.2	0.1	2.2	41.3	3609	1812	100
120	Compact round	13.1	2.2	0.1	2.3	44.5	4397	2127	100
150	Compact round	14.6	2.2	0.1	2.4	47.9	5337	2500	100
185	Compact round	16.3	2.2	0.1	2.6	52.0	6446	2947	100
240	Compact round	18.5	2.2	0.1	2.7	56.9	8113	3573	100
300	Compact round	20.7	2.4	0.1	2.9	62.9	10041	4361	100
400	Compact round	23.8	2.6	0.1	3.2	71.1	13178	5604	100
500	Compact round	26.6	2.8	0.1	3.4	78.4	16291	6824	100

Specification Table 11

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)	Insulation resistance 20°C (Min) (MΩ/km)
Cross sectional area (mm2)	Structure	Oute diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)	Insulation resistance 20°C (Min) (MΩ/km)
10	Compact round	3.9	2.2	0.1	1.2	1.6	1.9	30.1	1712	1523	100
16	Compact round	5.0	2.2	0.1	1.2	1.6	2.0	32.6	2084	1782	100
25	Compact round	6.0	2.2	0.1	1.2	2.0	2.1	35.8	2735	2263	100
35	Compact round	7.2	2.2	0.1	1.2	2.0	2.2	38.6	3218	2558	100

50	Compact round	8.4	2.2	0.1	1.2	2.0	2.3	41.4	3753	2809	100
70	Compact round	10.0	2.2	0.1	1.2	2.0	2.4	45.0	4573	3249	100
95	Compact round	11.7	2.2	0.1	1.3	2.5	2.6	50.7	6145	4348	100
120	Compact round	13.1	2.2	0.1	1.4	2.5	2.7	54.1	7157	4887	100
150	Compact round	14.6	2.2	0.1	1.4	2.5	2.8	57.5	8303	5465	100
185	Compact round	16.3	2.2	0.1	1.5	2.5	3.0	61.8	9655	6155	100
240	Compact round	18.5	2.2	0.1	1.6	2.5	3.1	66.9	11657	7117	100
300	Compact round	20.7	2.4	0.1	1.7	2.5	3.3	73.1	13943	8263	100
400	Compact round	23.8	2.6	0.1	1.8	3.15	3.6	82.8	18508	10935	100
500	Compact round	26.6	2.8	0.1	2.0	3.15	3.8	90.5	22256	12789	100

Specification Table 12

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)	Insulation resistance 20°C (Min) (MΩ/km)
Cross sectional area (mm2)	Structure	Oute diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)	Insulation resistance 20°C (Min) (MΩ/km)
10	Compact round	3.9	2.2	0.1	1.2	0.2	1.8	26.9	1080	891	100
16	Compact round	5.0	2.2	0.1	1.2	0.2	1.8	29.2	1383	1081	100
25	Compact round	6.0	2.2	0.1	1.2	0.2	1.9	31.6	1728	1256	100
35	Compact round	7.2	2.2	0.1	1.2	0.2	2.0	34.4	2143	1482	100

50	Compact round	8.4	2.2	0.1	1.2	0.2	2.1	37.2	2584	1640	100
70	Compact round	10.0	2.2	0.1	1.2	0.5	2.2	42.0	3684	2360	100
95	Compact round	11.7	2.2	0.1	1.3	0.5	2.4	46.3	4620	2823	100
120	Compact round	13.1	2.2	0.1	1.4	0.5	2.5	49.7	5507	3237	100
150	Compact round	14.6	2.2	0.1	1.4	0.5	2.6	53.1	6528	3690	100
185	Compact round	16.3	2.2	0.1	1.5	0.5	2.7	57.2	7735	4235	100
240	Compact round	18.5	2.2	0.1	1.6	0.5	2.9	62.5	9578	5039	100
300	Compact round	20.7	2.4	0.1	1.7	0.5	3.1	68.7	11687	6007	100
400	Compact round	23.8	2.6	0.1	1.8	0.5	3.4	77.1	15066	7492	100
500	Compact round	26.6	2.8	0.1	2.0	0.8	3.6	86.0	19277	9810	100

Specification Table 13

Model		Name	Laying Occasion
Copper core	Aluminum core	Name	Laying Occasion
YJV	YJLV	XLPE insulated PVC sheathed power cable	Laid indoors, and in tunnels and pipelines
YJY	YJLY	XLPE insulated PE sheathed power cable	Laid indoors, and in tunnels and pipelines
YJV22	YJLV22	XLPE insulated steel tape armored PVC sheathed power cable	Adapt for buried laying, not suitable for in-pipe laying
YJV23	YJLV23	XLPE insulated steel tape armored PE sheathed power cable	Adapt for buried laying, not suitable for in-pipe laying
YJV32	YJLV32	XLPE insulated thin steel wire armored PVC sheathed power cable	Laid on riverbeds of rivers or shallow water as connecting lines across rivers or petroleum/natural gas platforms, also used in land high drop areas.
YJV33	YJLV33	XLPE insulated thin steel wire armored PVC sheathed power cable

YJV42	YJLV42	XLPE insulated thick steel wire armored PVC sheathed power cable
YJV43	YJLV43	XLPE insulated thick steel wire armored PE sheathed power cable

Specification Table 14

Number of cores	0.6/1kv Cross sectionalarea (mm2)	1.8/3
Single core 1	1.5-1000	10-1000
Twin core 2	1.5-240	10-240
Triple core 3	1.5-300	10-300
Three big cores and two small cores 3+2	2.5-300	10-300

Specification Table 15

Conductor dimensions (mm2)	Insulation thickness (mm)	Nonmetallic sheath, unarmored cable
		Sheath thickness					Outer diameter (approximate)					Cable weight (Kg/km)
		mm					mm					Copper core					Aluminum core
		1C	2C	3C	4C	5C	1C	2C	3C	4C	5C	1C	2C	3C	4C	5C	1C	2C	3C	4C	5C
1.5	0.7	1.4	1.8	1.8	1.8	1.8	5.6	10.0	10.4	11.1	11.9	45	122	139	167	195	35	103	111	506	148
2.5	0.7	1.4	1.8	1.8	1.8	1.8	6.0	10.8	11.2	12.1	13.0	57	148	175	215	253	42	117	129	641	175
4	0.7	1.4	1.8	1.8	1.8	1.8	6.5	11.7	12.3	13.2	14.3	75	185	228	285	337	50	135	153	833	212

6	0.7	1.4	1.8	1.8	1.8	1.8	7.0	12.7	13.4	14.4	15.6	97	239	295	373	445	60	165	183	1086	258
10	0.7	1.4	1.8	1.8	1.8	1.8	8.1	15.0	15.8	17.2	18.7	143	346	445	568	681	80	220	256	1629	366
16	0.7	1.4	1.8	1.8	1.8	1.8	9.2	17.2	18.2	19.8	21.7	206	494	660	835	1008	106	292	358	2377	505
25	0.9	1.4	1.8	1.8	1.8	1.8	10.6	20.0	21.2	23.2	25.5	303	711	951	1217	1483	146	396	479	3457	696
35	0.9	1.4	1.8	1.8	1.8	1.8	11.8	22.4	23.8	26.1	28.7	403	919	1267	1598	1959	185	478	606	4528	858
50	1.0	1.4	1.8	1.8	1.9	2.0	13.2	25.2	26.8	29.7	32.9	554	1188	1675	2209	2733	241	558	731	6190	1160
70	1.1	1.4	1.9	1.9	2.0	2.1	15.0	22.2	25.7	30.0	36.2	755	1564	2260	2987	3735	317	683	939	8348	1533
95	1.1	1.5	2.0	2.0	2.1	2.3	16.9	25.2	29.1	34.2	40.3	1004	2069	3003	3977	4975	409	874	1210	11091	1987
120	1.2	1.5	2.1	2.1	2.3	2.4	18.5	28.2	32.4	37.2	44.7	1250	2592	3763	4983	6228	498	1082	1498	13880	2453
150	1.4	1.6	2.2	2.3	2.4	2.6	20.6	31.0	36.2	41.2	50.3	1558	3214	4700	6202	7777	619	1327	1869	17280	3059
185	1.6	1.6	2.3	2.4	2.6	2.8	22.7	36.8	40.4	46.2	58.6	1908	3978	5779	7655	9623	750	1650	2287	21355	3803
240	1.7	1.7	2.5	2.6	2.8	3.0	25.3	41.6	47.4	53.3	63.1	2450	5104	7456	9859	12326	947	2084	2926	27399	4776
300	1.8	1.8	2.7	2.8	3.0	3.2	27.9	46.4	50.1	59.4	68.2	3043	6328	9234	12260	15291	1163	2541	3554	33997	5824
400	2.0	1.9	3.1	3.3	3.6	31.6	57.2	68.4	83.1	4021	12224	16240	20305	1514	4651	36685	7683
500	2.2	2.0	3.3	3.3	35.0	74.2	82.2	5002	15136	20176	1869	5849	7554
630	2.4	2.2	39.3	6290	2342
800	2.6	2.3	44.8	7957	2943
1000	2.8	2.4	49.9	9897	3629

Specification Table 16

Conductor dimensions (mm2)		Insulation thickness (mm)		Nonmetallic sheath, unarmored cable
				Sheath thickness			Outer diameter (approximate)			Cable weight (Kg/km)
				mm			mm			Copper core			Aluminum core
Phase line	Null line	Phase line	Null line	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C
2.5	1.5	0.7	0.7	1.8	1.8	1.8	11.9	12.6	12.8	206	229	253	—	—	—
4	2.5	0.7	0.7	1.8	1.8	1.8	12.9	13.7	14.0	268	302	323	178	196	197
6	4.0	0.7	0.7	1.8	1.8	1.8	14.2	15.1	15.4	352	402	428	215	240	237

10	6.0	0.7	0.7	1.8	1.8	1.8	16.5	17.5	18.1	517	584	645	290	321	328
16	10.0	0.7	0.7	1.8	1.8	1.8	19.2	20.5	21.1	761	865	955	396	437	444
25	16.0	0.9	0.7	1.8	1.8	1.8	22.4	23.9	24.7	1110	1278	1406	538	605	606
35	16.0	0.9	0.7	1.8	1.8	1.8	24.6	25.9	27.3	1402	1558	1805	647	709	731
50	25.0	1.0	0.9	1.8	1.9	1.9	28.0	29.9	31.3	1943	2243	2531	842	984	975
70	35.0	1.1	0.9	1.9	2.0	2.1	29.5	33.2	34.4	2645	3038	3412	1101	1273	1234
95	50.0	1.1	1.0	2.1	2.2	2.2	33.2	37.8	38.7	3554	4105	4551	1443	1679	1579
120	70.0	1.2	1.1	2.2	2.3	2.4	36.3	41.6	43.6	4504	5265	5791	1793	2112	1993
150	70.0	1.4	1.1	2.3	2.4	2.5	39.7	45.9	47.9	5425	6200	7018	2147	2480	2380
185	95.0	1.6	1.1	2.5	2.6	2.7	45.4	51.4	53.3	6781	7792	8720	2683	3095	2946
240	120.0	1.7	1.2	2.7	2.8	2.9	53.0	58.6	60.1	8708	9960	11172	3412	3907	3701
300	150.0	1.8	1.4	2.9	3.0	3.1	58.3	65.4	62.9	10818	12394	13827	4192	4823	4480
400	185.0	2.0	1.6	3.1	3.3	3.4	67.5	74.2	67.8	14163	16132	18093	5423	6225	5725

Specification Table 17

Conductor dimensions (mm2)	nsulation thickness (mm)	Armored wire cable
		PVC bedding thickness				Armored wire Outer diameter				Sheath thickness				Outer diameter (approximate)				Cable weight (approximate) (Kg/km)				Cable weight (approximate) (Kg/km)
		mm				mm				mm				mm				Copper core				Aluminum core
		2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C
1.5	0.7	1.0	1.0	1.0	1.0	0.8	0.8	0.8	0.8	1.8	1.8	1.8	1.8	14.2	14.6	15.3	16.1	343	367	414	445	324	339	377	399
2.5	0.7	1.0	1.0	1.0	1.0	0.8	0.8	0.8	0.8	1.8	1.8	1.8	1.8	15.0	15.4	16.3	17.2	317	421	485	528	286	374	423	450
4	0.7	1.0	1.0	1.0	1.0	0.8	0.8	0.8	1.25	1.8	1.8	1.8	1.8	15.9	16.5	17.4	19.4	369	497	576	782	319	422	476	658

6	0.7	1.0	1.0	1.0	1.0	0.8	0.8	1.25	1.25	1.8	1.8	1.8	1.8	16.9	17.6	19.5	20.7	443	587	816	929	368	475	666	742
10	0.7	1.0	1.0	1.0	1.0	1.25	1.25	1.25	1.25	1.8	1.8	1.8	1.8	20.1	20.9	22.3	23.8	720	927	1098	1284	595	738	847	969
16	0.7	1.0	1.0	1.0	1.0	1.25	1.25	1.6	1.6	1.8	1.8	1.8	1.8	22.3	23.3	25.6	27.5	925	1217	1588	1831	723	915	1186	1328
25	0.9	1.0	1.0	1.0	1.0	1.6	1.6	1.6	1.6	1.8	1.8	1.8	1.8	25.8	27.0	29.0	31.3	1350	1746	2091	2455	1035	1274	1462	1669
35	0.9	1.0	1.0	1.0	1.0	1.6	1.6	1.6	1.6	1.8	1.8	1.9	1.9	28.2	29.6	32.1	34.7	1642	2161	2586	3096	1202	1500	1705	1995
50	1.0	1.0	1.0	1.0	1.2	1.6	1.6	1.6	2.0	1.8	1.9	2.0	2.1	31.0	32.8	35.7	40.1	2053	2685	3322	4332	1424	1741	2064	2759
70	1.1	1.0	1.2	1.2	1.2	1.6	2.0	2.0	2.0	2.0	2.0	2.2	2.3	28.2	32.9	37.4	43.6	2272	3484	4417	5448	1389	2160	2651	3242
95	1.1	1.2	1.2	1.2	1.4	2.0	2.0	2.0	2.5	2.1	2.2	2.3	2.5	32.4	36.5	41.6	49.5	3126	4374	5571	7465	1929	2577	3175	4471
120	1.2	1.2	1.2	1.4	1.4	2.0	2.0	2.5	2.5	2.2	2.3	2.5	2.6	35.4	39.8	46.4	53.9	3755	5291	7287	8986	2241	3021	4260	5203
150	1.4	1.2	1.4	1.4	1.4	2.0	2.5	2.5	2.5	2.3	2.5	2.7	2.8	38.2	45.4	50.6	59.5	4485	6912	8738	10850	2594	4075	4955	6121
185	1.6	1.4	1.4	1.4	1.6	2.5	2.5	2.5	2.5	2.5	2.6	2.8	3.0	46.0	49.6	55.4	68.2	5999	8243	10431	13220	3666	4743	5766	7388
240	1.7	1.4	1.6	1.6	1.6	2.5	2.5	2.5	3.15	2.7	2.8	3.0	3.3	50.8	57.0	62.9	74.2	7325	10375	13098	17103	4298	5835	7045	9537
300	1.8	1.6	1.6	1.6	1.8	2.5	2.5	2.5	3.15	2.9	3.0	3.2	3.5	56.0	59.7	69.0	79.7	8805	12311	15861	20414	5018	6631	8287	10947
400	2.0	1.6	1.8	2.5	3.15	3.3	3.6	66.8	79.9	15679	21307	8105	11209
500	2.2	1.8	3.15	3.5	85.5	20806	11339

Specification Table 18

Conductor dimensions (mm2)	nsulation thickness (mm)	Steel tape armoured cable
		PVC bedding thickness				Armored wire Outer diameter				Sheath thickness				Outer diameter (approximate)				Cable weight (approximate) (Kg/km)				Cable weight (approximate) (Kg/km)
		mm				mm				mm				mm				Copper core				Aluminum core
		2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C
1.5	0.7	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	11.8	12.2	12.9	13.7	215	236	274	308	196	208	237	261
2.5	0.7	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	12.6	13.0	13.9	14.8	250	281	333	378	218	234	271	300
4	0.7	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	13.5	14.1	15.0	16.1	296	346	412	475	246	271	312	351

6	0.7	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	14.5	15.2	16.2	17.4	361	424	513	597	286	312	363	410
10	0.7	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	16.8	17.6	19.0	20.5	492	600	737	866	366	411	485	552
16	0.7	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	19.0	20.0	21.6	23.5	663	840	1032	1225	462	538	629	722
25	0.9	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	21.8	23.0	25.0	27.3	910	1162	1450	1740	595	690	821	954
35	0.9	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.9	24.2	25.6	27.9	30.7	1155	1506	1861	2265	715	845	980	1164
50	1.0	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.9	2.0	27.0	28.6	31.5	34.7	1507	1947	2510	3067	877	1003	1252	1494
70	1.1	0.9	0.9	0.9	1.2	0.2	0.2	0.2	0.5	1.9	2.0	2.1	2.2	24.0	27.7	32.0	40.0	1809	2531	3304	4549	927	1207	1539	2342
95	1.1	0.9	1.2	1.2	1.2	0.2	0.5	0.5	0.5	2.0	2.2	2.3	2.4	27.0	33.1	38.2	44.1	2347	3673	4764	5877	1149	1876	2368	2882
120	1.2	1.2	1.2	1.2	1.2	0.5	0.5	0.5	0.5	2.2	2.3	2.4	2.6	32.0	36.4	41.0	48.7	3256	4507	5815	7249	1743	2238	2789	3466
150	1.4	1.2	1.2	1.4	1.4	0.5	0.5	0.5	0.5	2.3	2.4	2.6	2.7	34.8	40.0	45.6	54.5	3951	5509	7189	8953	2060	2672	3406	4225
185	1.6	1.2	1.2	1.4	1.4	0.5	0.5	0.5	0.5	2.4	2.6	2.7	2.9	40.6	44.4	50.4	62.8	4844	6701	8734	10990	2511	3202	4068	5158
240	1.7	1.4	1.4	1.4	1.4	0.5	0.5	0.5	0.5	2.6	2.7	2.9	3.1	45.8	51.6	57.5	67.3	6127	8563	11100	13794	3100	4023	5047	6228
300	1.8	1.4	1.4	1.4	1.4	0.5	0.5	0.5	0.5	2.8	2.9	3.1	3.4	50.6	54.3	63.6	72.6	7408	10400	13640	16907	3622	4719	6067	7440
400	2.0	1.4	1.4	0.5	0.5	3.2	3.4	61.4	72.6	13550	17825	5976	7727
500	1.4	0.5	3.4	78.4	17038	7571

Specification Table 19

Conductor dimensions (mm2)		Insulation thickness (mm)		Armored wire cable
				PVC bedding thickness			Armored wire outer diameter			Sheath thickness			Outer diameter (approximate)			Cable weight (approximate) (Kg/km)			Cable weight (approximate) (Kg/km)
				mm			mm			mm			mm			Copper core			Aluminum core
Phase line	Null line	Phase line	Null line	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C
2.5	1.5	0.7	0.7	1.0	1.0	1.0	0.8	0.8	0.8	1.8	1.8	1.8	16.1	16.8	17.0	468	504	533	—	—	—
4	2.5	0.7	0.7	1.0	1.0	1.0	0.8	1.25	1.25	1.8	1.8	1.8	17.1	18.8	19.1	549	730	753	458	624	638
6	4.0	0.7	0.7	1.0	1.0	1.0	1.25	1.25	1.25	1.8	1.8	1.8	19.3	20.2	20.5	794	869	907	657	707	733

10	6.0	0.7	0.7	1.0	1.0	1.0	1.25	1.25	1.25	1.8	1.8	1.8	21.6	22.6	23.2	1023	1117	1201	797	853	912
16	10.0	0.7	0.7	1.0	1.0	1.0	1.25	1.6	1.6	1.8	1.8	1.8	24.3	26.3	26.9	1345	1640	1749	980	1212	1284
25	16.0	0.9	0.7	1.0	1.0	1.0	1.6	1.6	1.6	1.8	1.8	1.8	28.2	29.7	30.5	1946	2172	2322	1374	1499	1592
35	16.0	0.9	0.7	1.0	1.0	1.0	1.6	1.6	1.6	1.8	1.8	1.9	30.4	31.7	33.3	2317	2515	2835	1562	1665	1859
50	25.0	1.0	0.9	1.0	1.0	1.2	1.6	1.6	2.0	1.9	2.0	2.1	34.0	35.9	38.7	2994	3357	4021	1893	2098	2605
70	35.0	1.1	0.9	1.2	1.2	1.2	2.0	2.0	2.0	2.1	2.1	2.2	36.9	40.4	41.6	4044	4577	5014	2499	2813	3029
95	50.0	1.1	1.0	1.2	1.2	1.2	2.0	2.0	2.0	2.2	2.3	2.4	40.4	45.0	46.1	5095	5837	6362	2984	3411	3651
120	70.0	1.2	1.1	1.2	1.4	1.4	2.0	2.5	2.5	2.4	2.5	2.6	43.7	50.8	52.8	6193	7821	8453	3482	4668	4985
150	70.0	1.4	1.1	1.4	1.4	1.4	2.5	2.5	2.5	2.5	2.6	2.7	48.9	55.1	57.1	7839	8969	9893	4560	5249	5669
185	95.0	1.6	1.1	1.4	1.4	1.6	2.5	2.5	2.5	2.7	2.8	2.9	54.6	60.6	62.9	9506	10871	11997	5408	6174	6732
240	120.0	1.7	1.2	1.6	1.6	1.6	2.5	2.5	2.5	2.9	3.0	3.1	62.6	68.2	69.7	11941	13507	14820	6645	7454	8010
300	150.0	1.8	1.4	1.6	1.6	1.6	2.5	2.5	3.15	3.1	3.2	3.4	67.9	75.0	74.0	14363	16353	18430	7737	8781	9911
400	185.0	2.0	1.6	1.6	1.8	1.8	3.15	3.15	3.15	3.4	3.5	3.7	78.6	85.5	79.3	19145	21623	23153	10405	11716	11889

Specification Table 20

Conductor dimensions (mm2)		Insulation thickness (mm)		Steel tape armoured cable
				PVC bedding thickness			Armored wire outer diameter			Sheath thickness			Outer diameter (approximate)			Cable weight (approximate) (Kg/km)			Cable weight (approximate) (Kg/km)
				mm			mm			mm			mm			Copper core			Aluminum core
Phase line	Null line	Phase line	Null line	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C
2.5	1.5	0.7	0.7	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	13.9	14.6	15.1	254	280	307	—	—	—
4	2.5	0.7	0.7	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	15.2	15.8	16.3	322	357	381	232	251	266
6	4.0	0.7	0.7	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	16.4	17.1	17.6	410	461	491	273	299	316

10	6.0	0.7	0.7	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	18.6	19.8	20.4	582	655	718	356	392	429
16	10.0	0.7	0.7	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	21.0	22.3	23.0	834	943	1036	469	516	570
25	16.0	0.9	0.7	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	24.5	26.3	27.3	1198	1374	1506	625	700	776
35	16.0	0.9	0.7	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	24.2	27.5	27.6	1477	1655	1896	722	805	921
50	25.0	1.0	0.9	0.9	0.9	0.9	0.2	0.2	0.2	1.9	1.9	2.0	28.7	31.1	32.4	2052	2351	2657	950	1092	1241
70	35.0	1.1	0.9	0.9	0.9	1.2	0.2	0.2	0.5	2.0	2.1	2.2	31.9	35.9	38.3	2775	3186	3621	1231	1421	1635
95	50.0	1.1	1.0	1.2	1.2	1.2	0.5	0.5	0.5	2.2	2.3	2.3	37.1	41.7	42.6	3756	4333	4784	1645	1907	2073
120	70.0	1.2	1.1	1.2	1.2	1.2	0.5	0.5	0.5	2.3	2.4	2.5	40.2	45.5	47.5	4724	5514	6053	2013	2362	2585
150	70.0	1.4	1.1	1.2	1.2	1.4	0.5	0.5	0.5	2.5	2.5	2.6	43.8	50.2	52.3	5684	6479	7351	2406	2759	3126
185	95.0	1.6	1.1	1.4	1.4	1.4	0.5	0.5	0.5	2.6	2.7	2.8	49.8	55.7	57.7	7098	8147	9089	3000	3450	3824
240	120.0	1.7	1.2	1.4	1.4	1.4	0.5	0.5	0.5	2.8	2.9	3.0	57.4	62.8	64.5	9075	10362	11586	3779	4309	4776
300	150.0	1.8	1.4	1.4	1.4	1.4	0.5	0.5	0.5	3.0	3.1	3.2	62.3	73.5	75.6	11216	12895	14381	4590	5324	5862
400	185.0	2.0	1.6	1.4	1.4	1.4	0.5	0.5	0.8	3.3	3.4	3.6	74.0	81.2	76.2	14688	16680	18656	5948	6774	7391

Specification Table 21

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)	Insulation resistance 20°C (Min) (MΩ/km)
Cross sectional area (mm2)	Structure	Oute diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)	Insulation resistance 20°C (Min) (MΩ/km)
10	Compact round	3.9	2.0	0.12	1.4	12.9	252	189	500
16	Compact round	5.0	2.0	0.12	1.4	14.0	326	226	500
25	Compact round	6.0	2.0	0.12	1.4	15.0	426	269	500
35	Compact round	7.2	2.0	0.12	1.4	16.2	538	319	500

50	Compact round	8.4	2.0	0.12	1.5	17.6	702	390	500
70	Compact round	10.0	2.0	0.12	1.5	19.2	914	475	500
95	Compact round	11.7	2.0	0.12	1.6	21.1	1181	586	500
120	Compact round	13.1	2.0	0.12	1.6	22.5	1433	681	500
150	Compact round	14.6	2.0	0.12	1.7	24.2	1743	803	500
185	Compact round	16.3	2.0	0.12	1.7	25.9	2091	933	500
240	Compact round	18.5	2.0	0.12	1.8	28.3	2643	1140	500
300	Compact round	20.7	2.0	0.12	1.9	30.7	3244	1364	500
400	Compact round	23.8	2.0	0.12	2.0	34.0	4225	1718	500
500	Compact round	26.6	2.2	0.12	2.1	37.4	5227	2093	500
630	Compact round	30.1	2.4	0.12	2.2	41.5	6523	2574	500
800	Compact round	35.0	2.6	0.12	2.3	47.0	8221	3207	500
1000	Milliken conductor	39.5	2.8	0.12	2.5	52.3	10371	4104	500

Specification Table 22

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)	Insulation resistance 20°C (Min) (MΩ/km)
Cross sectional area (mm2)	Structure	Oute diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)	Insulation resistance 20°C (Min) (MΩ/km)
10	Compact round	3.9	2.0	0.1	1.8	22.8	700	511	500
16	Compact round	5.0	2.0	0.1	1.8	25.2	964	662	500
25	Compact round	6.0	2.0	0.1	1.8	27.3	1255	783	500
35	Compact round	7.2	2.0	0.1	1.9	30.1	1623	962	500

50	Compact round	8.4	2.0	0.1	2.0	32.9	2016	1072	500
70	Compact round	10.0	2.0	0.1	2.1	36.6	2660	1336	500
95	Compact round	11.7	2.0	0.1	2.2	40.4	3444	1647	500
120	Compact round	13.1	2.0	0.1	2.3	43.6	4216	1946	500
150	Compact round	14.6	2.0	0.1	2.4	47.1	5141	2304	500
185	Compact round	16.3	2.0	0.1	2.5	50.9	6207	2707	500
240	Compact round	18.5	2.0	0.1	2.7	56.1	7874	3335	500
300	Compact round	20.7	2.0	0.1	2.8	61.0	9666	3986	500
400	Compact round	23.8	2.0	0.1	3.1	68.3	12659	5086	500
500	Compact round	26.6	2.2	0.1	3.3	75.6	15695	6228	500

Specification Table 23

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)	Insulation resistance 20°C (Min) (MΩ/km)
Cross sectional area (mm2)	Structure	Oute diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)	Insulation resistance 20°C (Min) (MΩ/km)
10	Compact round	3.9	2.0	0.1	1.2	1.6	1.8	29.0	1640	1451	500
16	Compact round	5.0	2.0	0.1	1.2	1.6	1.9	31.6	2010	1708	500
25	Compact round	6.0	2.0	0.1	1.2	1.6	2.0	33.9	2407	1935	500
35	Compact round	7.2	2.0	0.1	1.2	2.0	2.1	37.5	3123	2462	500

50	Compact round	8.4	2.0	0.1	1.2	2.0	2.2	40.3	3652	2709	500
70	Compact round	10.0	2.0	0.1	1.2	2.0	2.3	44.0	4469	3145	500
95	Compact round	11.7	2.0	0.1	1.3	2.5	2.5	49.6	6012	4215	500
120	Compact round	13.1	2.0	0.1	1.3	2.5	2.6	52.8	6995	4725	500
150	Compact round	14.6	2.0	0.1	1.4	2.5	2.7	56.5	8160	5323	500
185	Compact round	16.3	2.0	0.1	1.5	2.5	2.8	60.5	9474	5974	500
240	Compact round	18.5	2.0	0.1	1.6	2.5	3.0	65.9	11498	6958	500
300	Compact round	20.7	2.0	0.1	1.7	2.5	3.2	71.2	13636	7956	500
400	Compact round	23.8	2.0	0.1	1.8	3.15	3.5	80.0	18022	10448	500
500	Compact round	26.6	2.2	0.1	1.9	3.15	3.7	87.5	21634	12167	500

Specification Table 24

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)	Insulation resistance 20°C (Min) (MΩ/km)
Cross sectional area (mm2)	Structure	Oute diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)	Insulation resistance 20°C (Min) (MΩ/km)
10	Compact round	3.9	2.0	0.1	1.2	0.2	1.8	26.0	988	799	500
16	Compact round	5.0	2.0	0.1	1.2	0.2	1.8	28.4	1281	979	500
25	Compact round	6.0	2.0	0.1	1.2	0.2	1.9	30.7	1613	1141	500
35	Compact round	7.2	2.0	0.1	1.2	0.2	2.0	33.5	2015	1354	500

50	Compact round	8.4	2.0	0.1	1.2	0.2	2.1	36.3	2443	1499	500
70	Compact round	10.0	2.0	0.1	1.2	0.5	2.2	41.2	3520	2196	500
95	Compact round	11.7	2.0	0.1	1.3	0.5	2.3	45.2	4412	2615	500
120	Compact round	13.1	2.0	0.1	1.3	0.5	2.4	48.4	5257	2987	500
150	Compact round	14.6	2.0	0.1	1.4	0.5	2.6	52.3	6312	3475	500
185	Compact round	16.3	2.0	0.1	1.5	0.5	2.7	56.3	7496	3997	500
240	Compact round	18.5	2.0	0.1	1.6	0.5	2.9	61.7	9319	4780	500
300	Compact round	20.7	2.0	0.1	1.7	0.5	3.0	66.8	11265	5585	500
400	Compact round	23.8	2.0	0.1	1.8	0.5	3.3	74.3	14476	6903	500
500	Compact round	26.6	2.2	0.1	1.9	0.5	3.5	81.8	17738	8271	500

Specification Table 25

Item	Single-core		Three-core
Item	Non-armored	Armored	Non-armored	Armored
Installation	20D	15D	15D	12D
Close to the terminal and connection box	15D	12D	12D	10D

Specification Table 26

Model		Name	Laying Occasion
Copper core	Aluminum core	Name	Laying Occasion
YJV	YJLV	XLPE insulated PVC sheathed power cable	Laid indoors, and in tunnels and pipelines
YJY	YJLY	XLPE insulated PE sheathed power cable	Laid indoors, and in tunnels and pipelines
YJV22	YJLV22	XLPE insulated steel tape armored PVC sheathed power cable	Adapt for buried laying, not suitable for in-pipe laying
YJV23	YJLV23	XLPE insulated steel tape armored PE sheathed power cable	Adapt for buried laying, not suitable for in-pipe laying
YJV32	YJLV32	XLPE insulated thin steel wire armored PVC sheathed power cable	Laid on riverbeds of rivers or shallow water as connecting lines across rivers or petroleum/natural gas platforms, also used in land high drop areas.
YJV33	YJLV33	XLPE insulated thin steel wire armored PVC sheathed power cable

YJV42	YJLV42	XLPE insulated thick steel wire armored PVC sheathed power cable
YJV43	YJLV43	XLPE insulated thick steel wire armored PE sheathed power cable
W	VLV	PVC insulated and sheathed power cable	Laid indoors, and in tunnels, pipelines, cable trenches, and flammable and severe corrosion places, and can not bear external mechanical forces.
VY	VLY	PVC insulated PE sheathed power cable	Laid indoors, and in pipelines, cable trenches and severe corrosion places, and cannot bear external mechanical forces.
VV22	VLV22	PVC insulated steel tape armored PVC sheathed power cable	Laid indoors, and in cable trenches, underground severe corrosion places, and cannot bear tension.
VV23	VLV23	PVC insulated steel tape armored PE sheathed power cable	Laid indoors, and in cable trenches and underground severe corrosion place, and cannot bear tension.
VV32	VLV32	PVC insulated thin steel wire armored PVC sheathed power cable	Laid under ground and in shafts, water and severe corrosion places, and cannot bear high tension.
VV33	VLV33	PVC insulated thin steel wire armored PVC sheathed power cable	Laid under ground and in shafts, water and severe corrosion places, and can bear high tension.
VV42	VLV42	PVC insulated thick steel wire armored PVC sheathed power cable	Laid under ground and in shafts and severe corrosion places, and can bear high tension.
VV43	VLV43	PVC insulated thick steel wire armored PE sheathed power cable	Laid under ground and in shafts and severe corrosion places, and can bear high tension.

Specification Table 27

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	2.5	0.12	1.5	17.2	510	354
35	Compact round	7.2	2.5	0.12	1.6	18.6	637	418
50	Compact round	8.4	2.5	0.12	1.6	19.8	800	488
70	Compact round	10.0	2.5	0.12	1.7	21.6	1029	591

95	Compact round	11.7	2.5	0.12	1.7	23.3	1296	701
120	Compact round	13.1	2.5	0.12	1.8	24.9	1566	815
150	Compact round	14.6	2.5	0.12	1.8	26.4	1873	934
185	Compact round	16.3	2.5	0.12	1.9	28.3	2244	1085
240	Compact round	18.5	2.6	0.12	1.9	30.7	2805	1302
300	Compact round	20.7	2.8	0.12	2.0	33.7	3456	1576
400	Compact round	23.8	3.0	0.12	2.2	37.4	4501	1994
500	Compact round	26.6	3.2	0.12	2.3	41.4	5546	2412
630	Compact round	30.1	3.2	0.12	2.4	45.1	6853	2905
800	Compact round	35.0	3.2	0.12	2.5	50.4	8576	3562
1000	Milliken conductor	39.5	3.2	0.12	2.6	55.3	10592	4306

Specification Table 28

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
10	Compact round	3.9	3.4	0.12	1.4	15.7	360	297
16	Compact round	5.0	3.4	0.12	1.4	16.8	444	344
25	Compact round	6.0	3.4	0.12	1.5	18.0	560	404
35	Compact round	7.2	3.4	0.12	1.5	19.2	684	465

50	Compact round	8.4	3.4	0.12	1.6	20.6	861	549
70	Compact round	10.0	3.4	0.12	1.6	22.2	1087	649
95	Compact round	11.7	3.4	0.12	1.7	24.1	1371	776
120	Compact round	13.1	3.4	0.12	1.7	25.5	1636	885
150	Compact round	14.6	3.4	0.12	1.8	27.2	1962	1023
185	Compact round	16.3	3.4	0.12	1.8	28.9	2326	1168
240	Compact round	18.5	3.4	0.12	1.9	31.3	2900	1397
300	Compact round	20.7	3.4	0.12	2.0	33.7	3523	1643
400	Compact round	23.8	3.4	0.12	2.1	37.0	4534	2027
500	Compact round	26.6	3.4	0.12	2.2	40.0	5538	2404
630	Compact round	30.1	3.4	0.12	2.3	43.7	6837	2889
800	Compact round	35.0	3.4	0.12	2.4	48.8	8545	3531
1000	Milliken conductor	39.5	3.4	0.12	2.6	53.7	10539	4271

Specification Table 29

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectiona area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	2.5	0.12	2.1	34.7	1521	1049
35	Compact round	7.2	2.5	0.12	2.2	37.5	1891	1230
50	Compact round	8.4	2.5	0.12	2.3	40.2	2402	1458
70	Compact round	10.0	2.5	0.12	2.4	43.9	3082	1760

95	Compact round	11.7	2.5	0.12	2.5	47.8	3914	2121
120	Compact round	13.1	2.5	0.12	2.6	51.1	4722	2456
150	Compact round	14.6	2.5	0.12	2.7	54.5	5676	2844
185	Compact round	16.3	2.5	0.12	2.8	58.4	6786	3293
240	Compact round	18.5	2.6	0.12	3.0	63.9	8535	4004
300	Compact round	20.7	2.8	0.12	3.2	70.3	10512	4849
400	Compact round	23.8	3.0	0.12	3.5	78.4	13664	6113
500	Compact round	26.6	3.2	0.12	3.7	87.0	16918	7479

Specification Table 30

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
10	Compact round	3.9	3.4	0.1	1.8	28.8	1003	815
16	Compact round	5.0	3.4	0.1	1.9	31.4	1311	1009
25	Compact round	6.0	3.4	0.1	2.0	33.8	1647	1175
35	Compact round	7.2	3.4	0.1	2.1	36.6	2052	1392

50	Compact round	8.4	3.4	0.1	2.2	39.3	2481	1537
70	Compact round	10.0	3.4	0.1	2.3	43.0	3174	1850
95	Compact round	11.7	3.4	0.1	2.4	46.8	4010	2213
120	Compact round	13.1	3.4	0.1	2.5	50.1	4827	2557
150	Compact round	14.6	3.4	0.1	2.6	53.5	5797	2960
185	Compact round	16.3	3.4	0.1	2.7	57.4	6916	3417
240	Compact round	18.5	3.4	0.1	2.9	62.5	8651	4112
300	Compact round	20.7	3.4	0.1	3.1	67.6	10540	4859
400	Compact round	23.8	3.4	0.1	3.3	74.7	13601	6027
500	Compact round	26.6	3.4	0.1	3.5	81.1	16645	7178

Specification Table 31

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	2.5	0.1	1.2	2.0	2.3	42.1	3317	2845
35	Compact round	7.2	2.5	0.1	1.3	2.5	2.5	46.7	4312	3651
50	Compact round	8.4	2.5	0.1	1.3	2.5	2.5	49.3	4972	4028
70	Compact round	10.0	2.5	0.1	1.4	2.5	2.7	53.3	5968	4646

95	Compact round	11.7	2.5	0.1	1.4	2.5	2.8	57.2	7033	5239
120	Compact round	13.1	2.5	0.1	1.5	2.5	2.9	60.6	8072	5807
150	Compact round	14.6	2.5	0.1	1.6	2.5	3.0	64.2	9288	6456
185	Compact round	16.3	2.5	0.1	1.6	2.5	3.1	68.1	10737	7245
240	Compact round	18.5	2.6	0.1	1.7	2.5	3.3	73.9	12869	8339
300	Compact round	20.7	2.8	0.1	1.8	3.15	3.5	81.8	16183	10520
400	Compact round	23.8	3.0	0.1	2.0	3.15	3.8	90.4	20070	12519
500	Compact round	26.6	3.2	0.1	2.1	3.15	4.1	99.3	24131	14692

Specification Table 32

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
10	Compact round	3.9	3.4	0.1	1.2	2.0	2.1	36.4	2385	2196
16	Compact round	5.0	3.4	0.1	1.2	2.0	2.1	38.8	2802	2500
25	Compact round	6.0	3.4	0.1	1.2	2.0	2.2	41.2	3236	2764
35	Compact round	7.2	3.4	0.1	1.2	2.0	2.3	44.0	3768	3107

50	Compact round	8.4	3.4	0.1	1.3	2.5	2.5	48.5	4890	3946
70	Compact round	10.0	3.4	0.1	1.3	2.5	2.6	52.2	5789	4465
95	Compact round	11.7	3.4	0.1	1.4	2.5	2.7	56.2	6856	5059
120	Compact round	13.1	3.4	0.1	1.5	2.5	2.8	59.7	7901	5631
150	Compact round	14.6	3.4	0.1	1.5	2.5	2.9	63.1	9076	6239
185	Compact round	16.3	3.4	0.1	1.6	2.5	3.1	67.4	10467	6968
240	Compact round	18.5	3.4	0.1	1.7	2.5	3.2	72.5	12514	7975
300	Compact round	20.7	3.4	0.1	1.8	3.15	3.4	79.1	15590	9910
400	Compact round	23.8	3.4	0.1	1.9	3.15	3.7	86.6	19214	11641
500	Compact round	26.6	3.4	0.1	2.0	3.15	3.9	93.2	22781	13314

Specification Table 33

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	2.5	0.1	1.2	0.5	2.2	39.3	2474	2002
35	Compact round	7.2	2.5	0.1	1.3	0.5	2.3	42.3	2947	2286
50	Compact round	8.4	2.5	0.1	1.3	0.5	2.4	45.1	3537	2593
70	Compact round	10.0	2.5	0.1	1.4	0.5	2.5	48.9	4351	3030

95	Compact round	11.7	2.5	0.1	1.4	0.5	2.6	52.8	5297	3504
120	Compact round	13.1	2.5	0.1	1.5	0.5	2.8	56.4	6277	4012
150	Compact round	14.6	2.5	0.1	1.6	0.5	2.9	60.0	7373	4541
185	Compact round	16.3	2.5	0.1	1.6	0.5	3.0	63.9	8665	5172
240	Compact round	18.5	2.6	0.1	1.7	0.5	3.2	69.7	10618	6087
300	Compact round	20.7	2.8	0.1	1.8	0.5	3.4	76.3	12836	7173
400	Compact round	23.8	3.0	0.1	2.0	0.8	3.7	86.1	17195	9644
500	Compact round	26.6	3.2	0.1	2.1	0.8	3.9	94.8	20887	11448

Specification Table 34

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
10	Compact round	3.9	3.4	0.1	1.2	0.2	1.9	32.2	1382	1193
16	Compact round	5.0	3.4	0.1	1.2	0.2	2.0	34.8	1722	1420
25	Compact round	6.0	3.4	0.1	1.2	0.5	2.1	38.4	2447	1975
35	Compact round	7.2	3.4	0.1	1.2	0.5	2.2	41.2	2914	2253

50	Compact round	8.4	3.4	0.1	1.3	0.5	2.3	44.1	3426	2482
70	Compact round	10.0	3.4	0.1	1.3	0.5	2.4	47.8	4204	2879
95	Compact round	11.7	3.4	0.1	1.4	0.5	2.6	52.0	5176	3379
120	Compact round	13.1	3.4	0.1	1.5	0.5	2.7	55.5	6099	3829
150	Compact round	14.6	3.4	0.1	1.5	0.5	2.8	58.9	7152	4315
185	Compact round	16.3	3.4	0.1	1.6	0.5	2.9	63.0	8397	4897
240	Compact round	18.5	3.4	0.1	1.7	0.5	3.1	68.3	10290	5751
300	Compact round	20.7	3.4	0.1	1.8	0.5	3.2	73.4	12308	6628
400	Compact round	23.8	3.4	0.1	1.9	0.5	3.5	80.9	15624	8051
500	Compact round	26.6	3.4	0.1	2.0	0.8	3.7	88.7	19733	10266

Specification Table 35

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	3.4	0.12	1.6	19.4	580	423
35	Compact round	7.2	3.4	0.12	1.6	20.6	702	483
50	Compact round	8.4	3.4	0.12	1.7	22.0	878	566
70	Compact round	10.0	3.4	0.12	1.7	23.6	1103	665

95	Compact round	11.7	3.4	0.12	1.8	25.5	1386	791
120	Compact round	13.1	3.4	0.12	1.8	26.9	1649	898
150	Compact round	14.6	3.4	0.12	1.9	28.6	1974	1035
185	Compact round	16.3	3.4	0.12	1.9	30.3	2337	1178
240	Compact round	18.5	3.4	0.12	2.0	32.7	2908	1406
300	Compact round	20.7	3.4	0.12	2.1	35.3	3544	1664
400	Compact round	23.8	3.4	0.12	2.2	38.6	4554	2047
500	Compact round	26.6	3.4	0.12	2.3	42.2	5574	2440
630	Compact round	30.1	3.4	0.12	2.4	45.9	6884	2936
800	Compact round	35.0	3.4	0.12	2.5	51.2	8611	3597
1000	Milliken conductor	39.5	3.4	0.12	2.7	56.3	10655	4369

Specification Table 36

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	3.4	0.12	2.2	38.9	1728	1256
35	Compact round	7.2	3.4	0.12	2.3	41.6	2111	1451
50	Compact round	8.4	3.4	0.12	2.4	44.4	2636	1692
70	Compact round	10.0	3.4	0.12	2.5	48.1	3336	2015

95	Compact round	11.7	3.4	0.12	2.7	52.0	4185	2392
120	Compact round	13.1	3.4	0.12	2.8	55.2	5009	2743
150	Compact round	14.6	3.4	0.12	2.9	58.7	5979	3148
185	Compact round	16.3	3.4	0.12	3.0	62.5	7109	3616
240	Compact round	18.5	3.4	0.12	3.1	67.6	8845	4314
300	Compact round	20.7	3.4	0.12	3.3	73.1	10764	5101
400	Compact round	23.8	3.4	0.12	3.5	80.2	13848	6297
500	Compact round	26.6	3.4	0.12	3.7	87.9	17019	7580

Specification Table 37

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	3.4	0.1	1.3	2.5	2.5	48.0	4175	3703
35	Compact round	7.2	3.4	0.1	1.3	2.5	2.6	50.8	4733	4072
50	Compact round	8.4	3.4	0.1	1.4	2.5	2.7	53.8	5491	4547
70	Compact round	10.0	3.4	0.1	1.5	2.5	2.8	57.6	6446	5124

95	Compact round	11.7	3.4	0.1	1.5	2.5	2.9	61.5	7530	5737
120	Compact round	13.1	3.4	0.1	1.6	2.5	3.0	64.9	8628	6363
150	Compact round	14.6	3.4	0.1	1.6	2.5	3.1	68.3	9794	6963
185	Compact round	16.3	3.4	0.1	1.7	2.5	3.3	72.6	11326	7834
240	Compact round	18.5	3.4	0.1	1.8	3.15	3.5	79.2	14268	9737
300	Compact round	20.7	3.4	0.1	1.9	3.15	3.6	84.8	16641	10978
400	Compact round	23.8	3.4	0.1	2.0	3.15	3.9	92.3	20362	12811
500	Compact round	26.6	3.4	0.1	2.1	3.15	4.1	99.3	24203	14764

Specification Table 38

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	3.4	0.1	1.3	0.5	2.4	43.8	2805	2333
35	Compact round	7.2	3.4	0.1	1.3	0.5	2.4	46.4	3251	2590
50	Compact round	8.4	3.4	0.1	1.4	0.5	2.6	49.6	3902	2958
70	Compact round	10.0	3.4	0.1	1.5	0.5	2.7	53.4	4739	3417

95	Compact round	11.7	3.4	0.1	1.5	0.5	2.8	57.3	5706	3913
120	Compact round	13.1	3.4	0.1	1.6	0.5	2.9	60.7	6681	4415
150	Compact round	14.6	3.4	0.1	1.6	0.5	3.0	64.1	7764	4932
185	Compact round	16.3	3.4	0.1	1.7	0.5	3.1	68.2	9108	5615
240	Compact round	18.5	3.4	0.1	1.8	0.5	3.3	73.5	11046	6515
300	Compact round	20.7	3.4	0.1	1.9	0.5	3.5	79.3	13198	7534
400	Compact round	23.8	3.4	0.1	2.0	0.8	3.7	87.8	17420	9869
500	Compact round	26.6	3.4	0.1	2.1	0.8	3.9	94.8	20958	11520

Specification Table 39

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	4.5	0.12	1.7	21.8	672	515
35	Compact round	7.2	4.5	0.12	1.7	23.0	798	580
50	Compact round	8.4	4.5	0.12	1.7	24.2	970	657
70	Compact round	10.0	4.5	0.12	1.8	26.0	1212	773

95	Compact round	11.7	4.5	0.12	1.9	27.9	1502	907
120	Compact round	13.1	4.5	0.12	1.9	29.3	1771	1020
150	Compact round	14.6	4.5	0.12	2.0	31.0	2103	1164
185	Compact round	16.3	4.5	0.12	2.0	32.7	2472	1314
240	Compact round	18.5	4.5	0.12	2.1	35.1	3054	1551
300	Compact round	20.7	4.5	0.12	2.2	37.7	3700	1820
400	Compact round	23.8	4.5	0.12	2.3	41.0	4723	2216
500	Compact round	26.6	4.5	0.12	2.4	44.6	5752	2618
630	Compact round	30.1	4.5	0.12	2.5	48.3	7082	3134
800	Compact round	35.0	4.5	0.12	2.6	53.6	8830	3816
1000	Milliken conductor	39.5	4.5	0.12	2.7	58.5	10868	4582

Specification Table 40

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	4.5	0.12	2.4	43.9	2008	1536
35	Compact round	7.2	4.5	0.12	2.5	46.7	2411	1750
50	Compact round	8.4	4.5	0.12	2.6	49.5	2953	2009
70	Compact round	10.0	4.5	0.12	2.7	53.2	3672	2351

95	Compact round	11.7	4.5	0.12	2.8	57.1	4544	2751
120	Compact round	13.1	4.5	0.12	2.9	60.3	5387	3122
150	Compact round	14.6	4.5	0.12	3.0	63.7	6378	3546
185	Compact round	16.3	4.5	0.12	3.1	67.6	7531	4038
240	Compact round	18.5	4.5	0.12	3.3	72.7	9297	4767
300	Compact round	20.7	4.5	0.12	3.5	78.2	11249	5586
400	Compact round	23.8	4.5	0.12	3.7	85.3	14376	6825
500	Compact round	26.6	4.5	0.12	3.9	93.0	17592	8153

Specification Table 41

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	4.5	0.1	1.4	2.5	2.7	53.3	4803	4331
35	Compact round	7.2	4.5	0.1	1.4	2.5	2.8	56.1	5379	4719
50	Compact round	8.4	4.5	0.1	1.5	2.5	2.9	59.1	6091	5147
70	Compact round	10.0	4.5	0.1	1.5	2.5	3.0	62.8	7088	5766

95	Compact round	11.7	4.5	0.1	1.6	2.5	3.1	66.8	8239	6446
120	Compact round	13.1	4.5	0.1	1.7	2.5	3.2	70.2	9346	7080
150	Compact round	14.6	4.5	0.1	1.7	3.15	3.4	75.2	11431	8599
185	Compact round	16.3	4.5	0.1	1.8	3.15	3.5	79.2	12953	9461
240	Compact round	18.5	4.5	0.1	1.9	3.15	3.7	84.6	15139	10608
300	Compact round	20.7	4.5	0.1	2.0	3.15	3.8	90.1	17591	11928
400	Compact round	23.8	4.5	0.1	2.1	3.15	4.1	97.6	21504	13953
500	Compact round	26.6	4.5	0.1	2.2	3.15	4.3	105.5	25364	15925

Specification Table 42

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	4.5	0.1	1.4	0.5	2.5	48.9	3227	2755
35	Compact round	7.2	4.5	0.1	1.4	0.5	2.6	51.7	3711	3050
50	Compact round	8.4	4.5	0.1	1.5	0.5	2.7	54.7	4372	3428
70	Compact round	10.0	4.5	0.1	1.5	0.5	2.8	58.4	5208	3886

95	Compact round	11.7	4.5	0.1	1.6	0.5	3.0	62.6	6271	4477
120	Compact round	13.1	4.5	0.1	1.7	0.5	3.1	66.0	7254	4989
150	Compact round	14.6	4.5	0.1	1.7	0.5	3.2	69.5	8420	5588
185	Compact round	16.3	4.5	0.1	1.8	0.5	3.3	73.5	9731	6239
240	Compact round	18.5	4.5	0.1	1.9	0.5	3.5	78.9	11715	7184
300	Compact round	20.7	4.5	0.1	2.0	0.8	3.7	85.8	14774	9111
400	Compact round	23.8	4.5	0.1	2.1	0.8	3.9	93.1	18350	10798
500	Compact round	26.6	4.5	0.1	2.2	0.8	4.1	101.0	21990	12551

Specification Table 43

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
35	Compact round	7.2	5.5	0.12	1.8	25.2	896	677
50	Compact round	8.4	5.5	0.12	1.8	26.4	1071	759
70	Compact round	10.0	5.5	0.12	1.9	28.2	1320	882
95	Compact round	11.7	5.5	0.12	1.9	29.9	1604	1009

120	Compact round	13.1	5.5	0.12	2.0	31.5	1892	1141
150	Compact round	14.6	5.5	0.12	2.0	33.0	2215	1275
185	Compact round	16.3	5.5	0.12	2.1	34.9	2605	1447
240	Compact round	18.5	5.5	0.12	2.2	37.3	3196	1693
300	Compact round	20.7	5.5	0.12	2.2	39.7	3833	1953
400	Compact round	23.8	5.5	0.12	2.3	43.0	4867	2360
500	Compact round	26.6	5.5	0.12	2.4	46.6	5902	2769
630	Compact round	30.1	5.5	0.12	2.5	50.3	7250	3302
800	Compact round	35.0	5.5	0.12	2.7	55.8	9040	4026
1000	Milliken conductor	39.5	5.5	0.12	2.8	60.7	11096	4810

Specification Table 44

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
35	Compact round	7.2	5.5	0.12	2.6	51.3	2708	2047
50	Compact round	8.4	5.5	0.12	2.7	54.1	3264	2320
70	Compact round	10.0	5.5	0.12	2.8	57.8	4004	2682
95	Compact round	11.7	5.5	0.12	3.0	61.7	4897	3103

120	Compact round	13.1	5.5	0.12	3.1	64.9	5757	3492
150	Compact round	14.6	5.5	0.12	3.2	68.3	6767	3935
185	Compact round	16.3	5.5	0.12	3.3	72.2	7941	4448
240	Compact round	18.5	5.5	0.12	3.5	77.3	9735	5204
300	Compact round	20.7	5.5	0.12	3.6	82.8	11716	6053
400	Compact round	23.8	5.5	0.12	3.8	89.9	14882	7331
500	Compact round	26.6	5.5	0.12	4.0	97.6	18140	8701

Specification Table 45

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
35	Compact round	7.2	5.5	0.1	1.5	2.5	2.9	60.8	5934	5273
50	Compact round	8.4	5.5	0.1	1.6	2.5	3.0	63.8	6706	5763
70	Compact round	10.0	5.5	0.1	1.6	2.5	3.1	67.5	7699	6378
95	Compact round	11.7	5.5	0.1	1.7	2.5	3.3	71.7	8932	7139

120	Compact round	13.1	5.5	0.1	1.8	3.15	3.4	76.4	10907	8641
150	Compact round	14.6	5.5	0.1	1.8	3.15	3.5	79.9	12187	9355
185	Compact round	16.3	5.5	0.1	1.9	3.15	3.6	83.9	13742	10250
240	Compact round	18.5	5.5	0.1	2.0	3.15	3.8	89.3	16001	11471
300	Compact round	20.7	5.5	0.1	2.1	3.15	4.0	95.0	18538	12875
400	Compact round	23.8	5.5	0.1	2.2	3.15	4.2	102.3	22314	14762
500	Compact round	26.6	5.5	0.1	2.3	3.15	4.4	110.2	26392	16953

Specification Table 46

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
35	Compact round	7.2	5.5	0.1	1.5	0.5	2.8	56.6	4182	3521
50	Compact round	8.4	5.5	0.1	1.6	0.5	2.9	59.6	4866	3922
70	Compact round	10.0	5.5	0.1	1.6	0.5	3.0	63.3	5738	4417
95	Compact round	11.7	5.5	0.1	1.7	0.5	3.1	67.3	6783	4990

120	Compact round	13.1	5.5	0.1	1.8	0.5	3.2	70.7	7847	5582
150	Compact round	14.6	5.5	0.1	1.8	0.5	3.3	74.2	8972	6141
185	Compact round	16.3	5.5	0.1	1.9	0.5	3.5	78.4	10352	6859
240	Compact round	18.5	5.5	0.1	2.0	0.8	3.7	85.0	13229	8698
300	Compact round	20.7	5.5	0.1	2.1	0.8	3.8	90.5	15523	9860
400	Compact round	23.8	5.5	0.1	2.2	0.8	4.1	98.0	19110	11559
500	Compact round	26.6	5.5	0.1	2.3	0.8	4.3	105.9	22909	13470

Specification Table 47

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
50	Compact round	8.4	8.0	0.12	2.0	31.8	1354	1042
70	Compact round	10.0	8.0	0.12	2.0	33.4	1604	1166
95	Compact round	11.7	8.0	0.12	2.1	35.3	1918	1323
120	Compact round	13.1	8.0	0.12	2.1	36.7	2204	1453

150	Compact round	14.6	8.0	0.12	2.2	38.4	2557	1617
185	Compact round	16.3	8.0	0.12	2.2	40.1	2946	1788
240	Compact round	18.5	8.0	0.12	2.3	42.5	3557	2055
300	Compact round	20.7	8.0	0.12	2.4	45.1	4236	2355
400	Compact round	23.8	8.0	0.12	2.5	48.4	5299	2792
500	Compact round	26.6	8.0	0.12	2.6	52.0	6354	3220
630	Compact round	30.1	8.0	0.12	2.7	55.7	7748	3799
800	Compact round	35.0	8.0	0.12	2.8	61.0	9560	4546
1000	Milliken conductor	39.5	8.0	0.12	3.0	66.1	11687	5401

Specification Table 48

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
50	Compact round	8.4	8.0	0.12	3.1	65.6	4154	3210
70	Compact round	10.0	8.0	0.12	3.2	69.3	4942	3621
95	Compact round	11.7	8.0	0.12	3.3	73.2	5889	4095
120	Compact round	13.1	8.0	0.12	3.5	76.4	6793	4527

150	Compact round	14.6	8.0	0.12	3.6	79.9	7849	5018
185	Compact round	16.3	8.0	0.12	3.7	83.8	9075	5583
240	Compact round	18.5	8.0	0.12	3.8	88.8	10939	6408
300	Compact round	20.7	8.0	0.12	4.0	94.3	12994	7330
400	Compact round	23.8	8.0	0.12	4.2	101.4	16257	8706
500	Compact round	26.6	8.0	0.12	4.4	109.2	19619	10180

Specification Table 49

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
50	Compact round	8.4	8.0	0.1	1.8	3.15	3.5	77.3	9333	8390
70	Compact round	10.0	8.0	0.1	1.8	3.15	3.6	80.9	10396	9075
95	Compact round	11.7	8.0	0.1	1.9	3.15	3.7	85.0	11723	9930
120	Compact round	13.1	8.0	0.1	2.0	3.15	3.8	88.4	12986	10720

150	Compact round	14.6	8.0	0.1	2.0	3.15	3.9	91.8	14220	11388
185	Compact round	16.3	8.0	0.1	2.1	3.15	4.0	95.9	15887	12395
240	Compact round	18.5	8.0	0.1	2.2	3.15	4.2	101.2	18144	13613
300	Compact round	20.7	8.0	0.1	2.3	3.15	4.4	107.0	20761	15097
400	Compact round	23.8	8.0	0.1	2.4	3.15	4.6	114.3	24824	17273
500	Compact round	26.6	8.0	0.1	2.5	3.15	4.8	122.2	29019	19580

Specification Table 50

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
50	Compact round	8.4	8.0	0.1	1.8	0.5	3.3	71.6	6279	5335
70	Compact round	10.0	8.0	0.1	1.8	0.5	3.4	75.2	7189	5868
95	Compact round	11.7	8.0	0.1	1.9	0.5	3.5	79.3	8305	6511
120	Compact round	13.1	8.0	0.1	2.0	0.8	3.7	84.1	10257	7992

150	Compact round	14.6	8.0	0.1	2.0	0.8	3.8	87.5	11435	8603
185	Compact round	16.3	8.0	0.1	2.1	0.8	3.9	91.6	12933	9441
240	Compact round	18.5	8.0	0.1	2.2	0.8	4.1	96.9	15043	10512
300	Compact round	20.7	8.0	0.1	2.3	0.8	4.2	102.5	17412	11749
400	Compact round	23.8	8.0	0.1	2.4	0.8	4.5	110.0	21229	13678
500	Compact round	26.6	8.0	0.1	2.5	0.8	4.7	117.9	25145	15706

Specification Table 51

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
50	Compact round	8.4	9.3	0.12	2.1	34.8	1533	1221
70	Compact round	10.0	9.3	0.12	2.1	36.4	1791	1353
95	Compact round	11.7	9.3	0.12	2.2	38.3	2115	1520
120	Compact round	13.1	9.3	0.12	2.2	39.7	2408	1656

150	Compact round	14.6	9.3	0.12	2.3	41.4	2769	1830
185	Compact round	16.3	9.3	0.12	2.3	43.1	3167	2009
240	Compact round	18.5	9.3	0.12	2.4	45.5	3790	2287
300	Compact round	20.7	9.3	0.12	2.5	48.1	4481	2601
400	Compact round	23.8	9.3	0.12	2.6	51.4	5561	3054
500	Compact round	26.6	9.3	0.12	2.7	57.1	6894	3760
630	Compact round	30.1	9.3	0.12	2.8	60.8	8263	4314
800	Compact round	35.0	9.3	0.12	3.0	66.3	10257	5243
1000	Milliken conductor	39.5	9.3	0.12	3.1	71.2	12369	6083

Specification Table 52

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
50	Compact round	8.4	9.3	0.12	3.3	72.1	4719	3776
70	Compact round	10.0	9.3	0.12	3.4	75.7	5536	4214
95	Compact round	11.7	9.3	0.12	3.5	79.6	6512	4718
120	Compact round	13.1	9.3	0.12	3.7	82.8	7441	5175

150	Compact round	14.6	9.3	0.12	3.8	86.3	8523	5692
185	Compact round	16.3	9.3	0.12	3.9	90.2	9779	6286
240	Compact round	18.5	9.3	0.12	4.0	95.2	11681	7150
300	Compact round	20.7	9.3	0.12	4.2	100.7	13777	8114
400	Compact round	23.8	9.3	0.12	4.4	107.9	17095	9544

Specification Table 53

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
50	Compact round	8.4	9.3	0.1	1.9	3.15	3.7	83.9	10380	9436
70	Compact round	10.0	9.3	0.1	2.0	3.15	3.8	87.8	11519	10197
95	Compact round	11.7	9.3	0.1	2.0	3.15	3.9	91.6	12821	11028
120	Compact round	13.1	9.3	0.1	2.1	3.15	4.0	95.0	14037	11772

150	Compact round	14.6	9.3	0.1	2.2	3.15	4.1	98.7	15552	12720
185	Compact round	16.3	9.3	0.1	2.2	3.15	4.2	102.5	17139	13646
240	Compact round	18.5	9.3	0.1	2.3	3.15	4.4	107.9	19442	14912
300	Compact round	20.7	9.3	0.1	2.4	3.15	4.6	113.6	22224	16561
400	Compact round	23.8	9.3	0.1	2.5	3.15	4.8	120.9	26222	18671

Specification Table 54

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
50	Compact round	8.4	9.3	0.1	1.9	0.5	3.5	78.2	7076	6132
70	Compact round	10.0	9.3	0.1	2.0	0.8	3.6	83.3	8864	7543
95	Compact round	11.7	9.3	0.1	2.0	0.8	3.8	87.3	10094	8301
120	Compact round	13.1	9.3	0.1	2.1	0.8	3.9	90.7	11190	8925

150	Compact round	14.6	9.3	0.1	2.2	0.8	4.0	94.4	12527	9695
185	Compact round	16.3	9.3	0.1	2.2	0.8	4.1	98.2	14003	10511
240	Compact round	18.5	9.3	0.1	2.3	0.8	4.3	103.6	16160	11629
300	Compact round	20.7	9.3	0.1	2.4	0.8	4.4	109.1	18691	13028
400	Compact round	23.8	9.3	0.1	2.5	0.8	4.7	116.6	22446	14895

Specification Table 55

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
50	Compact round	8.4	10.5	0.12	2.2	37.6	1715	1402
70	Compact round	10.0	10.5	0.12	2.2	39.2	1980	1541
95	Compact round	11.7	10.5	0.12	2.3	41.1	2313	1718
120	Compact round	13.1	10.5	0.12	2.3	42.5	2612	1860

150	Compact round	14.6	10.5	0.12	2.4	44.2	2981	2042
185	Compact round	16.3	10.5	0.12	2.4	45.9	3387	2229
240	Compact round	18.5	10.5	0.12	2.5	48.3	4021	2519
300	Compact round	20.7	10.5	0.12	2.6	50.9	4725	2845
400	Compact round	23.8	10.5	0.12	2.7	54.2	5820	3313
500	Compact round	26.6	10.5	0.12	2.8	59.7	7142	4009
630	Compact round	30.1	10.5	0.12	2.9	63.4	8528	4579
800	Compact round	35.0	10.5	0.12	3.1	68.7	10521	5507
1000	Milliken conductor	39.5	10.5	0.12	3.2	73.6	12652	6366

Specification Table 56

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
50	Compact round	8.4	10.5	0.1	3.5	78.0	5289	4345
70	Compact round	10.0	10.5	0.1	3.6	81.7	6131	4809
95	Compact round	11.7	10.5	0.1	3.7	85.6	7134	5341
120	Compact round	13.1	10.5	0.1	3.8	88.8	8086	5821

150	Compact round	14.6	10.5	0.1	3.9	92.3	9193	6361
185	Compact round	16.3	10.5	0.1	4.1	96.1	10476	6983
240	Compact round	18.5	10.5	0.1	4.2	101.2	12414	7883
300	Compact round	20.7	10.5	0.1	4.4	106.7	14548	8885
400	Compact round	23.8	10.5	0.1	4.6	113.8	17917	10365

Specification Table 57

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
50	Compact round	8.4	10.5	0.1	2.0	3.15	3.9	90.1	11529	10585
70	Compact round	10.0	10.5	0.1	2.1	3.15	4.0	94.0	12665	11343
95	Compact round	11.7	10.5	0.1	2.1	3.15	4.1	97.8	13996	12203
120	Compact round	13.1	10.5	0.1	2.2	3.15	4.2	101.2	15279	13013

150	Compact round	14.6	10.5	0.1	2.3	3.15	4.3	104.9	16711	13879
185	Compact round	16.3	10.5	0.1	2.3	3.15	4.4	108.7	18411	14919
240	Compact round	18.5	10.5	0.1	2.4	3.15	4.6	114.1	20854	16323
300	Compact round	20.7	10.5	0.1	2.5	3.15	4.8	119.8	23557	17893
400	Compact round	23.8	10.5	0.1	2.6	3.15	5.0	127.1	27594	20042

Specification Table 58

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
50	Compact round	8.4	10.5	0.1	1.9	0.8	3.7	85.6	8793	7849
70	Compact round	10.0	10.5	0.1	2.0	0.8	3.8	89.5	9817	8495
95	Compact round	11.7	10.5	0.1	2.0	0.8	3.9	93.3	11036	9243
120	Compact round	13.1	10.5	0.1	2.1	0.8	4.1	96.9	12241	9976

150	Compact round	14.6	10.5	0.1	2.2	0.8	4.2	100.6	13558	10726
185	Compact round	16.3	10.5	0.1	2.2	0.8	4.3	104.4	15085	11592
240	Compact round	18.5	10.5	0.1	2.3	0.8	4.5	109.8	17381	12850
300	Compact round	20.7	10.5	0.1	2.4	0.8	4.6	115.3	19830	14167
400	Compact round	23.8	10.5	0.1	2.5	0.8	4.9	122.8	23689	16138
500	Compact round	26.6	10.5	0.1	2.9	0.8	5.2	131.6	26584	17145

Scroll horizontally to review complete specification columns.

Request Full TDS

Structure & Technical Illustration

LV MV Power cable

LV cable: cable voltage level up to 1.8/3kV is suitable for power, household appliances, instruments, small power tools, dynamic lighting and other applications LEAVE MESSAGE SEND E-MAIL

Product image and technical reference.

LV MV Power cable

Product Images

Product Overview

Technical Parameters

Specification Table 1

Specification Table 2

Specification Table 3

Specification Table 4

Specification Table 5

Specification Table 6

Specification Table 7

Specification Table 8

Specification Table 9

Specification Table 10

Specification Table 11

Specification Table 12

Specification Table 13

Specification Table 14

Specification Table 15

Specification Table 16

Specification Table 17

Specification Table 18

Specification Table 19

Specification Table 20

Specification Table 21

Specification Table 22

Specification Table 23

Specification Table 24

Specification Table 25

Specification Table 26

Specification Table 27

Specification Table 28

Specification Table 29

Specification Table 30

Specification Table 31

Specification Table 32

Specification Table 33

Specification Table 34

Specification Table 35

Specification Table 36

Specification Table 37

Specification Table 38

Specification Table 39

Specification Table 40

Specification Table 41

Specification Table 42

Specification Table 43

Specification Table 44

Specification Table 45

Specification Table 46

Specification Table 47

Specification Table 48

Specification Table 49

Specification Table 50

Specification Table 51

Specification Table 52

Specification Table 53

Specification Table 54

Specification Table 55

Specification Table 56

Specification Table 57

Specification Table 58

Structure & Technical Illustration

LV MV Power cable

Related Products

LT &#038; HT POWER CABLE

Flame retardant and fire resistant cable

600/1000 V XLPE insulated, wire armoured with copper conductor BS 5467

600/1000 V XLPE insulated, unarmoured with copper conductor BS 7889 standard

LT & HT POWER CABLE
