Technical Grade

600/1000 V XLPE insulated, unarmoured with copper conductor BS 7889 standard

600/1000 V XLPE insulated, unarmoured with copper conductor BS 7889 standard cables are normally used for the distribution of electrical energy in urban networks, power or switching stations, industrial plants, as well as in switchgears, in applications where there is no risk of mechanical damage. LEAVE MESSAGE SEND E-MAIL

Leave Message Send E-mail

CategoryElectrical Power Cable

SourceQZ Cable Group

Product Images

Product Overview

600/1000 V XLPE insulated, unarmoured with copper conductor BS 7889 standard

600/1000 V XLPE insulated, unarmoured with copper conductor BS 7889 standard cables are normally used for the distribution of electrical energy in urban networks, power or switching stations, industrial plants, as well as in switchgears, in applications where there is no risk of mechanical damage. LEAVE MESSAGE SEND E-MAIL

APPLICATIONS

These cables are intended for fixed installations, indoors and outdoors, in low voltage electricity systems. They are normally used for the distribution of electrical energy in urban networks, power or switching stations, industrial plants, as well as in switchgears, in applications where there is no risk of mechanical damage.

Technical Parameters

Specification Table 1

Nominal cross sectional area	ELECTRICAL DATA									DIMENSIONS AND WEIGHTS
	Max. Conductor Resistance		Continuous Current Ratings							Approx. overall diameter	Approx. overall weight
	DC at 20 °C	AC at 90 °C	Buried direct in ground		In buried ducts		In free air
mm²	Ω / km	Ω / km	(a)	(b)	(c)	(d)	(e)	(f)	(g)
			A	A	A	A	A	A	A	mm	kg / km
1.5	12.1000	15.4287	27 28		20	23	23	23	31	5.8	50

MORE

2.5	7.4100	9.4485	36	36	26	30	30	31	40	6.2	65
4	4.6100	5.8782	46	46	34	38	40	41	53	6.8	85
6	3.0800	3.9274	57	57	42	48	50	52	68	7.3	105
10	1.8300	2.3335	75	75	56	63	68	70	91	7.9	140
16	1.1500	1.4665	97	97	73	82	91	93	121	8.9	205
25	0.7270	0.9273	124	124	96	106	122	125	161	10.5	300
35	0.5240	0.6686	149	149	117	128	150	154	198	11.5	395
50	0.3870	0.4941	175	176	140	153	183	189	240	12.9	520
70	0.2680	0.3428	214	215	174	188	233	240	304	14.7	725
95	0.1930	0.2476	257	256	212	227	288	297	374	16.5	980
120	0.1530	0.1970	291	292	243	260	335	346	434	18.0	1220
150	0.1240	0.1605	327	327	277	295	388	400	499	20.1	1500
185	0.0991	0.1294	369	369	316	336	450	464	577	22.2	1860
240	0.0754	0.1002	425	426	371	393	536	553	688	24.9	2415
300	0.0601	0.0817	479	473	422	447	620	641	797	27.7	2990
400	0.0470	0.0663	539	540	482	512	720	743	928	30.9	3845
500	0.0366	0.0545	604	606	549	587	834	862	1084	34.9	4950
630	0.0283	0.0454	674	673	619	668	955	986	1257	39.3	6295
800	0.0221	0.0390	739	741	688	750	1078	1116	1440	43.6	8090
1000	0.0176	0.0346	807	808	766	841	1234	1276	1674	52.2	10150

Specification Table 2

Nominal cross sectional area		ELECTRICAL DATA					DIMENSIONS AND WEIGHTS
		Max. Conductor Resistance		Continuous Current Ratings			Approx. overall diameter	Approx. overall weight
		DC at 20 °C	AC at 90 °C	Laid in ground	Laid in ducts	Laid in free air
mm²		Ω / km	Ω / km	A	A	A	mm	kg / km
Two Core Cables
1.5	rm	12.1000	15.4287	33	22	28	9.5	130

MORE

2.5	rm	7.4100	9.4485	43	29	36	10.4	165
4	rm	4.6100	5.8783	56	38	48	11.5	215
6	rm	3.0800	3.9274	69	48	61	12.6	275
10	rm	1.8300	2.3336	91	63	82	13.8	365
16	rm	1.1500	1.4667	118	83	110	15.8	520
25	rm	0.7270	0.9275	153	110	149	18.9	775
35	rm	0.5240	0.6688	183	133	183	21.0	1010
50	sm	0.3870	0.4944	206	152	206	21.3	1085
70	sm	0.2680	0.3431	251	188	256	23.3	1490
95	sm	0.1930	0.2481	303	230	319	26.8	2015
120	sm	0.1530	0.1976	345	266	374	30.3	2525
Three Core Cables
1.5	rm	12.1000	15.4287	27	18	23	10.1	150
2.5	rm	7.4100	9.4485	35	24	30	11.0	195
4	rm	4.6100	5.8783	46	31	40	12.1	260
6	rm	3.0800	3.9274	57	39	51	13.4	340
10	rm	1.8300	2.3336	75	53	70	15.1	445
16	rm	1.1500	1.4667	97	69	93	17.3	660
25	rm	0.7270	0.9275	126	92	126	20.6	940
35	sm	0.5240	0.6688	144	105	141	20.0	1210
50	sm	0.3870	0.4944	171	127	173	23.0	1580
70	sm	0.2680	0.3431	209	159	220	26.5	2210
95	sm	0.1930	0.2481	251	193	271	29.9	2970
120	sm	0.1530	0.1976	286	223	317	33.2	3710
Four Core Cables
1.5	rm	12.1000	15.4287	27	18	23	10.8	175
2.5	rm	7.4100	9.4485	35	24	30	11.9	235
4	rm	4.6100	5.8783	46	31	40	13.2	315
6	rm	3.0800	3.9274	57	39	51	14.5	420
10	rm	1.8300	2.3336	75	53	70	16.4	600
16	rm	1.1500	1.4667	97	69	93	18.9	840
25	rm	0.7270	0.9275	126	92	126	22.6	1190
35	sm	0.5240	0.6688	144	105	141	23.0	1535
50	sm	0.3870	0.4944	171	127	173	26.5	2020
70	sm	0.2680	0.3431	209	159	220	30.8	2865
95	sm	0.1930	0.2481	251	193	271	33.5	3890
120	sm	0.1530	0.1976	286	223	317	37.6	4890
Five Core Cables
1.5	rm	12.1000	15.4287	27	18	23	12.1	190
2.5	rm	7.4100	9.4485	35	24	30	13.3	255
4	rm	4.6100	5.8783	46	31	40	14.8	345
6	rm	3.0800	3.9274	57	39	51	16.3	460
10	rm	1.8300	2.3336	75	53	70	17.9	660
16	rm	1.1500	1.4667	97	69	93	20.6	980
25	rm	0.7270	0.9275	126	92	126	24.8	1460
35	sm	0.5240	0.6688	144	105	141	27.1	1915
50	sm	0.3870	0.4944	171	127	173	31.2	2540
70	sm	0.2680	0.3431	209	159	220	35.1	3575
95	sm	0.1930	0.2481	251	193	271	39.3	4850
120	sm	0.1530	0.1976	286	223	317	43.7	6095

Scroll horizontally to review complete specification columns.

Request Full TDS

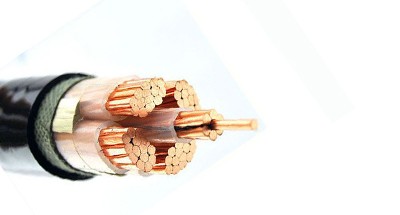

Structure & Technical Illustration
