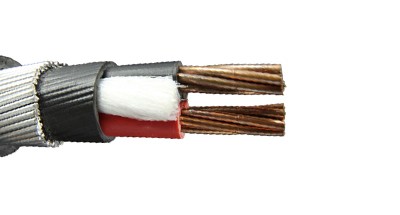

600/1000 V XLPE insulated, wire armoured with copper conductor BS 5467

600/1000 V XLPE insulated, wire armoured with copper conductor BS 5467 are intended for fixed installations, indoors and outdoors, in low voltage electricity systems. LEAVE MESSAGE SEND E-MAIL

Leave Message Send E-mail

CategoryElectrical Power Cable

SourceQZ Cable Group

Product Images

Product Overview

APPLICATIONS

These cables are intended for fixed installations, indoors and outdoors, in low voltage electricity systems. They are normally used for the distribution of electrical energy in urban networks, power or switching stations, industrial plants, as well as in switchgears, in applications where there is a risk of mechanical damage.

Technical Parameters

Specification Table 1

Nominal cross sectional area	ELECTRICAL DATA									DIMENSIONS AND WEIGHTS
	Max. Conductor Resistance		Continuous Current Ratings							Approx. overall diameter	Approx. overall weight
	DC at 20 °C	AC at 90 °C	Buried direct in ground		In buried ducts		In free air
mm²	Ω / km	Ω / km	(a)	(b)	(c)	(d)	(e)	(f)	(g)
			A	A	A	A	A	A	A	mm	kg / km
50	0.3870	0.4939	178	178	152	163	202	206	249	17.0	675

70	0.2680	0.3425	217	215	189	198	253	257	307	19.5	940
95	0.1930	0.2472	257	255	223	234	308	310	366	21.3	1215
120	0.1530	0.1965	290	287	253	263	354	354	413	22.8	1475
150	0.1240	0.1598	323	318	284	291	403	400	461	26.0	1860
185	0.0991	0.1286	361	354	320	322	461	453	512	28.3	2270
240	0.0754	0.0992	411	401	367	360	539	521	579	30.8	2855
300	0.0601	0.0805	456	440	410	391	612	583	637	33.6	3475
400	0.0470	0.0647	494	472	450	410	685	628	672	38.0	4515
500	0.0366	0.0528	539	511	497	439	770	691	729	42.0	5695
630	0.0283	0.0436	582	547	541	465	854	749	783	46.2	7105
800	0.0221	0.0368	599	565	564	481	908	781	829	52.1	9215
1000	0.0176	0.0325	629	595	601	513	996	849	915	60.7	11490

Specification Table 2

Nominal cross sectional area		ELECTRICAL DATA					DIMENSIONS AND WEIGHTS
		Max. Conductor Resistance		Continuous Current Ratings			Approx. overall diameter	Approx. overall weight
		DC at 20 °C	AC at 90 °C	Laid in ground	Laid in ducts	Laid in free air
mm²		Ω / km	Ω / km	A	A	A	mm	kg / km
Two-core Cables
1.5	rm	12.1000	15.4287	33	24	29	11.5	285

2.5	rm	7.4100	9.4485	42	31	38	13.0	360
4	rm	4.6100	5.8783	55	40	51	14.1	430
6	rm	3.0800	3.9274	68	50	64	15.2	510
10	rm	1.8300	2.3336	90	67	87	16.6	635
16	rm	1.1500	1.4667	116	87	114	19.3	935
25	rm	0.7270	0.9275	151	114	154	22.6	1280
35	rm	0.5240	0.6688	180	138	188	26.0	1765
50	sm	0.3870	0.4944	204	158	211	26.5	1875
70	sm	0.2680	0.3431	247	193	259	28.7	2355
95	sm	0.1930	0.2481	296	235	320	33.4	3280
120	sm	0.1530	0.1976	336	270	372	36.9	3915
150	sm	0.1240	0.1612	375	304	421	39.7	4620
185	sm	0.0991	0.1302	424	349	489	45.9	6060
240	sm	0.0754	0.1012	485	403	569	49.8	7360
300	sm	0.0601	0.0829	538	451	639	53.4	8800
400	sm	0.0470	0.0676	598	504	719	56.9	12800
Three-core Cables
1.5	rm	12.1000	15.4287	27	19	24	12.0	315
2.5	rm	7.4100	9.4485	35	25	32	13.6	400
4	rm	4.6100	5.8783	45	33	42	14.7	485
6	rm	3.0800	3.9274	56	41	53	16.0	590
10	rm	1.8300	2.3336	75	56	73	18.6	840
16	rm	1.1500	1.4667	96	72	96	21.0	1090
25	rm	0.7270	0.9275	125	95	130	25.6	1665
35	sm	0.5240	0.6688	142	109	145	25.2	1905
50	sm	0.3870	0.4944	169	132	177	28.2	2390
70	sm	0.2680	0.3431	206	163	222	31.7	3145
95	sm	0.1930	0.2481	246	197	271	36.5	4325
120	sm	0.1530	0.1976	279	226	314	39.8	5195
150	sm	0.1240	0.1612	311	255	356	44.1	6590
185	sm	0.0991	0.1302	349	290	407	48.1	7905
240	sm	0.0754	0.1012	400	336	470	53.2	9830
300	sm	0.0601	0.0829	446	378	541	58.3	11985
400	sm	0.0470	0.0676	499	427	620	65.5	14940
Four Core Cables
1.5	rm	12.1000	15.4287	27	19	24	12.7	350
2.5	rm	7.4100	9.4485	35	25	32	14.5	455
4	rm	4.6100	5.8783	45	33	42	15.8	560
6	rm	3.0800	3.9274	56	41	53	18.0	800
10	rm	1.8300	2.3336	75	56	73	19.9	990
16	rm	1.1500	1.4667	96	72	96	22.6	1305
25	rm	0.7270	0.9275	125	95	130	27.6	2010
35	sm	0.5240	0.6688	142	109	145	28.2	2380
50	sm	0.3870	0.4944	169	132	177	31.9	3005
70	sm	0.2680	0.3431	206	163	222	37.4	4290
95	sm	0.1930	0.2481	246	197	271	40.1	5435
120	sm	0.1530	0.1976	279	226	314	45.4	7000
150	sm	0.1240	0.1612	311	255	356	49.9	8370
185	sm	0.0991	0.1302	349	290	407	54.9	10105
240	sm	0.0754	0.1012	400	336	470	60.9	12680
300	sm	0.0601	0.0829	446	378	541	66.5	15395
400	sm	0.0470	0.0676	499	427	620	76.8	20215

Scroll horizontally to review complete specification columns.

Request Full TDS

Structure & Technical Illustration
