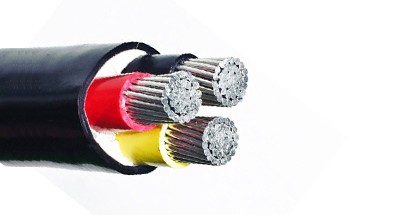

0.6/1 kV Multi-core cables, XLPE insulated, unarmoured with copper and aluminum conductor

Multi-core cables, XLPE insulated cables are intended for fixed installations, indoors and outdoors, in low voltage electricity systems. LEAVE MESSAGE SEND E-MAIL

Leave Message Send E-mail

CategoryElectrical Power Cable

SourceQZ Cable Group

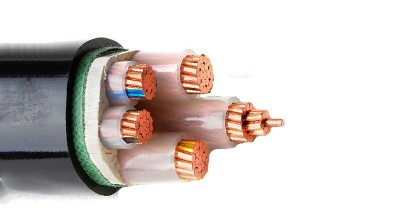

Product Images

Product Overview

APPLICATIONS

These cables are intended for fixed installations, indoors and outdoors, in low voltage electricity systems. They are normally used for the distribution of electrical energy in urban networks, power or switching stations, industrial plants, as well as in switchgears, in applications where there is no risk of mechanical damage.

Technical Parameters

0.6/1 kV CU/XLPE/PVC Multi-core cables, XLPE insulated, unarmoured with copper conductor IEC 60502-1

Nominal cross sectional area		ELECTRICAL DATA					DIMENSIONS AND WEIGHTS
		Max. Conductor Resistance		Continuous Current Ratings			Approx. overall diameter	Approx. overall weight
		DC at 20 °C	AC at 90 °C	Laid in ground	Laid in ducts	Laid in free air
mm²		Ω / km	Ω / km	A	A	A	mm	kg / km
Two Core Cables
1.5	rm	12.1000	15.4287	33	22	28	9.5	130

2.5	rm	7.4100	9.4485	43	29	36	10.4	165
4	rm	4.6100	5.8783	56	38	48	11.5	215
6	rm	3.0800	3.9274	69	48	61	12.6	275
10	rm	1.8300	2.3336	91	63	82	13.8	365
16	rm	1.1500	1.4667	118	83	110	15.8	520
25	rm	0.7270	0.9275	153	110	149	18.9	775
35	rm	0.5240	0.6688	183	133	183	21.0	1010
Three Core Cables
1.5	rm	12.1000	15.4287	27	18	23	10.1	150
2.5	rm	7.4100	9.4485	35	24	30	11.0	195
4	rm	4.6100	5.8783	46	31	40	12.1	260
6	rm	3.0800	3.9274	57	39	51	13.4	340
10	rm	1.8300	2.3336	75	53	70	15.1	445
16	rm	1.1500	1.4667	97	69	93	17.3	660
25	rm	0.7270	0.9275	126	92	126	20.6	940
35	sm	0.5240	0.6688	144	105	141	20.0	1210
50	sm	0.3870	0.4944	171	127	173	23.0	1580
70	sm	0.2680	0.3431	209	159	220	26.5	2210
95	sm	0.1930	0.2481	251	193	271	29.9	2970
120	sm	0.1530	0.1976	286	223	317	33.2	3710
Four Core Cables
1.5	rm	12.1000	15.4287	27	18	23	10.8	175
2.5	rm	7.4100	9.4485	35	24	30	11.9	235
4	rm	4.6100	5.8783	46	31	40	13.2	315
6	rm	3.0800	3.9274	57	39	51	14.5	420
10	rm	1.8300	2.3336	75	53	70	16.4	600
16	rm	1.1500	1.4667	97	69	93	18.9	840
25	rm	0.7270	0.9275	126	92	126	22.6	1190
35	sm	0.5240	0.6688	144	105	141	23.0	1535
50	sm	0.3870	0.4944	171	127	173	26.5	2020
70	sm	0.2680	0.3431	209	159	220	30.8	2865
95	sm	0.1930	0.2481	251	193	271	33.5	3890
120	sm	0.1530	0.1976	286	223	317	37.6	4890
150	sm	0.1240	0.1612	319	252	360	42.1	6010
185	sm	0.0991	0.1302	361	288	416	47.1	7475
240	sm	0.0754	0.1012	417	339	495	52.9	9685
300	sm	0.0601	0.0829	470	386	570	58.5	12100
400	sm	0.0470	0.0676	533	444	665	67.1	15550
500	sm	0.0366	0.0561	598	505	764	74.6	20100
Four Core Cables with Reduced Neutral
25 rm	16 rm	0.7270 / 1.1500	0.9275 / 1.4667	126	92	126	21.7	1115
35 sm	16 rm	0.5240 / 1.1500	0.6688 / 1.4667	144	105	141	23.0	1365
50 sm	25 rm	0.3870 / 0.7270	0.4944 / 0.9275	171	127	173	26.5	1825
70 sm	35 sm	0.2680 / 0.5240	0.3431 / 0.6688	209	159	220	29.2	2545
95 sm	50 sm	0.1930 / 0.3870	0.2481 / 0.4944	251	193	271	33.0	3440
120 sm	70 sm	0.1530 / 0.2680	0.1976 / 0.3431	286	223	317	35.9	4380
150 sm	70 sm	0.1240 / 0.2680	0.1612 / 0.3431	319	252	360	39.7	5260
185 sm	95 sm	0.0991 / 0.1930	0.1302 / 0.2481	361	288	416	44.6	6630
240 sm	120 sm	0.0754 / 0.1530	0.1012 / 0.1976	417	339	495	49.9	8525
300 sm	150 sm	0.0601 / 0.1240	0.0829 / 0.1612	470	386	570	55.2	10630
400 sm	185 sm	0.0470 / 0.0991	0.0676 / 0.1302	533	444	665	63.1	13545
500 sm	240 sm	0.0366 / 0.0754	0.0561 / 0.1012	598	505	764	70.3	17465

0.6/1 kV AL/XLPE/PVC Multi-core cables, XLPE insulated, unarmoured with aluminum conductor IEC 60502-1

Nominal cross sectional area		ELECTRICAL DATA					DIMENSIONS AND WEIGHTS
		Max. Conductor Resistance		Continuous Current Ratings			Approx. overall diameter	Approx. overall weight
		DC at 20 °C	AC at 90 °C	Laid in ground	Laid in ducts	Laid in free air
mm²		Ω / km	Ω / km	A	A	A	mm	kg / km
Two Core Cables
10	rm	3.0800	3.9490	70	49	63	13.8	250

16	rm	1.9100	2.4490	91	64	85	15.8	325
25	rm	1.2000	1.5388	118	85	116	18.4	455
35	rm	0.8680	1.1133	142	103	142	21.0	590
Three Core Cables
10	rm	3.0800	3.9490	58	41	53	15.1	265
16	rm	1.9100	2.4490	75	54	72	17.3	370
25	rm	1.2000	1.5388	98	71	98	20.0	475
35	sm	0.8680	1.1133	111	82	109	20.0	575
50	sm	0.6410	0.8224	133	99	134	23.0	720
70	sm	0.4430	0.5688	163	123	171	26.5	955
95	sm	0.3200	0.4115	195	150	210	29.9	1235
120	sm	0.2530	0.3259	222	173	246	33.2	1525
Four Core Cables
10	rm	3.0800	3.9490	58	41	53	16.4	365
16	rm	1.9100	2.4490	75	54	72	18.9	455
25	rm	1.2000	1.5388	98	71	98	22.0	575
35	sm	0.8680	1.1133	111	82	109	23.0	685
50	sm	0.6410	0.8224	133	99	134	26.5	880
70	sm	0.4430	0.5688	163	123	171	30.8	1190
95	sm	0.3200	0.4115	195	150	210	33.5	1580
120	sm	0.2530	0.3259	222	173	246	37.6	1970
150	sm	0.2060	0.2660	248	196	280	42.1	2410
185	sm	0.1640	0.2126	282	225	325	47.1	2960
240	sm	0.1250	0.1634	327	265	388	52.9	3795
300	sm	0.1000	0.1321	370	304	449	58.5	4635
400	sm	0.0778	0.1047	424	354	530	67.1	6000
500	sm	0.0605	0.0838	484	408	618	74.6	7570
Four Core Cables with Reduced Neutral
50 sm	25 rm	0.6410 / 1.2000	0.8224 / 1.5388	133	99	134	26.5	815
70 sm	35 sm	0.4430 / 0.8680	0.5688 / 1.1133	163	123	171	29.2	1080
95 sm	50 sm	0.3200 / 0.6410	0.4115 / 0.8224	195	150	210	33.0	1420
120 sm	70 sm	0.2530 / 0.4430	0.3259 / 0.5688	222	173	246	35.9	1775
150 sm	70 sm	0.2060 / 0.4430	0.2660 / 0.5688	248	196	280	39.7	2140
185 sm	95 sm	0.1640 / 0.3200	0.2126 / 0.4115	282	225	325	44.6	2670
240 sm	120 sm	0.1250 / 0.2530	0.1634 / 0.3259	327	265	388	49.9	3380
300 sm	150 sm	0.1000 / 0.2060	0.1321 / 0.2660	370	304	449	55.2	4130
400 sm	185 sm	0.0778 / 0.1640	0.1047 / 0.2126	424	354	530	63.1	5255
500 sm	240 sm	0.0605 / 0.1250	0.0838 / 0.1634	484	408	618	70.3	6600

Scroll horizontally to review complete specification columns.

Request Full TDS

Structure & Technical Illustration
