BUILDING WIRE

Application QINGZHOU QINGZHOU THHN or THWN-2 conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. QINGZHOU THHN conductors are designed to be used without application of pulling lubricant. Allowable temperatures […] LEAVE MESSAGE SEND...

Leave Message Send E-mail

CategoryOther Wire Cable

SourceQZ Cable Group

Product Images

Product Overview

Application

QINGZHOU QINGZHOU THHN or THWN-2 conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. QINGZHOU THHN conductors are designed to be used without application of pulling lubricant. Allowable temperatures are as follows: • THHN or T90 Nylon- Dry locations not to exceed 90° C • THWN-2- Wet or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil • TWN75- Wet locations not to exceed 75° C • MTW- Wet locations or when exposed to oil at temperatures not to exceed 60° C or...

Technical Parameters

Specification Table 1

Conductor		Insulation Thickness (mils)	Jacket Thickness (mils)	Nominal O.D. (mils)	Approx. Weight per 1000' (lbs)	Allowable Ampacities+
Size (AWG or kcmil)	Number of Strands	60º C	75º C	90º C	Standard Package
14*	1	15	4	102	15	15	15	15	AC
12*	1	15	4	119	23	20	20	20	AC
10*	1	20	4	150	36	30	30	30	AC

MORE

14*	19	15	4	109	16	15	15	15	AC
12*	19	15	4	128	24	20	20	20	AC
10*	19	20	4	161	38	30	30	30	AC
8	19	30	5	213	63	40	50	55	ABCD
6	19	30	5	249	95	55	65	75	ABCD

Specification Table 2

Conductor		Insulation Thickness (mils)	Jacket Thickness (mils)	Nominal O.D. (mils)	Approx. Weight per 1000' (lbs)	Allowable Ampacities+
Size (AWG or kcmil)	Number of Strands	60º C	75º C	90º C	Standard Package
4	19	40	6	318	152	70	85	100	ABCD
3	19	40	6	346	189	85	100	115	ABCD
2	19	40	6	378	234	95	115	130	ABCD

MORE

1	19	50	7	435	299	110	130	145	ABCD
1/0	19	50	7	474	372	125	150	170	ABCD
2/0	19	50	7	518	462	145	175	195	ABCD
3/0	19	50	7	568	575	165	200	225	ABCD
4/0	19	50	7	624	718	195	230	260	ABCD
250	37	60	8	694	851	215	255	290	ABCD
300	37	60	8	747	1012	240	285	320	ABC
350	37	60	8	797	1174	260	310	350	ABC
400	37	60	8	842	1334	280	335	380	ABC
500	37	60	8	926	1655	320	380	430	ABCD
600	61	70	9	1024	1987	350	420	475	ABC
750	61	70	9	1126	2464	400	475	535	BC
1000	61	70	9	1275	3257	455	545	615	C
* Sizes 14 – 10 AWG available with patented Sim Technology® No Lube® jacket only in QINGZHOU® Wire Barrel configurations.								Standard Package:
+Allowable ampacities shown are for general use as specified by the 2011 Edition of the National Electrical Code Section								A – 2500' Reel
310.15 and 240.4(D). Unless the equipment is marked for use at higher temperatures the conductor shall be limited to the								B – 1000' Reel
following per NEC 110.14(C).								C – 500' Spool
60° C – When terminated to equipment for circuits rated 100 ampers or less or marked for 14 – 1 AWG conductors.								D – 5000' Reel
75° C – When terminated to equipment for circuits rated over 100 ampers or marked for conductors larger than1 AWG.
90° C – THHN dry locations and THWN wet or dry locations for ampacity adjustment purposes using NEC section 310.15.

Scroll horizontally to review complete specification columns.

Request Full TDS

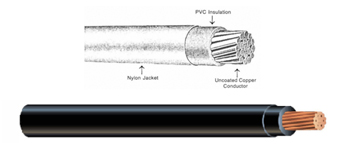

Structure & Technical Illustration
