Application
Generally used in overhead transmission and distribution line construction to mechanically secure components such as conductors to pin insulators. Also used for grounding applications in line construction.
Technical Grade

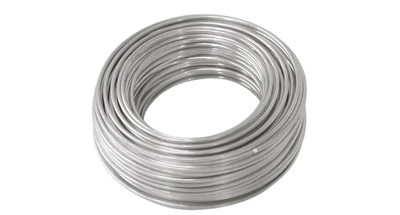

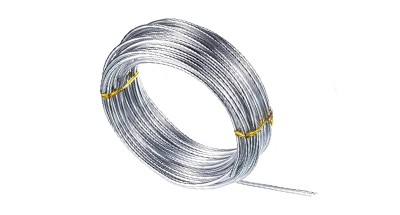

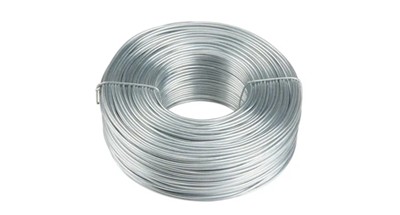

EARTH GROUND WIRE
Ground Wire generally used in overhead transmission and distribution line construction to mechanically secure components such as conductors to pin insulators. Also used for grounding applications in line construction. LEAVE MESSAGE SEND E-MAIL
CategoryOther Wire Cable
SourceQZ Cable Group
Product Images
Product Overview
Technical Parameters
Specification Table 1
| Size (AWG) | Stranding | Diameter (Mils) | Weight Per 1000 Feet (lbs.) | Breaking Strength (lbs.) |
| 6 | Solid | 162.0 | 24.1 | 232 |
| 4 | Solid | 204.3 | 38.4 | 369 |
| 2 | Solid | 257.6 | 61.0 | 586 |
Scroll horizontally to review complete specification columns.
Request Full TDSStructure & Technical Illustration
EARTH GROUND WIRE
Ground Wire generally used in overhead transmission and distribution line construction to mechanically secure components such as conductors to pin insulators. Also used for grounding applications in line construction. LEAVE MESSAGE SEND E-MAIL
Product image and technical reference.
