Applications

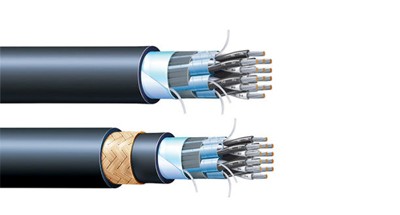

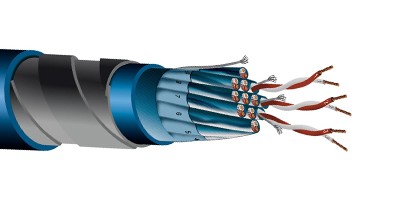

These single pair or triad instrumentation cables are constructed with heat and moisture resistant cross- linked polyethylene (XLPE) with an abrasion, oil, chemical and flame-resistant polyvinyl chloride (PVC), chlorinated polyethylene (CPE) or low smoke, zero halogen (LSZH/XLPO) jacket for use in utility substa- tion or power generation facilities. They are recomended for indoor or outdoor applica- tions in conduit, duct, cable tray or aerial installations and NEC-compliant for continuous operation at 90°C in wet and dry locations.
Features
1.CONDUCTORS Class B, soft drawn, bare copper per ASTM B3 and ASTM B8. 2.INSULATION Heat and moisture resistant, cross-linked polyethylene (XLP) meeting the requirements of NEMA WC57/ICEA S-73-532 and UL 66 & 1277. The insulation is suitable for use in wet or dry locations at a conductor temper- ature not exceeding 90°C for normal operation. 3.CIRCUIT IDENTIfICATION One black and one white insulated single conductor in each pair with printed pair numbers (black/white/red for triads). 4.PAIR ASSEMBLY Two insulated conductors twisted with a stranded tinned copper drain wire per ASTM B33 and wrapped with an aluminum foil/mylar shield and an isolation tape. 5.CABLING Required number of pairs...
