MULTICORE ARMOURED CONTROL CABLE

PVC insulated control cable This product is used for electrical appliance and instrument connecting cables in power distribution equipment with AC rated voltage of 450/750V and below. Its mechanical and physical properties and electrical performance meet the requirements of GB/T9330-2008 "Plastic Insulated Control Cable. Operating characteristics Cable laying temperature: ≥0°C Long-term allowable operating...

Leave Message Send E-mail

CategoryOther Wire Cable

SourceQZ Cable Group

Product Images

Product Overview

Technical Parameters

CU/XLPE/PVC – IEC-60502 Part 1 CU CONDUCTOR, XLPE INSULATED, PVC SHEATHED (UNARMOURED)

Model	Name	Laying Occasion
KVV	Copper core PVC insulated PVC sheathed control cable	Laid indoors, and in cable trenches, pipelines and other fixed occasions.
KVVP	Copper core PVC insulated PVC sheathed braid shield control cable	Laid indoors, and in cable trenches, pipelines and other fixed occasions requiring shielding.
KVVP2	Copper core PVC insulated PVC sheathed braid shield control cable	Laid indoors, and in cable trenches, pipelines and other fixed occasions requiring shielding.
KVV22	Copper core PVC insulated PVC sheathed copper belt shield control cable	Laid indoors, and in cable trenches, pipelines, direct-buring and other fixed places capable of bearing large mechanical force.
KVV32	Copper core PVC insulated PVC sheathed steel tape armored control cable	Laid indoors, and in cable trenches, pipelines, vertical shafts and other fixed places capable of bearing large mechanical force.
KVVR	Copper core PVC insulated PVC sheathed, fine steel wire armored control cable	Laid indoors in occasions requiring movement and flexibility.

KVVRP	Copper core PVC insulated PVC sheathed flexible control cable	Laid indoors in occasions requiring movement, flexibility and shielding.
KVVP2-22	Copper core PVC insulated PVC sheathed copper belt shield steel tape armored control cable	Laid indoors, and in cable trenches, pipelines and other fixed occasions capable of bearing large mechanical force and requiring shielding.

CU/XLPE/PVC – IEC-60502 Part 1 CU CONDUCTOR, XLPE INSULATED, PVC SHEATHED (UNARMOURED)

Model	Rated voltage (V)	Conductor nominal cross sectional area (mm2)
		0.75	1.0	1.5	2.5	4	6	10
KV	450/750	–	2-61				2-14		2-10
KVVP
KVVP2		4-61				4-14		4-10

KVV22	–	7-61		4-61	4-14		4-10
KVVP2-22
KVV32	–	19-61	7-61		4-14		4-10
KVVR	4-61			–		–
KVVRP	4-61		4-48		–		–

CU/XLPE/PVC – IEC-60502 Part 1 CU CONDUCTOR, XLPE INSULATED, PVC SHEATHED (UNARMOURED)

Model	Name	Laying Occasion
KYJV	Copper core XLPE insulated PVC sheathed control cable	Laid indoors, and in cable trenches, pipelines and other fixed occasions.
KYJVP	Copper core XLPE insulated PVC sheathed braid shield control cable	Laid indoors, and in cable trenches, pipelines and other fixed occasions requiring shielding.
KYJVP2	Copper core XLPE insulated PVC sheathed copper belt shield control cable	Laid indoors, and in cable trenches, pipelines and other fixed occasions requiring shielding.
KYJV22	Copper core XLPE insulated PVC sheathed steel tape armored control cable	Laid indoors, and in cable trenches, pipelines, direct-buring and other fixed places capable of bearing large mechanical force.
KYJV32	KYJV32 Copper core XLPE insulated PVC sheathed fine steel wire armored control cable	Laid indoors, and in cable trenches, pipelines, vertical shafts and other fixed places capable of bearing large mechanical force.
KYJVR	Copper core XLPE insulated PVC sheathed flexible control cable	Laid indoors in occasions requiring movement and flexibility.

KYJVRP	Copper core XLPE insulated PVC sheathed braid shielding control cable	Laid indoors in occasions requiring movement, flexibility and shielding.
KYJVP2-22	Copper core XLPE insulated PVC sheathed steel tape shielded steel plate armored control cable	Laid indoors, and in cable trenches, pipelines and other fixed occasions capable of bearing large mechanical force and requiring shielding.

CU/PVC/PVC – IEC-60502 Part 1 CU CONDUCTOR, PVC INSULATED, PVC SHEATHED (UNARMOURED)

Model	Rated voltage (V)	Conductor nominal cross sectional area (mm2)
		0.75	1.0	1.5	2.5	4	6	10
KYJV	45O/750	–	2-61				2-14		2-10
KYJVP
KYJP2		4-61				4-14		4-10

KYJV22	–	7-61		4-61	4-14		4-10
KYJVP2-22
KYJV32	–	19-61	7-61		4-14		4-10
KYJVR	4-61			–		–
KYJVRP	4-61		4-48		–		–

CU/PVC/PVC – IEC-60502 Part 1 COPPER CONDUCTOR, PVC INSULATED, PVC SHEATHED (UNARMOURED)

Nominal Area of Conductor	Nominal Thickness of Insulation	Nominal Thickness of Extruded Bedding	Nominal Diameter of Armour Wire	Nominal Thickness of Outer Sheath	Approx. Overall Diameter	Approx. Cable Weight for CU Cable	Approx. Cable Weight for AL Cable	Packing Length (Standard)
mm²	mm	mm	mm	mm	mm	kg/km	kg/km	mtrs
7	0.6	0.8	0.9	1.4	16.0	435	1000	1000
9	0.6	0.8	1.25	1.5	18.5	645	1000	1000
12	0.6	0.8	1.25	1.5	19.5	740	1000	1000

19	0.6	0.8	1.25	1.6	22.5	975	1000	1000
21	0.6	1.0	1.6	1.7	24.5	1220	1000	1000
27	0.6	1.0	1.6	1.7	27.0	1450	1000	1000
37	0.6	1.0	1.6	1.7	29.5	1740	1000	1000
48	0.6	1.0	1.6	1.8	33.5	2100	500	1000

CU/PVC/PVC – IEC-60502 Part 1 CU CONDUCTOR, PVC INSULATED, PVC SHEATHED (UNARMOURED)

Nominal Area of Conductor	Nominal Thickness of Insulation	Nominal Thickness of Outer Sheath	Approx. Overall Diameter	Approx. Cable Cable Weight	Packing Length (Standard)
mm²	mm	mm	mm	kg/km	kg/km
6	0.7	1.8	13.0	230	1000
7	0.7	1.8	13.0	245	1000
9	0.7	1.8	15.0	315	1000

12	0.7	1.8	17.0	375	1000
19	0.7	1.8	19.0	535	1000
21	0.7	1.8	20.0	585	1000
27	0.7	1.8	23.0	720	1000
37	0.7	1.8	25.0	940	1000
48	0.7	1.8	29.0	1185	1000

Specification Table 7

Nominal Area of Conductor	Nominal Thickness of Insulation	Nominal Thickness of Extruded Bedding	Nominal Diameter of Armour Wire	Nominal Thickness of Outer Sheath	Approx. Overall Diameter	Approx. Cable Weight for CU Cable	Approx. Cable Weight for AL Cable	Packing Length (Standard)
mm²	mm	mm	mm	mm	mm	kg/km	kg/km	mtrs
6	0.7	0.8	0.9	1.4	17.5	515	1000	1000
7	0.7	0.8	0.9	1.4	17.5	540	1000	1000
9	0.7	0.8	1.25	1.6	20.0	795	1000	1000

12	0.7	0.8	1.25	1.6	21.5	930	1000	1000
19	0.7	1.0	1.6	1.7	26.0	1415	1000	1000
21	0.7	1.0	1.6	1.8	27.0	1525	1000	1000
27	0.7	1.0	1.6	1.8	30.0	1815	1000	1000
37	0.7	1.0	1.6	1.8	33.0	2225	500	1000
48	0.7	1.2	2	2.0	38.5	3040	500	1000

Specification Table 8

Nominal Area of Conductor	Nominal Thickness of Insulation	Nominal Thickness of Outer Sheath	Approx. Overall Diameter	Approx. Cable Weight for CU Cable	Approx. Cable Weight for AL Cable	Packing Length (Standard)
mm²	mm	mm	mm	kg/km	kg/km	mtrs
6	0.7	1.8	14.0	305	1000	1000
7	0.7	1.8	14.0	325	1000	1000
9	0.7	1.8	17.0	420	1000	1000

12	0.7	1.8	18.0	510	1000	1000
19	0.7	1.8	21.0	740	1000	1000
21	0.7	1.8	22.0	815	1000	1000
27	0.7	1.8	25.0	1010	1000	1000
37	0.7	1.8	28.0	1330	1000	1000
48	0.7	1.9	32.0	1700	500	1000

Specification Table 9

Nominal Area of Conductor	Nominal Thickness of Insulation	Nominal Thickness of Extruded Bedding	Nominal Diameter of Armour Wire	Nominal Thickness of Outer Sheath	Approx. Overall Diameter	Approx. Cable Weight for CU Cable	Approx. Cable Weight for AL Cable	Packing Length (Standard)
mm²	mm	mm	mm	mm	mm	kg/km	kg/km	mtrs
6	0.7	0.8	1.25	1.5	19.0	770	1000	1000
7	0.7	0.8	1.25	1.5	19	805	1000	1000
9	0.7	1.0	1.6	1.6	23.0	1175	1000	1000

12	0.7	1.0	1.6	1.6	25	1355	1000	1000
19	0.7	1.0	1.6	1.7	28.5	1815	1000	1000
21	0.7	1.0	1.6	1.9	30	1975	1000	1000
27	0.7	1.0	1.6	1.9	33.5	2375	500	1000
37	0.7	1.2	2	2.0	38	3265	500	1000
48	0.7	1.2	2	2.1	43	3990	500	1000

Specification Table 10

Nominal Area of Conductor	Nominal Thickness of Insulation	Nominal Thickness of Outer Sheath	Approx. Overall Diameter	Approx. Cable Weight for CU Cable	Approx. Cable Weight for AL Cable	Packing Length (Standard)
mm²	mm	mm	mm	kg/km	kg/km	mtrs
6	0.7	1.8	16.0	415	1000	1000
7	0.7	1.8	16.0	450	1000	1000
9	0.7	1.8	19.0	580	1000	1000

12	0.7	1.8	20.0	715	1000	1000
19	0.7	1.8	24.0	1050	1000	1000
21	0.7	1.8	25.0	1160	1000	1000
27	0.7	1.8	28.0	1450	1000	1000
37	0.7	1.9	32.0	1930	500	1000
48	0.7	2.1	37.0	2490	500	1000

Specification Table 11

Nominal Area of Conductor	Nominal Thickness of Insulation	Nominal Thickness of Extruded Bedding	Nominal Diameter of Armour Wire	Nominal Thickness of Outer Sheath	Approx. Overall Diameter	Approx. Cable Weight for CU Cable	Approx. Cable Weight for AL Cable	Packing Length (Standard)
mm²	mm	mm	mm	mm	mm	kg/km	kg/km	mtrs
6	0.6	0.8	0.9	1.4	17.5	470	1000	1000
7	0.6	0.8	0.9	1.4	17.5	490	1000	1000
9	0.6	0.8	1.25	1.5	20.0	730	1000	1000

12	0.6	0.8	1.25	1.5	21.5	835	1000	1000
19	0.6	0.8	1.25	1.6	24.5	1105	1000	1000
21	0.6	1.0	1.6	1.7	27.0	1380	1000	1000
27	0.6	1.0	1.6	1.7	29.5	1635	1000	1000
37	0.6	1.0	1.6	1.8	32.5	1995	1000	1000
48	0.6	1.0	1.6	1.9	36.0	2430	500	1000

Specification Table 12

Nominal Area of Conductor	Nominal Thickness of Insulation	Nominal Thickness of Outer Sheath	Approx. Overall Diameter	Approx. Cable Weight for CU Cable	Approx. Cable Weight for AL Cable	Packing Length (Standard)
mm²	mm	mm	mm	kg/km	kg/km	mtrs
6	0.8	1.8	14.5	270	1000	1000
7	0.8	1.8	14.5	285	1000	1000
9	0.8	1.8	16.5	375	1000	1000

12	0.8	1.8	18.0	445	1000	1000
19	0.8	1.8	21.0	640	1000	1000
21	0.8	1.8	22.0	705	1000	1000
27	0.8	1.8	24.5	870	1000	1000
37	0.8	1.8	27.0	1140	1000	1000
48	0.8	1.9	31.0	1460	1000	1000

Specification Table 13

Nominal Area of Conductor	Nominal Thickness of Insulation	Nominal Thickness of Extruded Bedding	Nominal Diameter of Armour Wire	Nominal Thickness of Outer Sheath	Approx. Overall Diameter	Approx. Cable Weight	Packing Length (Standard)
mm²	mm	mm	mm	mm	mm	kg/km	mtrs
6	0.7	0.8	1.25	1.5	19.0	670	1000
7	0.7	0.8	1.25	1.5	19.0	700	1000
9	0.7	0.8	1.25	1.6	21.5	890	1000

12	0.7	0.8	1.25	1.6	23.5	1030	1000
19	0.7	1.0	1.6	1.7	28.0	1575	1000
21	0.7	1.0	1.6	1.8	29.0	1700	1000
27	0.7	1.0	1.6	1.8	32.0	2025	1000
37	0.7	1.0	1.6	1.9	35.5	2525	500
48	0.7	1.2	2.0	2.1	41.0	3445	500

Specification Table 14

Nominal Area of Conductor	Nominal Thickness of Insulation	Nominal Thickness of Outer Sheath	Approx. Overall Diameter	Approx. Cable Weight for CU Cable	Approx. Cable Weight for AL Cable	Packing Length (Standard)
mm²	mm	mm	mm	kg/km	kg/km	mtrs
6	0.8	1.8	15.5	345	1000	1000
7	0.8	1.8	15.5	375	1000	1000
9	0.8	1.8	18.0	495	1000	1000

12	0.8	1.8	20.0	590	1000	1000
19	0.8	1.8	23.0	865	1000	1000
21	0.8	1.8	24.0	955	1000	1000
27	0.8	1.8	27.0	1185	1000	1000
37	0.8	1.9	30.5	1575	1000	1000
48	0.8	2.0	34.5	2020	500	1000

Specification Table 15

Nominal Area of Conductor	Nominal Thickness of Insulation	Nominal Thickness of Extruded Bedding	Nominal Diameter of Armour Wire	Nominal Thickness of Outer Sheath	Approx. Overall Diameter	Approx. Cable Weight	Packing Length (Standard)
mm²	mm	mm	mm	mm	mm	kg/km	mtrs
6	0.8	0.8	1.25	1.6	22.0	915	1000
7	0.8	0.8	1.25	1.6	22.0	960	1000
9	0.8	1.0	1.6	1.7	26.5	1385	1000

12	0.8	1.0	1.6	1.7	28.5	1610	1000
19	0.8	1.0	1.6	1.8	32.5	2160	500
21	0.8	1.2	2.0	2.0	35.5	2645	500
27	0.8	1.2	2.0	2.0	39.5	3150	500
37	0.8	1.2	2.0	2.1	43.5	3930	500
48	0.8	1.2	2.0	2.2	49.0	4825	500

Specification Table 16

Nominal Area of Conductor	Nominal Thickness of Insulation	Nominal Thickness of Outer Sheath	Approx. Overall Diameter	Approx. Cable Weight	Packing Length (Standard)
mm²	mm	mm	mm	kg/km	mtrs
6	1.0	1.8	18.5	510	1000
7	1.0	1.8	18.5	555	1000
9	1.0	1.8	21.5	735	1000

12	1.0	1.8	23.5	885	1000
19	1.0	1.8	27.5	1305	1000
21	1.0	1.8	29.0	1445	1000
27	1.0	2.0	33.0	1830	500
37	1.0	2.1	37.0	2435	500
48	1.0	2.3	42.5	3140	500

Scroll horizontally to review complete specification columns.

Request Full TDS

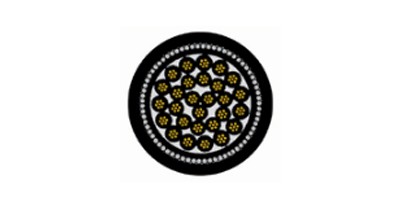

Structure & Technical Illustration
