OUTERDOOR OPTICAL FIBER CABLE

Fiber optic cables for outdoor applications are engineered to withstand the more demanding conditions seen outside, from environmental extremes to mechanical forces. LEAVE MESSAGE SEND E-MAIL

Leave Message Send E-mail

CategoryOptical Fiber Cable

SourceQZ Cable Group

Product Images

Product Overview

Fiber optic cables for outdoor applications are engineered to withstand the more demanding conditions seen outside, from environmental extremes to mechanical forces. LEAVE MESSAGE SEND E-MAIL

Technical Parameters

Specification Table 1

Cable Type (Increased by 2 fibers)	Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm
GYTC8S/A 2 ~ 30	2 ~ 30	9.5 x 19.1	160.0	2000/6000	300/ 1000
GYTC8S/A 32 ~ 36	32 ~ 36	10.1 x 19.7	170.0	2000/6000	300/ 1000
GYTC8S/A 38 ~ 60	38 ~ 60	10.8 x 20.4	180.0	2000/6000	300/ 1000
GYTC8S/A 62 ~ 72	62 ~ 72	12.4 x 22.0	195.0	2000/6000	300/ 1000

GYTC8S/A 74 ~ 96	74 ~ 96	13.1 x 22.7	222.0	2000/6000	300/ 1000
GYTC8S/A 98~ 120	98~ 120	15.7 x 22.3	238.0	2000/6000	300/ 1000
GYTC8S/A 122~ 144	122~ 144	15.5 x 25.1	273.0	2000/6000	300/ 1000

Specification Table 2

Cable Type	Fiber Count	Tubes	Fillers	Cable Diamete mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm
GYFTY53-2~6	2~6	1	7	15.8	230	1000/3000	1000/3000
GYFTY53-8~12	8~12	2	6	15.8	230	1000/3000	1000/3000
GYFTY53-14~18	14~18	3	5	15.8	230	1000/3000	1000/3000
GYFTY53-20~24	20~24	4	4	15.8	230	1000/3000	1000/3000

GYFTY53-26~30	26~30	5	3	15.8	230	1000/3000	1000/3000
GYFTY53-32~36	32~36	6	2	15.8	230	1000/3000	1000/3000
GYFTY53-38~42	38~42	7	1	15.8	230	1000/3000	1000/3000
GYFTY53-44~48	44~48	8	0	15.8	230	1000/3000	1000/3000

Specification Table 3

Cable Count	Out sheath Dia.	Weight	Minimum allowable TensileStrength (N)		Minimum allowable Crush Load (N/100nm)		Minimum Bending Radius(MM)		Storage Temperature
Cable Count	(MM)	(kg)	Short term	Long term	Short term	Long term	Short term	Long term	(°C)
24	10.5	105	1500	600	1000	300	20D	10D	-40+60
36	10.5	105	1500	600	1000	300	20D	10D	-40+60
42	10.5	105	1500	600	1000	300	20D	10D	-40+60
48	10.5	105	1500	600	1000	300	20D	10D	-40+60

60	10.5	105	1500	600	1000	300	20D	10D	-40+60
72	13.5	208	1500	600	1000	300	20D	10D	-40+60
96	13.5	208	1500	600	1000	300	20D	10D	-40+60
144	15.5	295	1500	600	1000	300	20D	10D	-40+60

Specification Table 4

Cable Type (Increased by 2fibers)	Fiber Count	Tubes	Fillers	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static/Dynamic mm
GYFTY 2 ~ 6	2 ~ 6	1	4	11.0	97	600/1500	300/1000	10D/20D
GYFTY 8 ~ 12	8 ~ 12	2	3	11.0	97	600/1500	300/1000	10D/20D
GYFTY 14 ~18	14 ~18	3	2	11.0	97	600/1500	300/1000	10D/20D
GYFTY 20 ~ 24	20 ~ 24	4	1	11.0	97	600/1500	300/1000	10D/20D

GYFTY 26 ~ 30	26 ~ 30	4	1	11.0	97	600/1500	300/1000	10D/20D
GYFTY 32 ~ 36	32 ~ 36	6	0	11.0	97	600/1500	300/1000	10D/20D

Scroll horizontally to review complete specification columns.

Request Full TDS

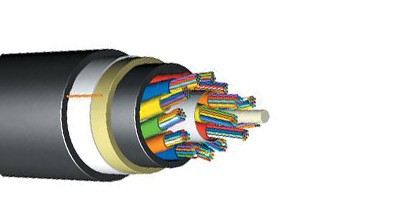

Structure & Technical Illustration

OUTERDOOR OPTICAL FIBER CABLE

Fiber optic cables for outdoor applications are engineered to withstand the more demanding conditions seen outside, from environmental extremes to mechanical forces. LEAVE MESSAGE SEND E-MAIL

Product image and technical reference.
